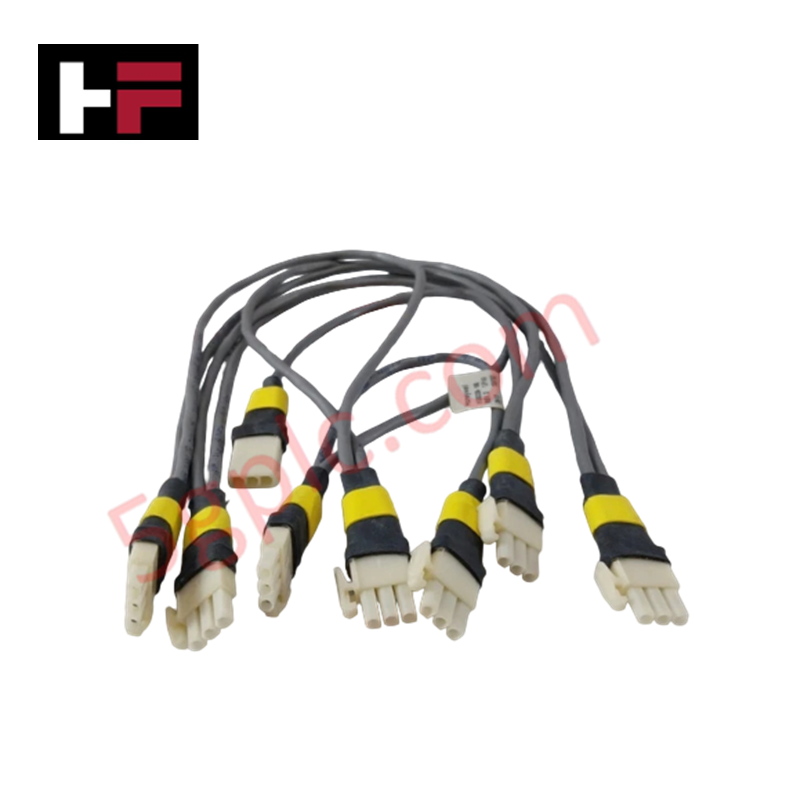

Honeywell 51202329-212 I/O Link CableHoneywell 51202329-212 I/O Link CableHoneywell 51202329-212 I/O Link Cable
Honeywell 51202329-212 I/O Link Cable
Honeywell 51202329-212 I/O Link Cable
Honeywell 51202329-212 I/O Link Cable

Honeywell 51202329-212 I/O Link Cable


Only 10 left - Selling fast

PRODUCT SKU : 51202329-212

PRODUCT TYPE : I/O Cable Assemblies

PRODUCT VENDOR : Honeywell


  • 100% Genuine Parts – Risk-Free 30-Day Returns
  • 1-Year Warranty & Expert Support for Every Order

Product Details

The Honeywell 51202329-212, also cataloged as the 51202329-212 Violet Drop Cable, operates as a dedicated hardware component for high-speed signal routing and physical bus interconnection within Honeywell DCS control system architectures. It provides deterministic physical links using a 9-inch pitch layout to interface drop nodes across a 1.5-meter cable assembly length.

Hardware Specifications

Parameter Specification
Model 51202329-212
Brand Honeywell
Origin USA
Weight 0.35 kg
Dimensions 1.5 m Length (9-inch Pitch)
Operating Temp -40 to 85 deg C
Power Consumption Passive Cable Assembly (0 W)
Cable Type Violet Drop Cable
Primary Application Honeywell DCS Node Interconnections

Cold Junction Compensation & Signal Integrity

The 51202329-212 cable construction incorporates high-density internal shielding to prevent electromagnetic coupling from adjacent power lines and switching equipment within control panels. By maintaining strict signal attenuation limits over its 1.5-meter length, the cable prevents noise from disturbing low-level analog circuits. This electrical stability preserves signal fidelity for field instruments utilizing cold junction compensation (CJC) for thermocouples and transmitters operating on 4-20 mA HART loop protocol networks.

Frequently Asked Questions

Q: Does the 51202329-212 drop cable allow hot-plugging during live controller operation?

A: Disconnection must be executed only when the associated I/O segment is isolated or powered down to prevent signal interruptions or transient bus errors on active channels.

Q: What physical constraint does the 9-inch pitch specification impose during cabinet wiring?

A: The 9-inch pitch defines the fixed spacing between connection drop taps along the trunk length, matching designated mounting intervals on Honeywell I/O termination assemblies.

Field Installation Guidelines

  1. Inspect the violet outer jacket and termination pin contacts for physical damage prior to installation.
  2. Maintain specified minimum bend radius limits during routing to prevent internal conductor strain or shield degradation.
  3. Separate the drop cable from high-voltage AC cables and motor drives to suppress inductive noise coupling.
  4. Ensure all connector retention latches are fully locked into terminal bases to maintain low-resistance physical connections.
