Product Details
Module Performance and Architecture

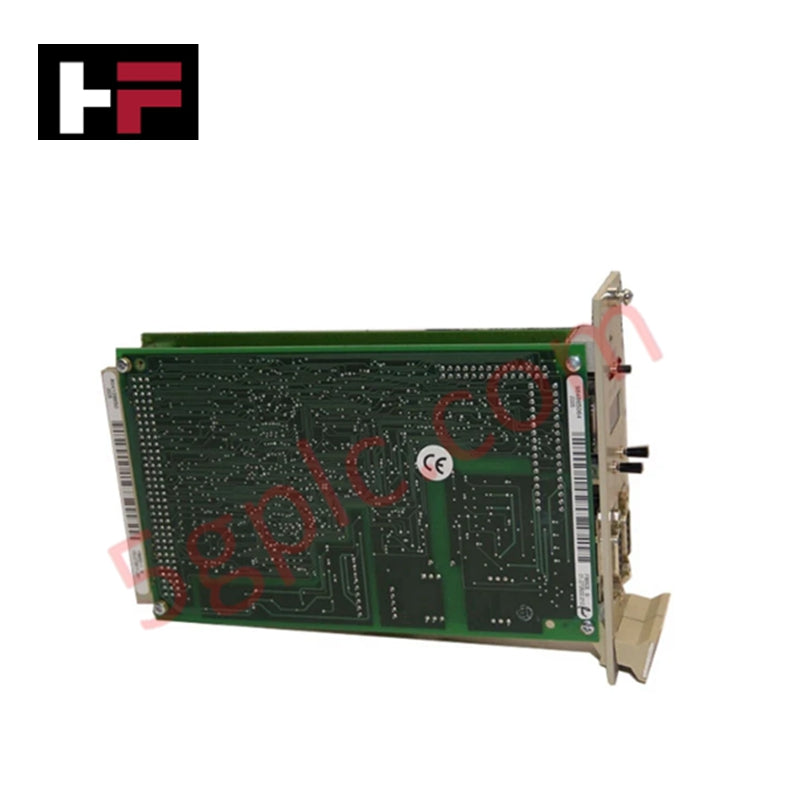

The F 8620/11 (Part Number F-8620/11) is the high-integrity computational core designed for HIMA H41q and H51q safety systems. As a central processing unit, it executes complex safety-instrumented functions (SIF) with a focus on deterministic logic solving. The module is engineered for SIL 3 safety environments, utilizing a 1oo2D internal diagnostic structure to ensure that all processing tasks are validated in real-time before output commands are committed to the field.
Detailed Hardware Specifications
-
Model Identification: F 8620/11
-
Part Number: F-8620/11
-
Microprocessor: Dual 32-bit RISC safety processors
-
Clock Frequency: 50 MHz
-
Memory Capacity: 1 MB Flash EPROM / 1 MB SRAM
-
Logic Execution Time: 0.05 ms per 1K instructions
-
Backplane Supply Voltage: 5.0 VDC ± 5%
-
Current Consumption: 1.2 A at 5 VDC
-
Communication Interface: Integrated system bus for I/O and peer-to-peer links
-
Diagnostics Display: Front-facing alphanumeric LED status array
-
Safety Integrity Level: SIL 3 (IEC 61508) / AK 6 (DIN V 19250)
-
Heat Dissipation: Max 6.0 W
-
Operating Temperature: 0 to +60°C
-
Storage Temperature: -40 to +85°C
-
Physical Weight: 0.5 kg (1.10 lbs)
System Integration and Safety Logic
The F8620/11 handles the central arbitration of all safety data. It operates by cyclically scanning inputs, executing the user-defined logic, and updating outputs via the HIMA system bus. To ensure maximum reliability, the module performs continuous self-tests on its ALUs, registers, and memory sectors. In high-availability configurations, two F 8620/11 modules are utilized in parallel, allowing the system to tolerate a single hardware failure without tripping the process, provided the redundant partner is healthy.
Technical FAQ
What is the maximum program size supported by the F 8620/11?The module supports user programs up to 1 MB in size, which is sufficient for large-scale ESD or BMS applications involving several hundred I/O points.
How does the F 8620/11 handle memory errors?The CPU utilizes Error Correction Code (ECC) and parity checks. If a non-recoverable memory fault is detected, the F-8620/11 triggers a fail-safe shutdown of the CPU to prevent erratic logic execution.
