Product Details

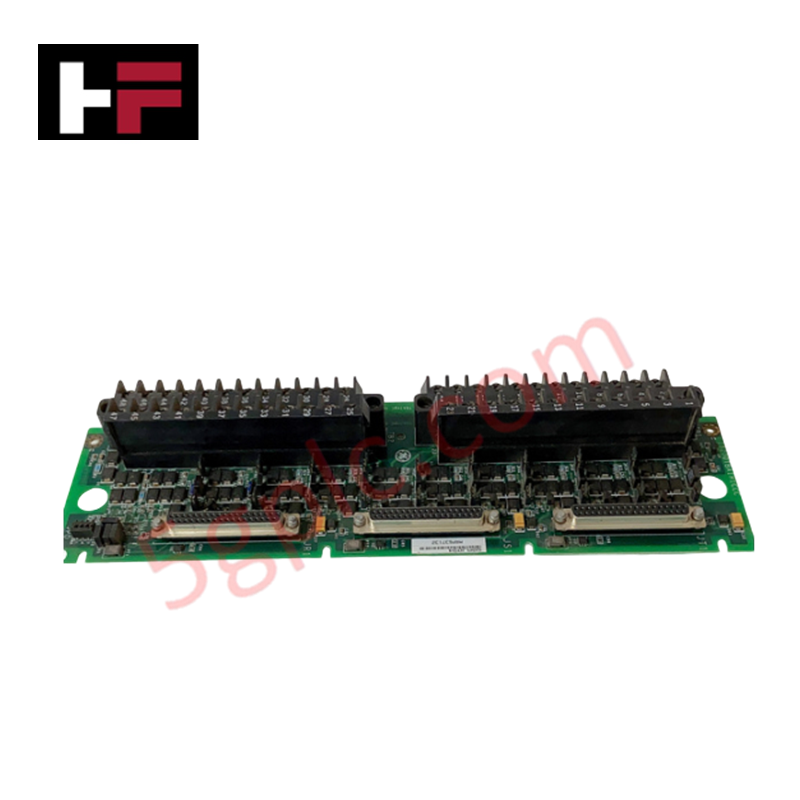

The GE IS200TBAIH2C, also cataloged as the IS200TBAIH2C Analog I/O Terminal Board, operates as a dedicated hardware component for signal termination within Mark VI and Mark VIe turbine control platforms. Configured for integration with the IS220PAIC I/O pack, this terminal board provides direct physical execution of analog input and output signal routing for gas and steam turbine control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200TBAIH2C |
| Brand | GE |
| Origin | USA |
| Dimensions | Standard PCB form factor |
| Operating Temp | Standard industrial ambient range |
| Power Consumption | System-dependent |
| Core Performance | 8 analog I/O configurations; Simplex/TMR support |
Industrial Control and Firmware Compatibility
The IS200TBAIH2C supports a total of eight distinct analog I/O configurations, enabling interface flexibility for diverse field instrumentation. Supported signal types include 0-20 mA and 4-20 mA current inputs, externally powered transmitter inputs, 0-20 mA analog outputs, and +/- 5 VDC or +/- 10 VDC voltage inputs. A specialized 0-200 mA analog output mode is available exclusively when paired with the IS220PAICH2 I/O pack. The board maintains firmware flash compatibility via the host PAIC I/O pack, ensuring that signal processing logic is updated in accordance with the system control software (GEH-6721/GEH-6723). The TBAI module is designed for I/O density scaling in both Simplex and Triple Modular Redundant (TMR) architectures, providing the physical layer for distributed I/O management.
Frequently Asked Questions
Q: Is the IS200TBAIH2C compatible with I/O packs other than the IS220PAIC?
A: No. The H2C revision is specifically engineered for connection to the IS220PAIC analog I/O pack. Compatibility with other packs, such as older YAIC variants, is not supported for this specific hardware revision.
Q: Can this terminal board be deployed in Simplex and TMR configurations?
A: Yes. The IS200TBAIH2C is designed for use in both Simplex and Triple Modular Redundant (TMR) systems. Configuration details for TMR implementation are documented in the GEH-6721 technical manual.
Field Installation Guidelines
- Mounting: Secure the board within the cabinet using the provided mounting points. Ensure proper alignment with the backplane connectors to prevent mechanical stress on the PCB.
- Wiring: Route analog signal cabling through shielded, twisted-pair paths. Connect shields to the dedicated cabinet ground bus to mitigate electromagnetic interference and maintain measurement accuracy for low-level voltage inputs.
- Termination: Ensure all wire terminations are tightened to the specified torque. Avoid over-tightening terminal screws to prevent damage to the terminal block inserts or underlying PCB traces.
- Verification: Prior to system energization, perform a point-to-point continuity check to verify that field device wiring correctly maps to the designated I/O channel terminals. Confirm that the I/O pack is properly seated and locked in position.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
