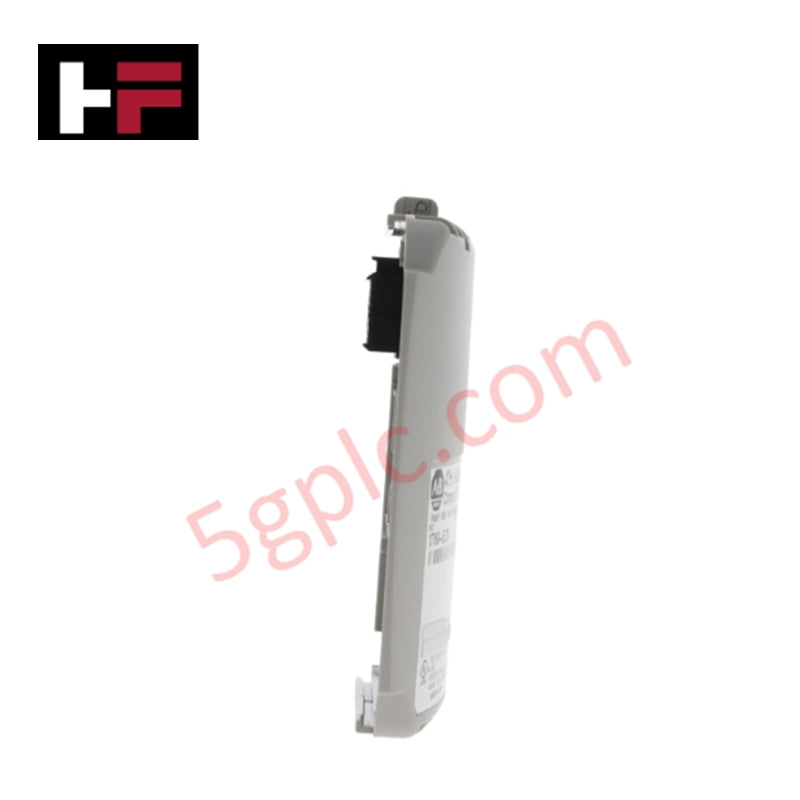

Compact I/O Left End Cap/Terminators Allen-Bradley | 1769-ECL

Product Description:

Overview
The Allen-Bradley 1769-ECL is a left end cap/terminator designed for Compact I/O modules, providing essential termination for communication bus connections. It ensures proper functionality and secure connection of the I/O modules, preventing electrical interference and signal degradation.

Key Specifications:

• Manufacturer: Allen-Bradley

• Product Type: Left End Cap/Terminators

• Model Number: 1769-ECL

• Current Draw:

• 5V DC: 5 mA

• 24V DC: 0 mA

• Operating Altitude: Up to 2000 meters (6562 feet)

• Temperature Rating:

• North American Temp Code: T3C

• IEC Temp Code: None

• Vibration Resistance:

• IEC 60068-2-6 (Test Fc, Operating): 5 g, 10…500 Hz

• Shock Resistance:

• DIN Rail Mount: 30 g

• Panel Mount: 40 g

• DIN Rail Mount: 20 g

• Panel Mount: 30 g

• Operating Shock (IEC 60068-2-27):

• Non-Operating Shock:

• Humidity: 5% to 95% non-condensing

• Emissions: CISPR 11, Group 1, Class A

• Dimensions: 11.8 cm x 8.7 cm x 1.5 cm (approx.)

• Shipping Weight: 2 kg (4.4 lbs)

Features:

• Reliable Termination: Provides proper electrical connection for Compact I/O modules, ensuring optimal performance.

• Durability: Withstands high vibration and shock levels, meeting industrial-grade standards for rugged environments.

• Environmental Adaptability: Suitable for a wide range of operating conditions, with a large temperature and humidity tolerance.

• Compact Design: Small form factor for easy integration into control systems.
