Product Details

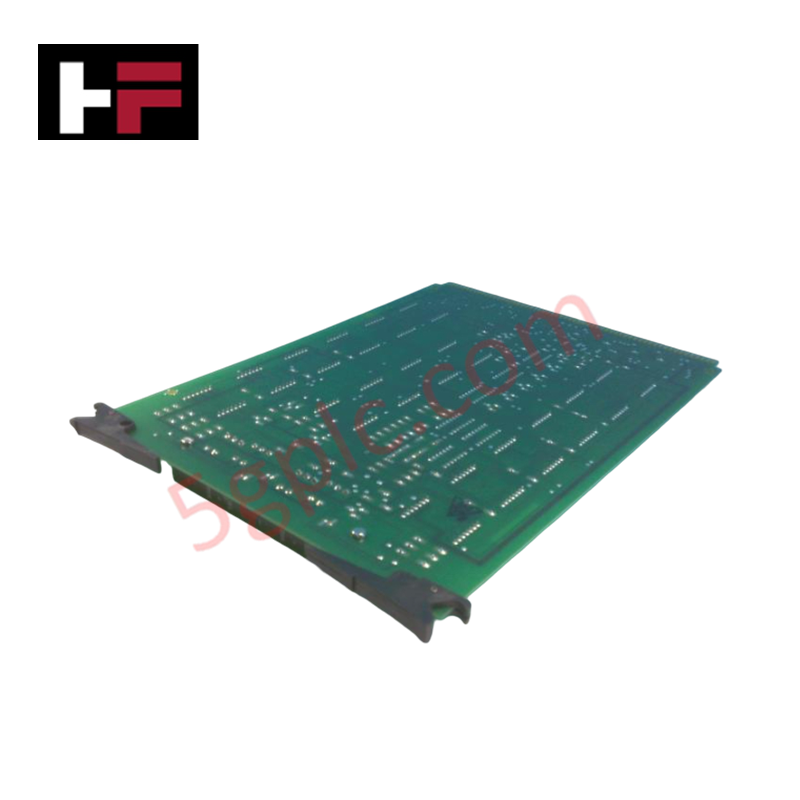

The Honeywell 30735863-001, also cataloged as the 30735863 Switching Circuit Board 94V, operates as a dedicated hardware component for discrete signal loop routing and mechanical relay isolation within Honeywell process network systems. The assembly interfaces directly with automated loop logic outputs to distribute electrical control signals across its integrated multi-relay matrix architecture.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 30735863-001 |
| Brand | Honeywell |
| Origin | United States |
| Weight | 1.00 lbs |
| Dimensions | Standard chassis mounting footprint |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Rack backplane loop dependent |
| Configuration | 16-Relay Matrix Configuration |
| Circuit Board Rating | 94V Rated Flammability Substrate |
Honeywell Channel-to-Channel Isolation Parameters
The hardware architecture of this switching circuit board integrates direct channel-to-channel isolation barriers across all 16 relay paths. This design restricts loop transients and high common-mode voltages to individual channels, suppressing cross-talk across adjacent communication tracks. The isolated relay contacts ensure clean electrical separation between the internal logic processing backplane and the external physical field terminations.
Frequently Asked Questions
Q: Does this switching circuit board support active system hot-swap procedures?
A: No, standard operating procedures dictate that power to the specific chassis segment must be fully terminated before inserting or removing the assembly to prevent transient signal disruptions on neighboring channels.
Q: What is the mechanical layout arrangement of the relay outputs?
A: The board features a fixed 16-relay terminal matrix architecture configured to control discrete external paths based on host rack logic execution signals.
Q: How is the flammability rating of the board substrate certified?
A: The printed circuit board assembly is constructed with a flame-retardant substrate certified to 94V specifications, ensuring high thermal compliance limits during steady-state loading.
Field Installation Guidelines
- Confirm the complete isolation and de-energized state of all field wiring and backplane connectors prior to physical mounting.
- Align the board edges with the predefined chassis tracks, ensuring perpendicular insertion to avoid bending the backplane pins.
- Establish rigid mechanical fastening of the card frames to the enclosure to counteract low-frequency field vibrations.
- Separate low-voltage signal cabling from high-voltage inductive load lines within the layout trays to maintain nominal loop integrity.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
