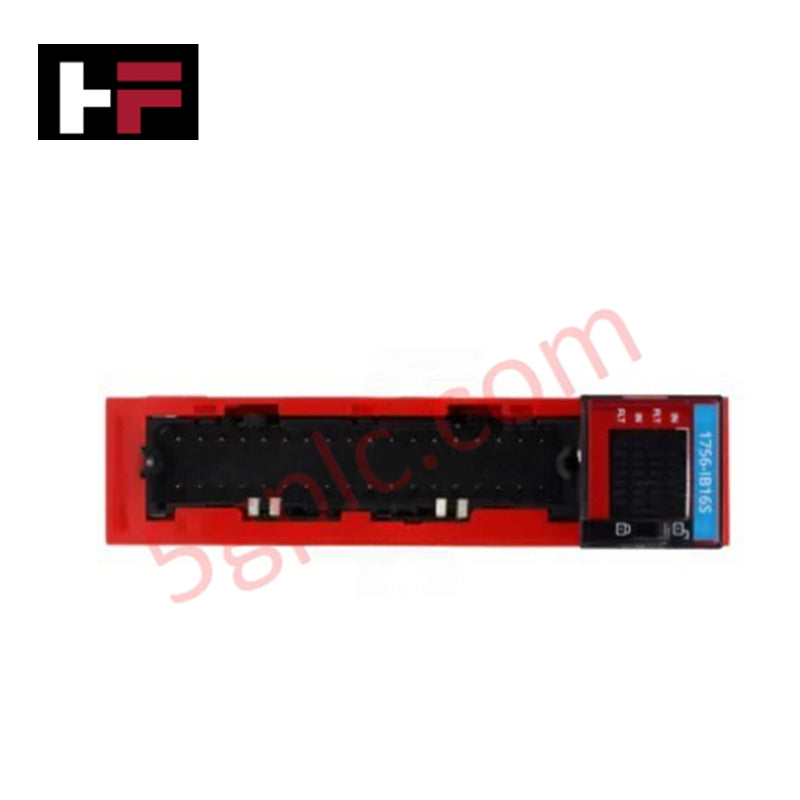

Allen-Bradley 1756-IB16S ControlLogix 16-Channel Safety Input Module

Product Overview

The Allen-Bradley 1756-IB16S serves as a high-density 16-point safety-rated digital input module designed for the ControlLogix platform. It directly monitors critical safety devices, including emergency stop buttons, safety gate switches, and light curtains, providing essential data for personnel and machine protection systems. With per-channel status monitoring and integrated diagnostics, this module ensures rapid fault detection and maintains the integrity of your safety circuit. We supply this item as a 100% Brand New, factory-sealed unit.

Technical Specifications

Engineering Advantages

High-Density Safety Signal Monitoring
The 1756-IB16S maximizes your control cabinet space by consolidating 16 safety-rated inputs into a single module slot. This high channel density is perfect for complex machinery or production lines that require extensive safety guarding, such as multiple interlocked access doors and pull-cord switches, reducing the total number of modules needed in your chassis.

Rigorous Safety and Diagnostic Capabilities
Engineered to meet strict functional safety standards, this module features comprehensive integrated diagnostics. It continuously monitors the health of each input channel, instantly detecting issues like wire breaks or short circuits. The dedicated input status LEDs provide maintenance technicians with immediate visual feedback, significantly speeding up troubleshooting and minimizing machine downtime during safety faults.

Seamless ControlLogix Integration
This module plugs directly into the standard 1756 backplane, allowing you to mix safety and standard I/O within the same ControlLogix rack. It draws power directly from the backplane and interfaces natively with GuardLogix controllers, simplifying your system architecture and eliminating the need for complex external safety wiring or standalone safety relay panels.

FAQs

Q: What type of input configuration does the 1756-IB16S use?
A: The 1756-IB16S utilizes a sinking input configuration. Ensure your field safety devices (such as E-stops and safety switches) are wired to source 24V DC to these inputs.

Q: How many safety inputs does this module provide?
A: This module provides 16 discrete, safety-rated digital input points, allowing you to monitor a large number of safety devices efficiently within a single ControlLogix slot.

Q: What is the operating voltage range for the inputs?
A: While the rated input voltage is 24V DC, the module operates reliably within a wide voltage range of 10 to 32V DC, accommodating standard industrial control power fluctuations.

Q: Can I use this module in a standard ControlLogix chassis?
A: Yes, the 1756-IB16S is designed to mount in any standard 1756 backplane. However, to process the safety signals, it must be used in a system with a GuardLogix safety controller or a compatible safety partner.
