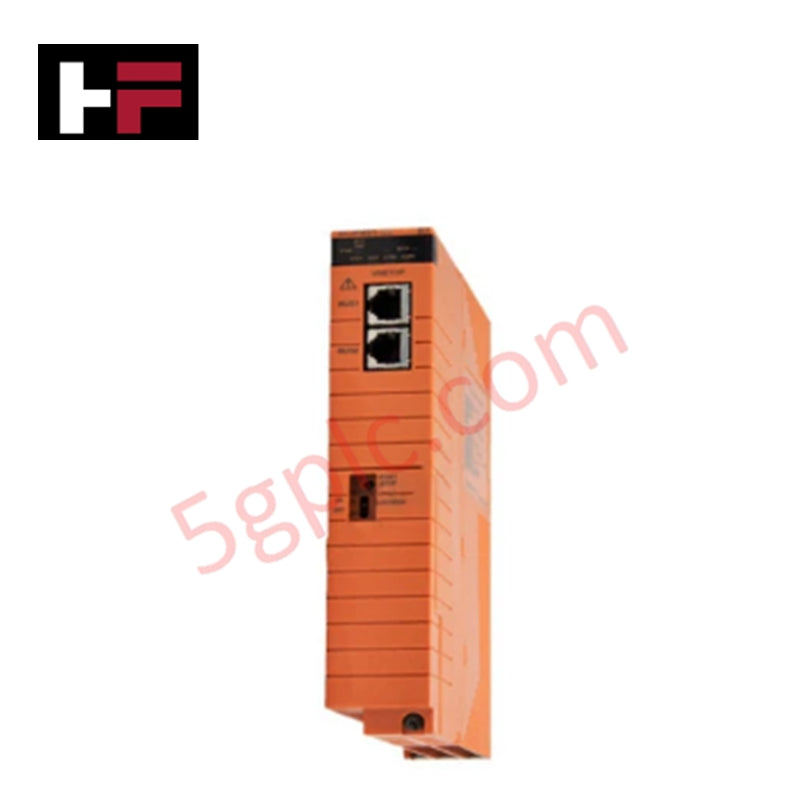

واحد کانکتور Yokogawa S9342FA برای باس ESB

Product Description

The S9342FA serves as a critical hardware interface for Yokogawa ProSafe-RS safety instrumented systems, enabling reliable data bridging across the ESB (Extended Safety Backplane) bus. This unit is specifically engineered to maintain high-integrity communication between safety control stations and remote I/O nodes, ensuring deterministic data transfer in mission-critical environments.

Technical Specifications

• Operating Voltage: 24 VDC nominal

• Power Consumption: 1.5 W maximum

• Communication Protocol: Safety Network Communication Protocol (SNcP)

• Physical Interface: Standard RS-485

• Module Capacity: Support for up to 32 safety-related I/O modules

• Diagnostics: Integrated hardware watchdog timer for continuous SNB10D status monitoring

• Safety Compliance: Certified to IEC 61158 and IEC 61784 standards

• Thermal Range: -20 to 70 °C (-4 to 158 °F)

• Form Factor: 75 x 35 x 23 mm

• Mass: 1 kg

Industrial Applications

The S9342FA is deployed within distributed safety architectures where SIL3-rated protection is mandatory. It is frequently utilized in Emergency Shutdown Systems (ESD), Fire and Gas (F&G) detection networks, and burner management systems (BMS) across the petrochemical and power generation sectors.

Common Integration FAQ

How does the unit handle communication faults?The S9342FA utilizes its internal watchdog timer to detect processing delays or hardware hangs in the safety node. If a failure is detected, the system transitions to a predetermined failsafe state to maintain plant integrity.

Is this unit hot-swappable within the ESB bus?In most ProSafe-RS configurations, bus connectors should be handled according to specific Yokogawa maintenance protocols to avoid interrupting the safety loop. Always refer to your specific system topology documentation before removal.
