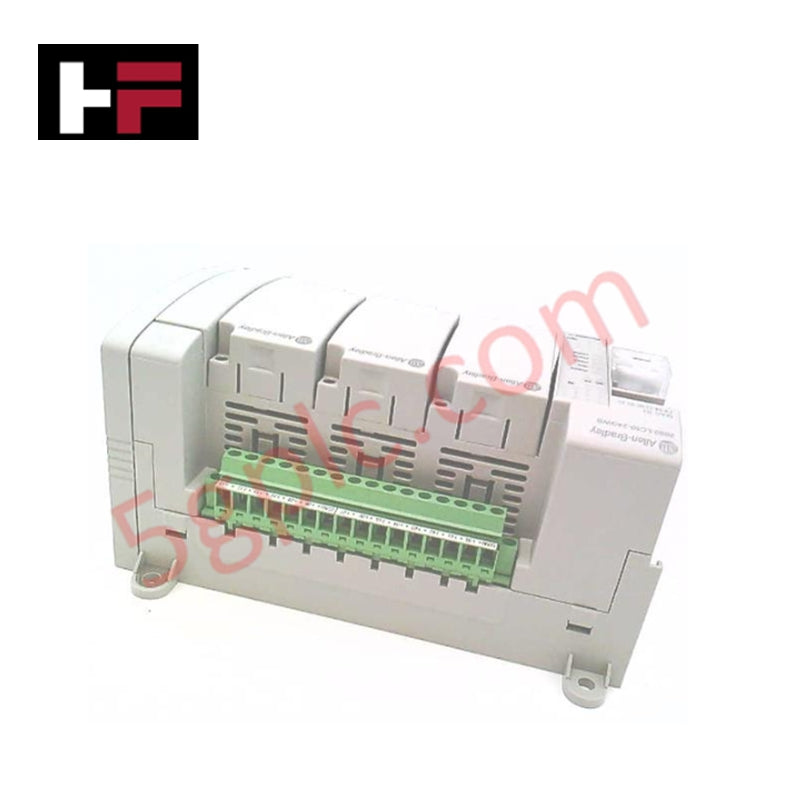

Allen-Bradley 2080-LC70-24QWB Micro870 Ethernet/IP Controller

Product Overview

The Allen-Bradley 2080-LC70-24QWB serves as a powerful and flexible Ethernet/IP controller within the Micro870 product line. Designed for small to mid-sized standalone machines, this programmable logic controller (PLC) features 24 built-in I/O points (14 inputs and 10 relay outputs) and 128 KB of memory. It offers versatile connectivity with native Ethernet/IP, Modbus RTU, and serial communication ports, allowing seamless integration into diverse industrial networks. We supply this item as a 100% Brand New, factory-sealed unit.

Technical Specifications

Engineering Advantages

Advanced Communication and Connectivity
The 2080-LC70-24QWB excels in machine connectivity with its native Ethernet/IP port and built-in RS485/RS232 serial interface. Engineers can easily configure the controller as a Modbus RTU master or slave, allowing direct communication with VFDs, HMIs, and third-party devices without requiring expensive additional communication modules.

Robust Relay Output for Direct Load Control
Featuring 10 built-in relay outputs, this controller can directly switch higher voltage AC or DC loads, such as motor starters, solenoids, and indicator lights. This eliminates the need for external interface relays in many applications, significantly reducing panel space, wiring complexity, and overall bill of materials costs.

Wide Operating Temperature Range
Built to withstand harsh industrial environments, the Micro870 controller operates reliably in ambient temperatures ranging from -20°C to 65°C. This wide thermal tolerance ensures stable performance in unconditioned machine enclosures, outdoor cabinets, and demanding manufacturing processes where standard commercial electronics would fail.

FAQs

Q: How many I/O points are built into the 2080-LC70-24QWB?
A: This controller comes with 24 built-in I/O points, specifically configured as 14 digital inputs and 10 relay outputs, providing a solid foundation for machine control without immediate expansion needs.

Q: What communication protocols does this Micro870 controller support?
A: It features a native Ethernet/IP port for seamless integration with Rockwell Automation ecosystems. Additionally, the RS485/RS232 port supports Modbus RTU master/slave protocols for connecting to a wide variety of third-party industrial devices.

Q: What type of outputs does the 2080-LC70-24QWB use?
A: The controller uses relay outputs. Relays are highly versatile as they can switch both AC and DC loads, making them ideal for controlling devices like contactors, lamps, and small motors directly.

Q: What is the operating temperature range for this PLC?
A: The 2080-LC70-24QWB is rated for an operating temperature range of -20°C to 65°C, ensuring dependable performance in challenging environmental conditions commonly found in industrial settings.
