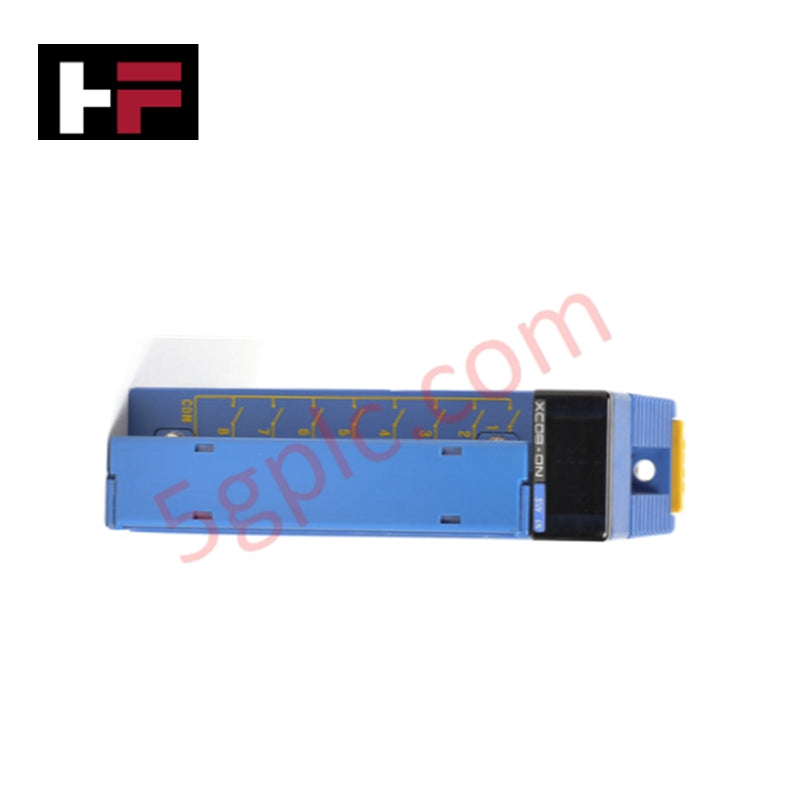

Yokogawa F3YC08-0C FA-M3 Relay Output Module

Product Overview

The Yokogawa F3YC08-0C serves as a high-capacity relay output interface for the FA-M3 multi-controller series. This module provides 8 independent relay output points to drive external loads such as solenoid valves, motor starters, and signaling lamps. We offer this unit as 100% Brand New and Original, ensuring peak mechanical endurance and electrical safety for your automated control systems.

Technical Specifications

The F3YC08-0C utilizes Single Pole Double Throw (SPDT) architecture to provide maximum flexibility for normally open (NO) and normally closed (NC) circuit requirements.

Engineering Advantages

• Versatile SPDT Switching: Unlike standard NO-only modules, the F3YC08-0C provides SPDT contacts for every channel. This allows engineers to control both "power-to-open" and "power-to-close" devices using a single module, simplifying wiring for interlocks and fail-safe hardware configurations.

• Full Galvanic Isolation: The module features robust channel-to-channel isolation. This prevents electrical interference between different output circuits, allowing you to control 250V AC loads and 30V DC signals simultaneously on the same module without risking cross-talk or ground loops.

• High-Current Handling: Each channel reliably switches up to 2 Amperes. This high current rating eliminates the need for interposing relays for many medium-sized solenoids and actuators, reducing both cabinet space requirements and overall system complexity.

• Simplified Field Maintenance: The integrated screw terminal block provides secure, vibration-resistant connections. The clear terminal labeling allows for rapid identification of wiring points during commissioning or onsite troubleshooting.

FAQs

What is the advantage of the SPDT contact type on the F3YC08-0C?

The SPDT (Single Pole Double Throw) configuration gives you access to both Normally Open (NO) and Normally Closed (NC) contacts for every output. This versatility makes it much easier to design safety interlocks or switch between two different signals using one command.

Can I mix AC and DC voltages on the same module?

Yes. Because the F3YC08-0C provides individual channel-to-channel isolation, you can switch 230V AC on one channel and 24V DC on another safely. Always ensure your wiring follows local electrical codes for separating high and low-voltage conductors.

How many operations can I expect from the internal relays?

While mechanical life depends on the specific load type (inductive vs. resistive), using this 100% Brand New module ensures you get the full rated mechanical life from the factory-calibrated relays. For highly inductive loads, we recommend using external surge suppressors to extend contact life.

Is this module a refurbished or used unit?

No. We supply only 100% Brand New Yokogawa hardware. Each F3YC08-0C arrives in its original factory anti-static packaging with an intact serial number to guarantee authenticity and full manufacturer-rated performance.
