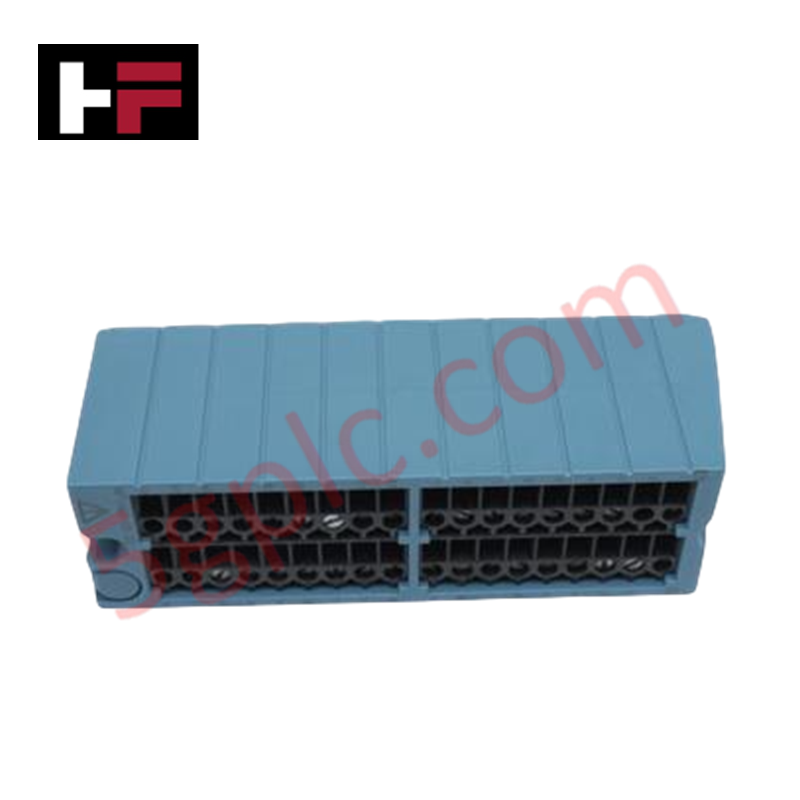

NFTA4S-10 | Yokogawa STARDOM Pressure Clamp Terminal Block

Product Overview

The Yokogawa NFTA4S-10 functions as a high-density, spring-loaded interface component for the STARDOM autonomous controller series. This pressure clamp terminal block facilitates the secure connection between field wiring and 16-channel analog or digital modules. We supply this unit as 100% Brand New and Original, featuring advanced environmental protection to ensure signal integrity in demanding industrial process areas.

Part Number Breakdown

The NFTA4S-10 configuration incorporates specific environmental protection not found in basic models:

Technical Specifications

The NFTA4S-10 provides high-integrity termination for process-critical I/O:

• Manufacturer: Yokogawa Electric Corporation

• Series: STARDOM FCN/FCJ

• Connection Type: Pressure Clamp (Spring-terminal)

• Capacity: Supports 16-Channel I/O Modules

• Protection: ISA Standard G3 Conformal Coating

• Wire Size: Compatible with standard industrial ferrules and solid/stranded wire

• Weight: 0.55 lbs (Approx. 0.25 kg)

• Condition: 100% Brand New Original

Engineering Advantages

The NFTA4S-10 solves specific environmental and mechanical challenges in the field:

• Corrosive Atmosphere Resistance: The "-10" version includes ISA G3 conformal coating. This protective layer prevents circuit board corrosion caused by harsh gases like hydrogen sulfide (H2S), making it the preferred choice for wastewater treatment, paper mills, and petrochemical refineries.

• Maintenance-Free Connections: The pressure clamp mechanism eliminates the risk of "screw creep." Unlike traditional screw terminals that require periodic re-torqueing, the spring-loaded clamp maintains constant pressure, ensuring a gas-tight seal that resists thermal expansion and vibration.

• Reduced MTTR (Mean Time to Repair): The modular design allows technicians to unplug the entire terminal block from the I/O module without disturbing the field wiring. This permits rapid module replacement during maintenance windows, significantly reducing system downtime.

• Anti-Vibration Reliability: The spring-terminal architecture excels in environments with high mechanical vibration (such as near large pumps or compressors). It prevents signal intermittent faults that often plague screw-type connections in heavy industrial settings.

FAQs

Q: How does the NFTA4S-10 differ from the NFTA4S-00?

A: The NFTA4S-10 features G3 conformal coating to protect against corrosive industrial gases, whereas the -00 is the basic type without this extra protection. Both share the same 16-channel pressure clamp functionality.

Q: Can I use this terminal block with both analog and digital STARDOM modules?

A: Yes, as long as the module is a 16-channel version designed for the NFTA4S interface. Always verify the pin-out compatibility in your specific STARDOM hardware manual.

Q: Does the pressure clamp require a special tool for wiring?

A: No special tool is necessary. You can actuate the spring-clamp using a standard small flat-head screwdriver to insert the wire. Once you release the spring, it automatically applies the correct clamping force.
