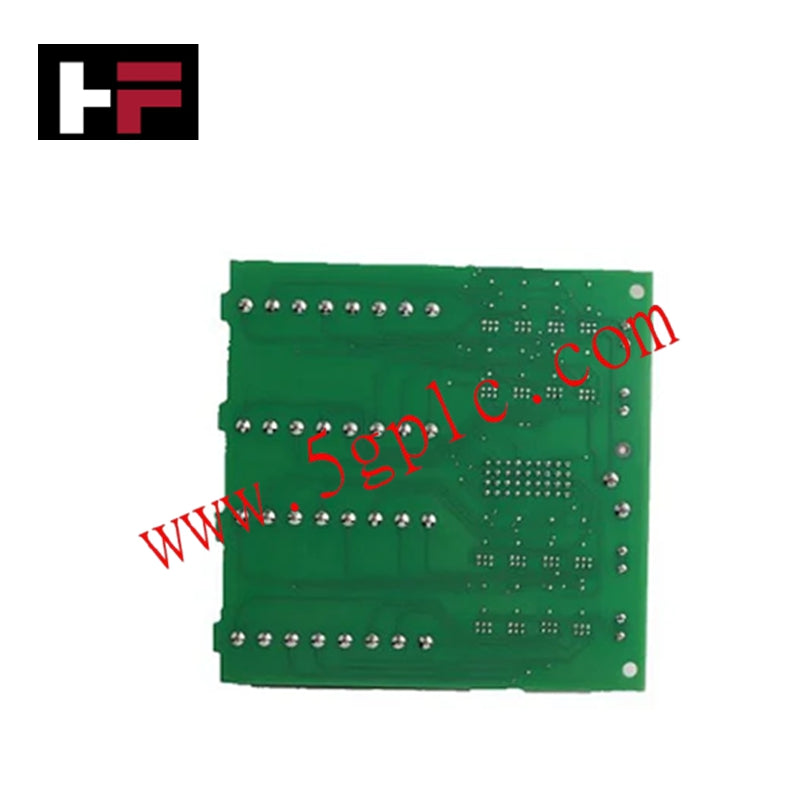

ABB Bailey NTR012-A Actuator and Sensor Termination Unit

Description

The ABB NTR012-A is a specialized termination assembly designed to provide a robust physical interface for actuator control and sensor feedback within the Bailey INFI 90 and Symphony Plus architectures. This unit facilitates the organized connection of field-side signals, ensuring high-fidelity data transmission between heavy-duty process actuators and the system's I/O slave modules. Engineered for industrial reliability, the NTR012-A handles complex signal routing in a centralized terminal block format, which is essential for precise positioning and monitoring in turbine control or large-scale valve automation.

Specifications

• Brand: ABB Bailey

• Model Number: NTR012-A

• Product Series: INFI 90 / Symphony Plus

• Functional Category: Actuator and Sensor Interface

• Mounting Configuration: Standard N-type Termination Mounting Base

• Input/Output Capacity: Multi-channel actuator drive and feedback routing

• Wiring Interface: Industrial-grade screw terminal blocks

• Backplane Connector: 24-pin multi-pin header for slave module cabling

• Operational Temperature: 0 to 70 degrees Celsius

• Relative Humidity: 5% to 95% (non-condensing)

Features

• Integrated Signal Management: Bridges the gap between sensitive control logic and ruggedized field actuators through a dedicated termination pathway.

• Passive Reliability: Built with a passive circuit design that maximizes Mean Time Between Failures (MTBF) by eliminating the need for local active power components.

• Streamlined Wiring Architecture: Consolidates multiple actuator and sensor lines into a single modular footprint, reducing cabinet clutter and potential wiring errors.

• Optimized Maintenance: Supports efficient troubleshooting and module hot-swapping by keeping field cables permanently landed during service procedures.

• Enhanced Signal Integrity: Optimized for low-noise performance, protecting critical sensor feedback loops from electromagnetic interference.

• Industrial Durability: Specifically designed for long-term deployment in the harsh thermal and electrical conditions of power generation and chemical processing plants.
