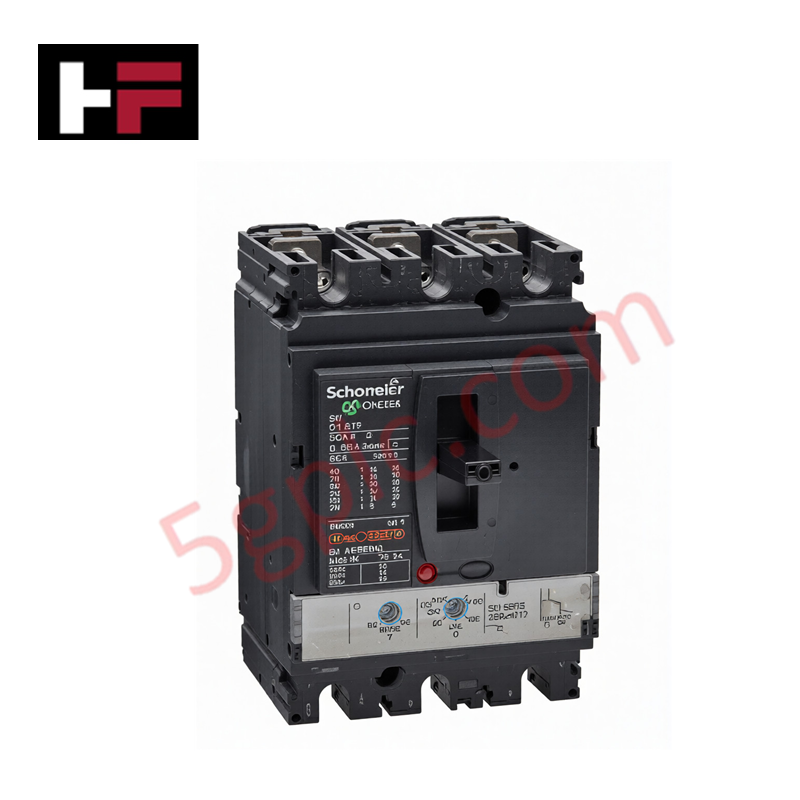

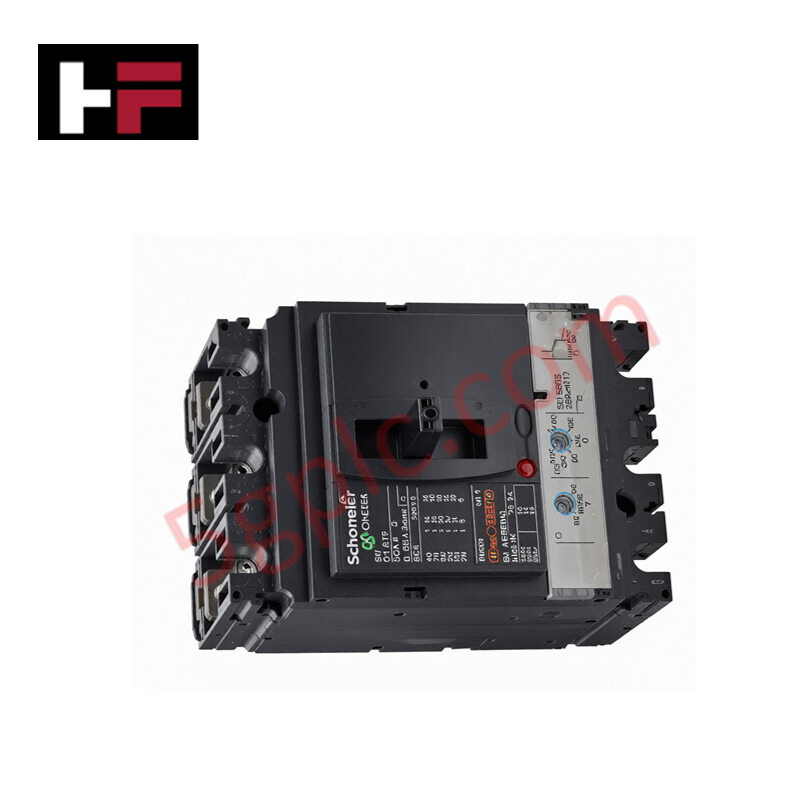

The Schneider NF301NNS7SD5 is a three-pole molded case circuit breaker (MCCB) designed for dependable protection in industrial and commercial electrical systems. It delivers precise overload and short-circuit protection, ensuring efficient power distribution and equipment safety.
As part of the NF300 Series, this breaker supports a rated current of 30A and a breaking capacity of 50kA at 480V AC. Its compact design allows easy installation in control panels or switchboards using either DIN rail or panel mounting.
Built in compliance with IEC/EN 60947-2, the NF301NNS7SD5 meets international safety standards and provides long-term reliability in demanding environments.
Key Features
-
Model Number: NF301NNS7SD5
-
Manufacturer: Schneider Electric
-
Series: NF300
-
Type: Molded Case Circuit Breaker (MCCB)
-
Rated Current: 30A
-
Poles: 3P (Three-pole)
-
Rated Voltage: 480V AC
-
Breaking Capacity: 50kA at 480V AC
-
Mounting Type: DIN rail or panel-mounted
-
Operating Temperature: -25°C to +70°C
-
Dimensions: 110 × 80 × 75 mm
-
Weight: 1.2 kg
-
Compliance Standards: IEC/EN 60947-2
Applications
The NF301NNS7SD5 is suitable for various applications requiring reliable electrical circuit protection, including:
-
Industrial automation and machinery systems
-
Commercial building power distribution
-
Utility and energy management systems
-
Renewable energy and inverter systems
-
Control panels and electrical switchboards
Its compact size, high breaking capacity, and durable design make it ideal for both new installations and system upgrades.
FAQ
Q1: Is the NF301NNS7SD5 an original Schneider product?
A1: Yes, it is an authentic product manufactured by Schneider Electric.
Q2: What is the breaking capacity of this MCCB?
A2: It has a breaking capacity of 50kA at 480V AC.
Q3: How can this circuit breaker be mounted?
A3: It supports both DIN rail and panel mounting options.
Q4: What standards does it meet?
A4: It conforms to IEC/EN 60947-2 international safety standards.
Q5: What environments can it operate in?
A5: It can operate reliably within a temperature range of -25°C to +70°C.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
