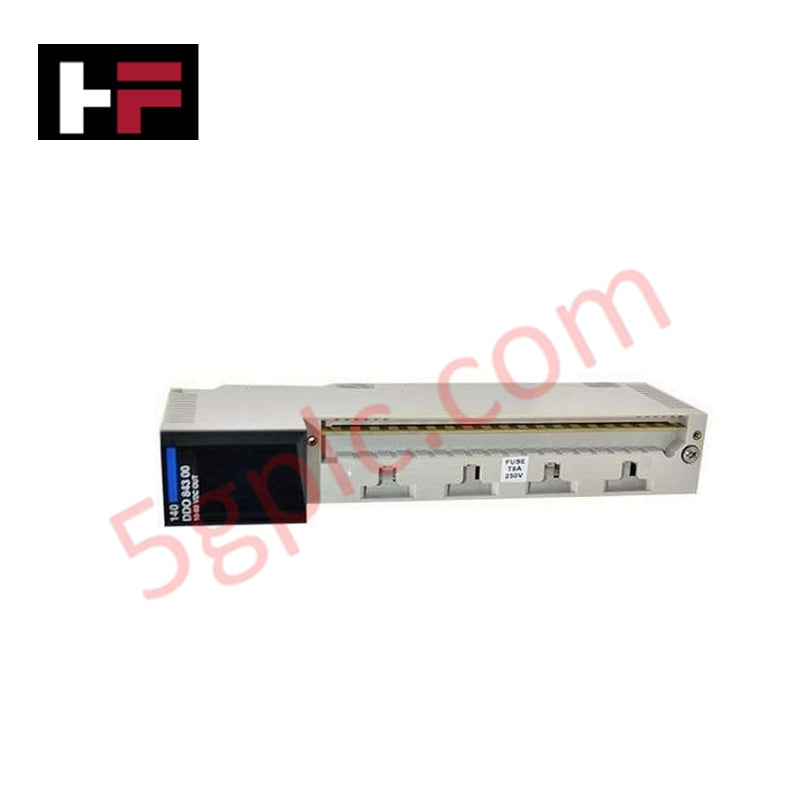

140DDO84300 | Schneider Electric | Discrete Output Module

Overview

The 140DDO84300 is a high-density DC discrete output module designed by Schneider Electric for the Modicon Quantum automation platform. With 96 output points organized into six groups, this module provides efficient signal control for large-scale automation systems. It is engineered for precision, speed, and durability, ensuring stable performance in complex industrial control environments.

The 140DDO84300 delivers reliable output switching at 24 V DC with negative logic (sink configuration), offering flexible compatibility with field devices. Its robust design and optimized power consumption make it an excellent choice for high-channel applications within process automation and discrete manufacturing.

Features

• High output capacity: Provides 96 discrete DC outputs grouped into six sets of 16 channels

• Stable voltage operation: Rated for 24 V DC with a tolerance range of 19.2 V to 30 V

• Negative logic design: Suitable for sink-type output wiring configurations

• Efficient addressing: Requires six output words for system mapping

• Low voltage drop: Less than 0.4 V at 0.5 A for efficient load control

• Compact module format: Standard Quantum size for seamless rack installation

• Optimized power use: Consumes only 250 mA bus current

Specifications

• Model / Part Number: 140DDO84300

• Manufacturer: Schneider Electric

• Series: Modicon Quantum

• Product Type: Discrete Output Module

• Output Voltage: 24 V DC nominal (19.2 V – 30 V limits)

• Logic Type: Negative (sink)

• Number of Outputs: 96 channels (6 × 16 groups)

• Maximum Voltage Drop: < 0.4 V @ 0.5 A

• Addressing Requirement: 6 output words

• Bus Current Draw: 250 mA

• Module Format: Standard

• Net Weight: 0.45 kg

• Origin: France

• Estimated Lead Time: 1 – 10 working days

Applications

The 140DDO84300 module is ideal for industrial automation systems that demand high-density digital output control. Common applications include:

• Process control systems

• Discrete manufacturing lines

• High-speed packaging and assembly equipment

• Industrial motion and sequencing operations

Its compact design and large channel capacity allow engineers to reduce rack space while increasing system output performance.

FAQ

• Q: How many output points are available on the 140DDO84300?
  A: The module supports 96 discrete outputs divided into six groups of 16 channels each.

• Q: What is the supported output voltage range?
  A: It operates between 19.2 V DC and 30 V DC, with a nominal voltage of 24 V DC.

• Q: Does the module use sink or source logic?
  A: It uses negative logic (sink) for DC outputs.

• Q: What platform is it compatible with?
  A: It is designed specifically for the Schneider Modicon Quantum automation platform.
