Product Details
Description

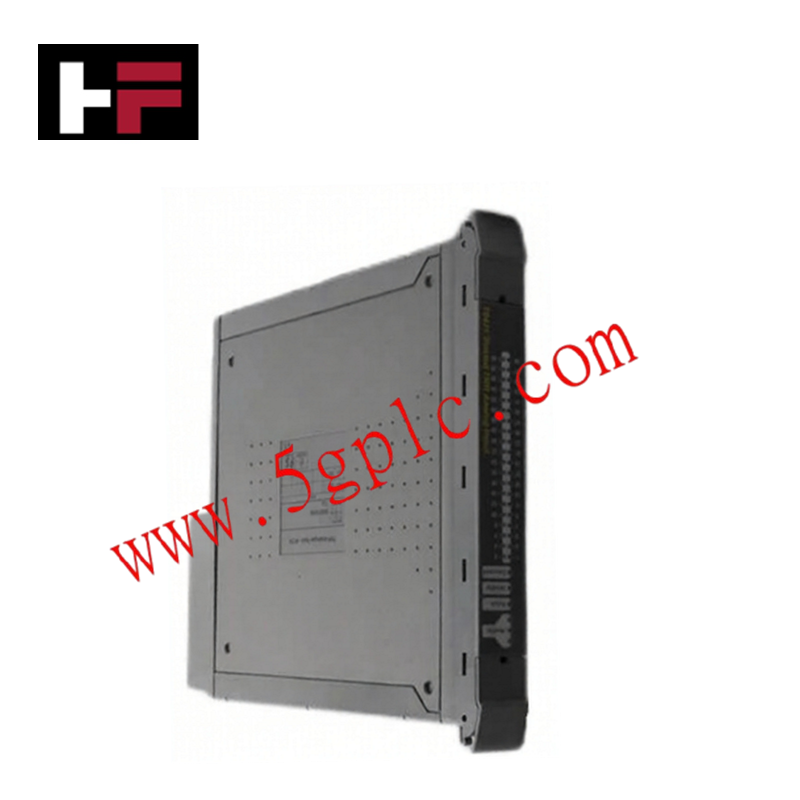

The ICS Triplex T7411F is a high-density digital input module designed for use within the Planet safety system. It provides 40 triplicated channels for monitoring critical field sensors and switches, utilizing a fault-tolerant architecture to ensure maximum process availability and safety integrity in harsh industrial environments.
Specifications
-
Manufacturer: Rockwell Automation (ICS Triplex).
-
Country of Origin: United Kingdom.
-
Model Number: T7411F.
-
Input Channels: 40 points, triplicated.
-
Nominal Input Voltage: 24 VDC.
-
Input Range: 18 VDC to 32 VDC.
-
Physical Weight: Approximately 1.4 kg (3.1 lbs).
-
Dimensions: 10.5" x 1.2" x 7.8" (266 mm x 31 mm x 198 mm).
-
Power Dissipation: 10 Watts nominal.
-
Operating Temperature: -5°C to +60°C.
-
Safety Rating: TÜV approved for SIL3 safety loops.
Features
-
Triple Modular Redundancy: Integrates three independent input paths with hardware voting to provide continuous operation despite single component failures.
-
Field Wiring Supervision: Detects open-circuit and short-circuit conditions on the field side to ensure the integrity of safety-critical loops.
-
High-Resolution Time Stamping: Supports Sequence of Events (SOE) recording to allow for precise post-trip analysis and troubleshooting.
-
Live Module Replacement: Features hot-swap capability, allowing maintenance personnel to replace modules without powering down the safety system.
-
Advanced Internal Diagnostics: Conducts continuous automated self-tests of the input circuitry, memory, and backplane communication links.
-
Local Status Reporting: Provides front-panel LED indicators for channel status, module health, and detected field faults for rapid inspection.
