Product Details

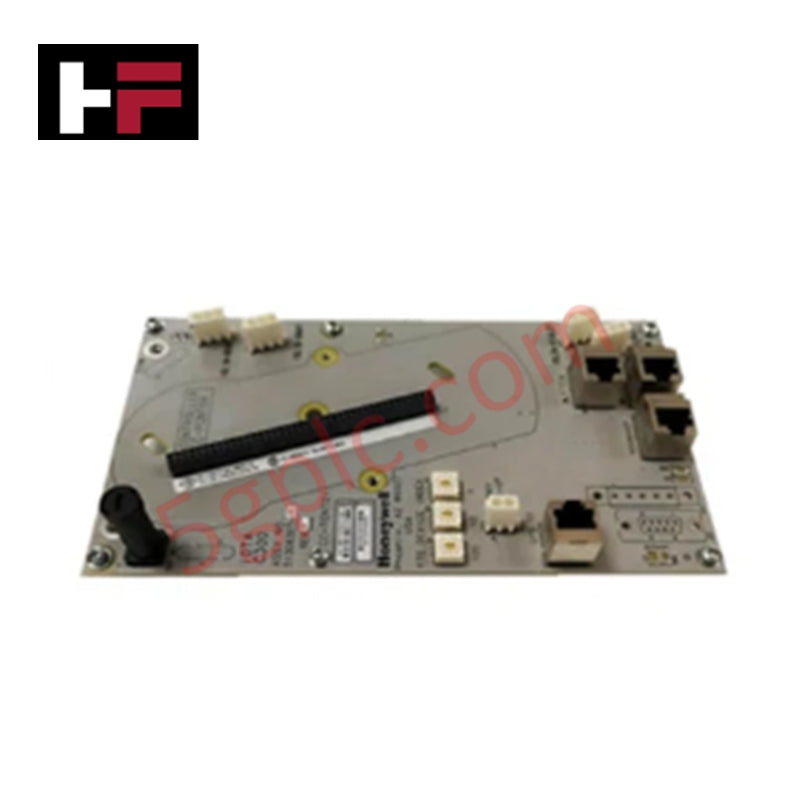

Configured for field device interfacing in C300 controller networks, the Honeywell DC-TCNT01 (51307591-175) I/O Termination Assembly (IOTA) provides direct physical/electrical execution of signal termination. The module facilitates stable communication between field instrumentation and the controller backplane, supporting nominal 24 V DC operation within industrial process control and data acquisition architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DC-TCNT01-51307591-175 |
| Brand | Honeywell |
| Dimensions | Compact rack-mount format |
| Operating Temp | Consult C300 system manual |
| Power Consumption | Dependent on host I/O load |
| Series | C300 Controller / IOTA |
4-20 mA HART Loop Protocol
The DC-TCNT01 assembly is engineered to maintain signal integrity for 4-20 mA HART loop protocol connectivity. It serves as the physical termination point where analog process variables are managed before being routed to the C300 controller. The assembly is designed to minimize impedance mismatches and electrical noise, ensuring consistent HART digital signal superposition on the analog current loop. Proper termination within this assembly is mandatory to prevent data packet loss during bidirectional device configuration and diagnostic parameter polling.
Frequently Asked Questions
Q: Does the DC-TCNT01 assembly support field-level hot-swapping?
A: No. Do not attempt to remove or install this termination assembly while the controller or the field loop is energized. All power must be removed to prevent electrical transients from affecting the controller backplane or the connected instrumentation.
Q: How should the shield of the field cable be terminated at this assembly?
A: Use the provided grounding points on the IOTA chassis. Ensure that cable shields are bonded to a low-impedance earth ground to maintain the assembly's immunity to electromagnetic interference and to satisfy loop grounding requirements.
Field Installation Guidelines
- Physical Mounting: Secure the assembly to the designated cabinet mounting rail. Verify that the IOTA is fully seated against the controller backplane or cable interface to ensure stable electrical continuity.
- Wiring Practices: Use shielded twisted-pair cabling for all analog inputs. Segregate signal wiring from high-voltage AC circuits or motor drive power cables to avoid inductive crosstalk.
- Terminal Integrity: Tighten all terminal screws to the specified torque setting. Avoid over-tightening, which can compromise the structural integrity of the terminal block, or under-tightening, which may cause high-resistance intermittent connections.
- Environmental Sealing: Ensure the cabinet is properly sealed if the installation is in an area with high particulate concentration, as the open terminal design of the IOTA is susceptible to conductive dust accumulation over time.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
