Product Description

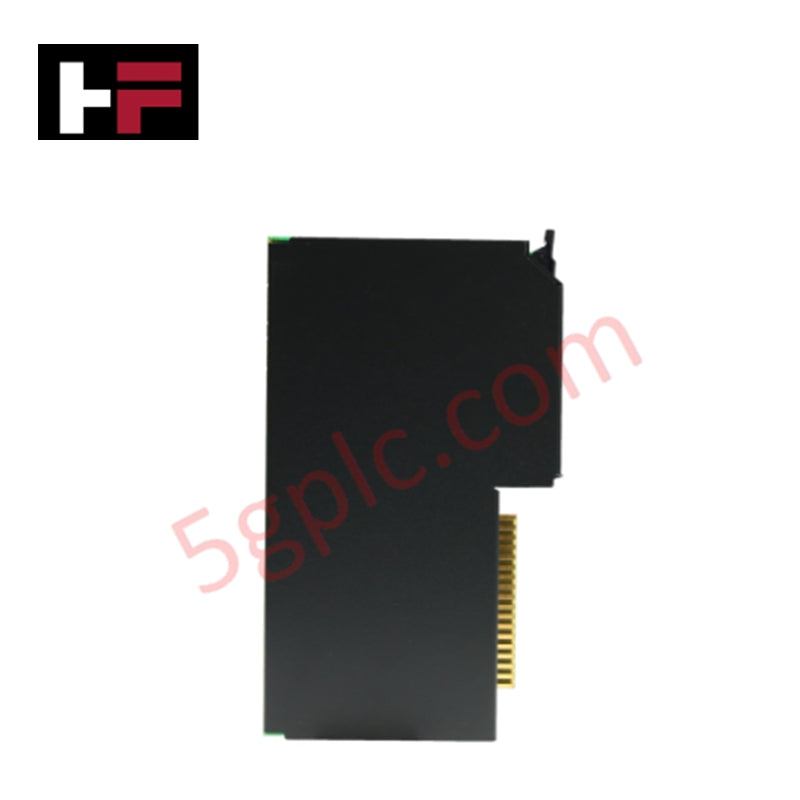

The 1771-IXE module by Allen-Bradley provides precise thermocouple and millivolt signal acquisition for PLC-5 systems. It supports 8 input channels, configurable for the same type or two different types, and delivers high-resolution 15-bit measurement with fast 50 ms update per 8 channels. Ideal for temperature monitoring and low-voltage sensor applications in industrial automation.
Technical Specifications
-
Manufacturer: Allen-Bradley
-
Model Number: 1771-IXE
-
Product Type: Thermocouple / Millivolt Input Module
-
Series: PLC-5
-
Number of Inputs: 8 (configurable as 8 same-type or 4 + 4 of different types)
-
Thermocouple Types Supported: E, J, K, T, R, S
-
Voltage Range: ±99.99 mV (Thermocouple Types); ±100 mV (Resistance Inputs)
-
Cold Junction Compensation: 0–60°C
-
Backplane Current: 750 mA
-
Data Format: 4-Digit BCD, 2's Complement, Signed Magnitude
-
Resolution: 1°C / 1°F
-
Processor Compatibility: Any A-B processor using 1771 I/O with Block Transfer
-
Model Status: Earlier Model
-
Calibration: Auto-Calibration (offset & gain)
-
Typical DC Signal Delay (Off): 50 ms
-
Typical AC Signal Delay (Off): 45 ±15 ms
-
Mounting Type: Rack-Mountable
-
Chassis Compatibility: Any 1771 I/O Chassis
-
Number of I/O: 8 Floating Differential
-
Weight: 1.0 lbs (0.45 kg)
Key Features
-
High-precision thermocouple and mV signal input
-
Auto-calibration for offset and gain
-
Fast 50 ms per 8-channel update rate
-
Compatible with all PLC-5 processors and standard 1771 I/O chassis
Applications
-
Temperature monitoring and control in industrial systems
-
Low-voltage signal acquisition from thermocouples or millivolt sensors
-
Integration with PLC-5 I/O networks for process automation
