Product Details

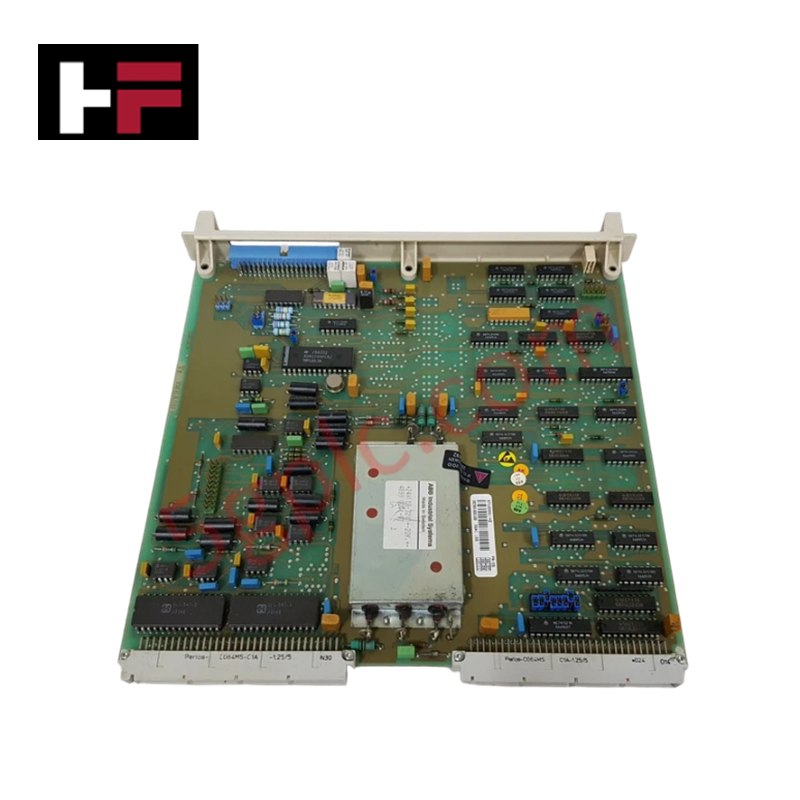

Configured for high-accuracy analog signal acquisition in ABB Advant Master process control networks, the ABB DSAI 155 57120001-HZ (DSAI 155 Analog Input Modules) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSAI 155 |
| Order Code | 57120001-HZ |
| Brand | ABB |
| Origin | Sweden |
| Product Type | Analog Input Modules |
| Input Signal Type | Analog Input Signals |
| Weight | 0.54 kg |
| Dimensions | Standard Advant Master subrack card dimensions |
| Operating Temp | 0 to 55 deg C |
| Power Consumption | Bus-powered via subrack backplane |
| Customs Tariff Number | 85389099 |
| Replaced Product ID | 7650055-140 |
Backplane Bus Communication & I/O Density Scaling
The ABB DSAI 155 analog input board digitizes incoming process signals and streams digitized process values over the internal rack backplane interface to host controllers. The board design supports high I/O density scaling within S100 subracks while preserving signal conversion speed. Factory firmware flash compatibility enables deterministic scan execution across assigned process control nodes.
Frequently Asked Questions
Q: What action is required regarding the backplane interface when replacing a DSAI 155 card?
A: Auxiliary loop and subrack backplane power must be isolated before extracting or inserting the board to prevent logic communication glitches and bus transceiver stress.
Q: How does the DSAI 155 board maintain process signal integrity across the backplane?
A: On-board conditioning filters high-frequency industrial noise before analog-to-digital conversion, ensuring accurate measurement values are written directly to backplane bus registers.
Field Installation Guidelines
- Turn off main power to the target I/O subrack prior to inserting or removing the DSAI 155 module.
- Carefully align board edge connectors with the subrack guide tracks and insert until the rear plug engages fully into the backplane socket.
- Tighten faceplate mounting screws firmly to lock the card into position and secure the ground path to the rack chassis.
- Keep analog input cables routed in shielded twisted-pair conduits separate from high-voltage AC lines.
- Ground field cable shields at the dedicated cabinet ground bar before applying operational power.
