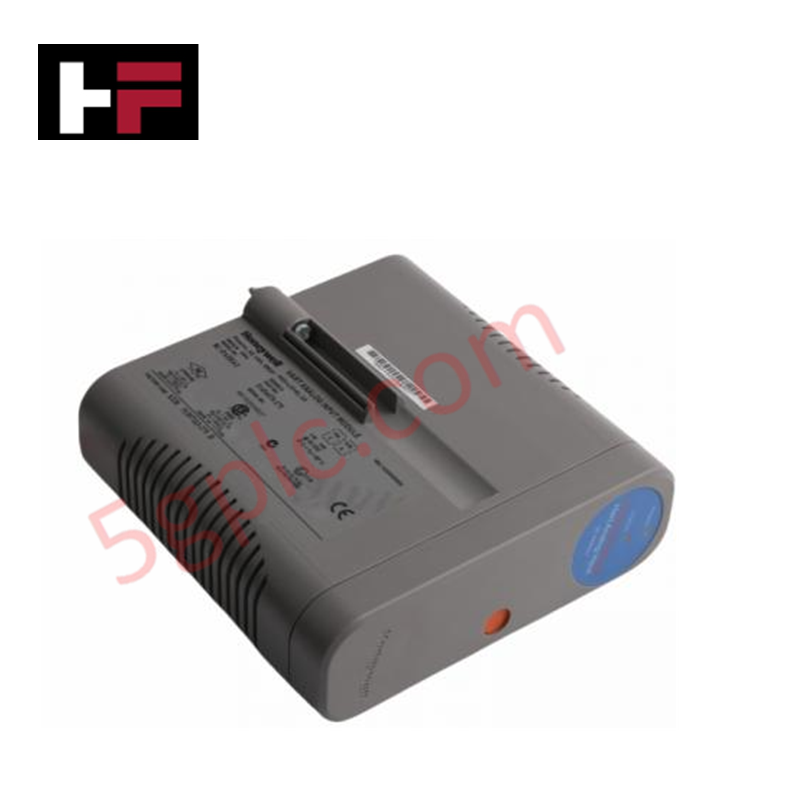

51454416-700 Honeywell Analog Input Module51454416-700 Honeywell Analog Input Module51454416-700 Honeywell Analog Input Module
51454416-700 Honeywell Analog Input Module
51454416-700 Honeywell Analog Input Module
51454416-700 Honeywell Analog Input Module

51454416-700 Honeywell Analog Input Module


Only 10 left - Selling fast

PRODUCT SKU : 51454416-700

PRODUCT TYPE : Analog Input Modules

PRODUCT VENDOR : Honeywell


  • 100% Genuine Parts – Risk-Free 30-Day Returns
  • 1-Year Warranty & Expert Support for Every Order

Product Details

The Honeywell 51454416-700, also cataloged as the 51454416-700 Analog Input Module, operates as a dedicated hardware component for field signal digitization and current/voltage sampling within Experion PKS and TPS networks.

Hardware Specifications

Parameter Specification
Model 51454416-700
Brand Honeywell
Origin USA
Operating Temp 0 to +60 deg C
Power Consumption 24 VDC Nominal Input
Module Type Analog Input Module
Input Signal Types 4-20 mA, 0-10 V
Channel Density 8 or 16 Channels
A/D Conversion Resolution 12-bit or higher
Target Systems Experion PKS / TPS

4-20 mA HART Loop Protocol & Channel Isolation

The module contains multichannel analog-to-digital converters that digitize incoming 4-20 mA and 0-10 V signals into process variables at a resolution of 12-bit or higher. Internal circuit design incorporates channel-to-channel isolation and integrated signal filtering to reject common-mode voltage spikes and high-frequency line noise. This prevents loop ground currents from distorting signal acquisition across distributed control network backplanes.

Frequently Asked Questions

Q: What input signal standards are accepted by the 51454416-700 analog module?

A: The module accepts standard industrial process inputs, including 4-20 mA current loops and 0-10 V direct current voltage signals.

Q: How is the module powered within the chassis assembly?

A: The unit operates from a nominal 24 VDC power rail distributed via the system backplane terminal bus.

Q: What conversion resolution is executed during field signal digitization?

A: The internal A/D converter operates at a minimum resolution of 12-bit to process raw field variables into digital data for host controllers.

Field Installation Guidelines

  1. Power off the target I/O rack or de-energize the local 24 VDC supply before mounting the module.
  2. Align the printed circuit board with the chassis guide slots and insert until the backplane bus connector locks securely.
  3. Tighten the top and bottom panel retaining screws to establish chassis ground continuity and prevent vibration looseness.
  4. Wire field transmitters to termination blocks, verifying loop transmitter polarities for 4-20 mA or 0-10 V wiring configurations.
  5. Terminate overall cable shielding at the system enclosure earth grounding bar to minimize high-frequency electromagnetic interference.

Additional Information

  • 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
  • 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
  • 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
  • Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
  • Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
  • Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
