Product Details

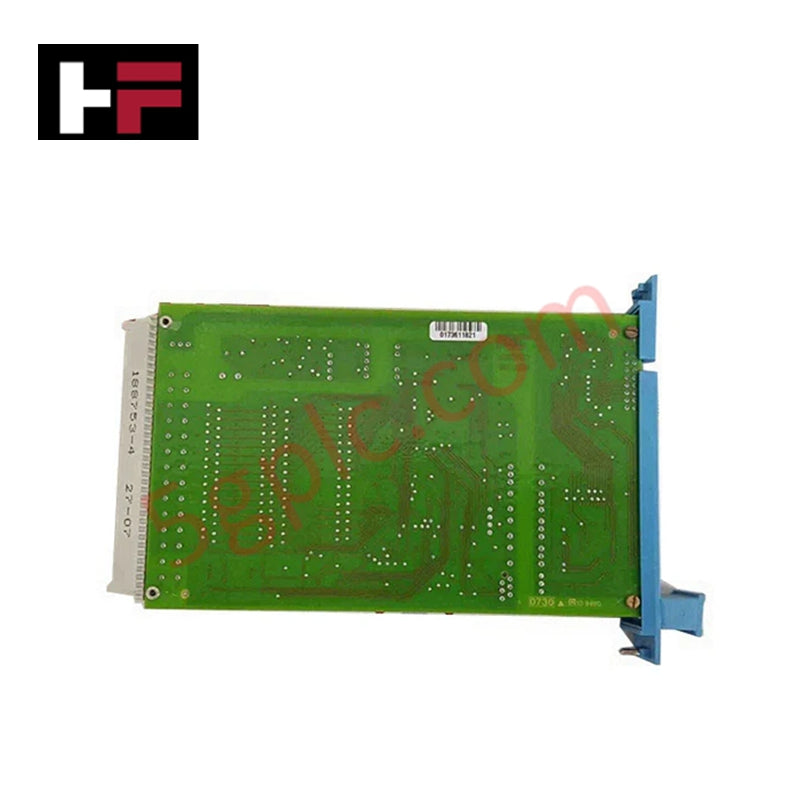

Configured for high-density analog signal acquisition and voltage conversion in Safety Manager platforms, the Honeywell FC-SAI-1620M CC V1.5 (SAI-1620M CC V1.5 Analog Input Module) provides direct physical/electrical execution. It digitizes analog inputs across 16 primary channels and 1 external voltage readback channel for safety logic solvers.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SAI-1620M CC V1.5 |
| Brand | Honeywell |
| Origin | USA |
| Operating Temp | -10 to +55 deg C |
| Power Consumption | Standard backplane internal bus draw |
| Input Channels | 16 analog input channels (0-4 V) |
| Readback Channel | 1 external voltage readback channel (0-4 V) |
| Safety Rating | SIL3 compliant with IEC 61508 |
| Signal Conversion | Converts 0-20 mA field signals to 0-4 V using external modules |
| Signal Isolation | All channels share isolated analog 0 V |
| Coating | Conformal Coated (CC) |
Process Control & DCS Signal Processing Characteristics
The FC-SAI-1620M CC V1.5 incorporates channel-to-channel isolation with a shared isolated analog 0 V rail, protecting internal analog-to-digital conversion circuits against field-side voltage spikes. Designed for high-integrity safety instrumented loops, the module converts standard 0-20 mA field device currents to internal 0-4 V signal levels via external termination units. Onboard diagnostic routines continuously validate the 16 analog input paths alongside the 1 external voltage readback channel to satisfy IEC 61508 SIL3 execution standards without interfering with 4-20 mA HART loop protocol telemetry.
Frequently Asked Questions
Q: How does the external voltage readback channel operate on the FC-SAI-1620M CC V1.5?
A: The dedicated 0-4 V external voltage readback channel continuously monitors the common field reference potential or power supply line, enabling hardware self-diagnostics and fault detection across the analog input sub-assembly.
Q: Can 0-20 mA or 4-20 mA field transmitters be wired directly to the front terminal block of the module?
A: Field 0-20 mA or 4-20 mA current loops require external resistor networks or field termination modules to convert current signals to the 0-4 V input range required by the module's conversion channels.
Q: What environmental protection is provided by the CC designation?
A: The "CC" designation signifies Factory Conformal Coating on the printed circuit board assembly, protecting electronic components from ambient humidity, dust, and atmospheric contaminants within -10 to +55 deg C operating limits.
Field Installation Guidelines
- Card Insertion: Align the module circuit board with the chassis guide slots in the designated Safety Manager rack. Push firmly until the backplane multi-pin interface fully engages, then hand-tighten top and bottom retaining screws.
- Grounding Protocols: Verify that the central chassis earth strap connects directly to the master cabinet grounding bar using a low-impedance copper jumper to maintain common analog 0 V isolation integrity.
- Field Wiring Termination: Connect field signal wiring through compatible external termination modules configured with current-to-voltage conversion resistors (0-20 mA to 0-4 V). Ensure all signal cable shields terminate at a single ground point.
- Wiring Segregation: Maintain a minimum physical distance of 30 cm between low-voltage analog input cabling and high-voltage AC distribution circuits inside the control panel.
