Product Details

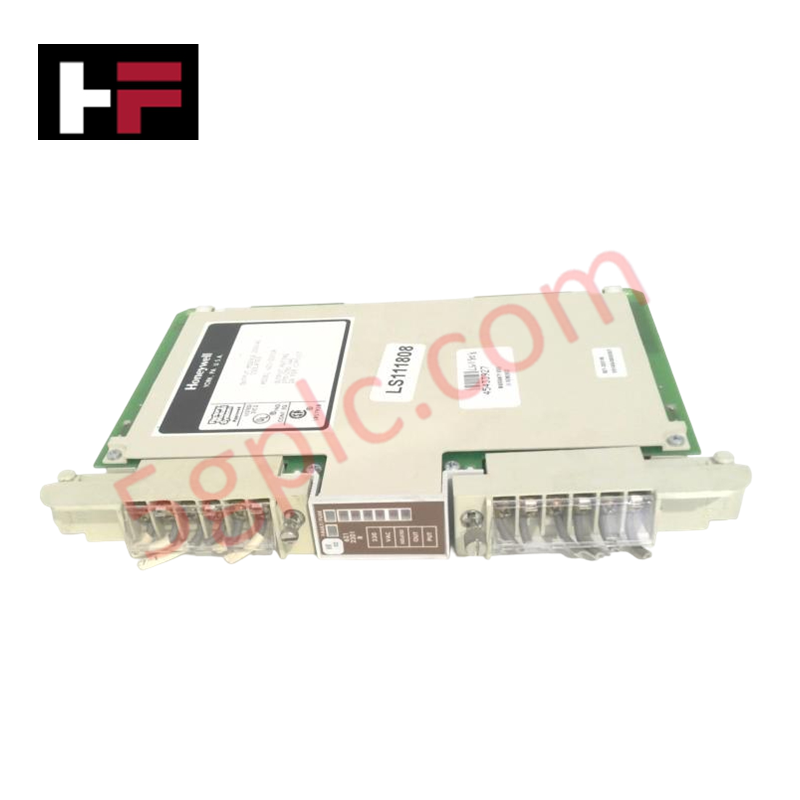

Configured for high-voltage digital switching in IPC 620 control systems, the Honeywell 621-2201R (621-2201R Output Module) provides direct physical execution of discrete 230 VAC load control. This 6-point isolated output module manages the interface between the low-voltage processor backplane and field-side AC actuators, ensuring galvanic isolation between the control logic and external power circuits.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 621-2201R |
| Brand | Honeywell |
| Origin | USA |
| Weight | 1.36 kg (3.00 lbs) |
| Dimensions | Not specified |
| Operating Temp | Standard industrial ambient range |
| Power Consumption | Backplane dependent |
| Switching Capacity | 6 points, 230 VAC isolated |
Channel-to-Channel Isolation and Digital I/O Control
The 621-2201R module utilizes channel-to-channel isolation to prevent fault propagation and electrical noise ingress into the IPC 620 rack backplane. This isolation architecture is necessary to maintain signal integrity when interfacing with inductive loads such as AC solenoids or contactor coils. To ensure deterministic I/O density scaling, the module is mapped within the processor scan cycle to provide synchronized status updates. Effective protection against surge voltages and transient spikes is integrated into the output stage, though external MOV or RC snubber circuits are recommended for high-frequency switching applications to preserve relay and output switch longevity.
Frequently Asked Questions
Q: Does this module support hot-swapping within the IPC 620 rack?
A: No. The IPC 620 backplane does not permit hot-swapping of output modules. All field power and rack power must be isolated before module insertion or removal to prevent damage to the backplane pins.
Q: Can the 621-2201R be used to switch DC loads?
A: No. The output stages are specifically designed for 230 VAC applications. Attempting to switch DC voltages will result in failure to quench the arc, leading to permanent damage of the output switching elements.
Field Installation Guidelines
- Mounting: Ensure the module is properly keyed and seated into the correct rack slot. Tighten the retaining screws to provide mechanical stability and ensure consistent backplane pin contact.
- Grounding: Ensure the rack chassis is bonded to a dedicated earth ground. The module derives its reference ground through the backplane; improper chassis grounding leads to potential failure in the isolation barrier.
- Wiring: Route field AC output wiring through dedicated conduits separate from low-voltage DC signal lines to minimize inductive crosstalk. Ensure conductors are sized according to the load current and strictly adhere to local electrical safety standards.
- Load Protection: Install appropriate fusing on each output point to protect against over-current conditions and short circuits in the field cabling.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
