Product Details

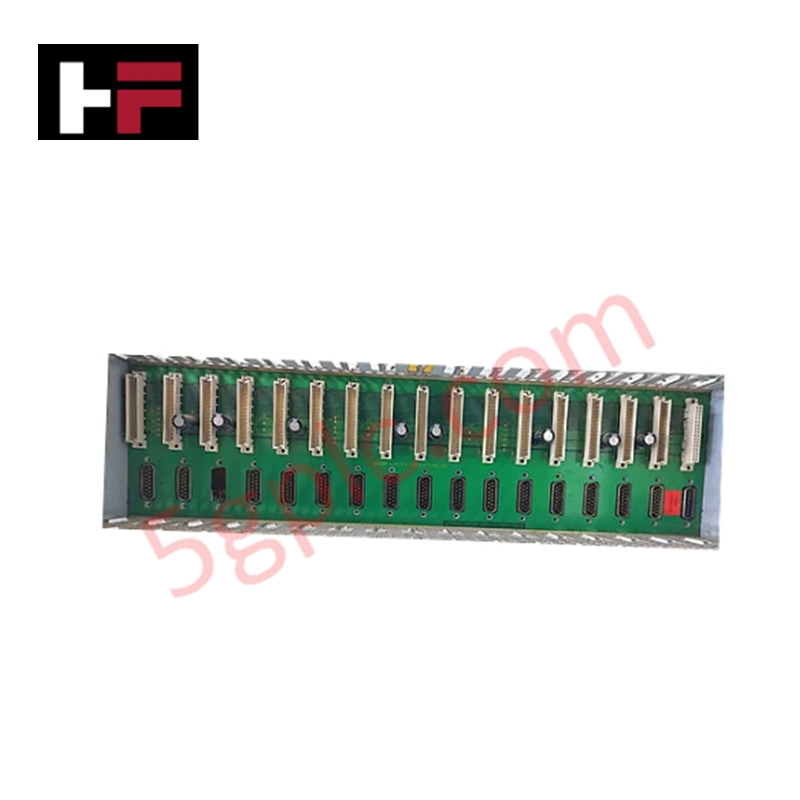

Configured for high-density module housing in Sieger gas detection platforms, the Honeywell 05701-A-0511 (05701-A-0511) Rack Assembly provides direct physical infrastructure to support 16 individual control cards or modules. The assembly serves as the foundational mounting unit, facilitating backplane integration and mechanical stability for multi-channel gas monitoring architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 05701-A-0511 |
| Brand | Honeywell |
| Origin | Not specified |
| Weight | 0.5 kg |
| Dimensions | 122 mm x 52 mm x 132 mm |
| Operating Temp | -20 to 60 deg C |
| Power Consumption | Not applicable (Passive infrastructure) |
| Capacity | 16 control cards |
Channel-to-Channel Isolation
The 05701-A-0511 rack assembly architecture is designed to support modular isolation by providing independent physical slots for up to 16 control cards. While the assembly itself is a passive structural component, it is optimized to maintain electrical separation by minimizing crosstalk between adjacent modules through structured backplane bus routing. Each slot is engineered to facilitate channel-to-channel isolation by ensuring that signal paths for individual control cards remain physically and electrically segregated, preventing the propagation of ground noise or fault transients across the high-density monitoring rack.
Frequently Asked Questions
Q: Does the 05701-A-0511 assembly include internal power wiring?
A: No. The assembly is a structural mounting rack. Power distribution to individual cards is achieved through the backplane interface integrated into the assembly or via supplementary DC input cards designed for the Sieger System 57 platform.
Q: Are there specific installation orientation requirements for this rack?
A: Yes. The rack must be mounted in an orientation that allows for adequate convection cooling of the modules. Ensure that airflow is not obstructed and that ambient temperatures remain within the -20 to 60 deg C range.
Field Installation Guidelines
- Mounting Stability: Secure the rack assembly to a flat, vibration-resistant surface within the equipment cabinet. Use appropriate mounting hardware to maintain mechanical integrity during operation.
- Backplane Alignment: Ensure that modules are inserted straight and fully seated to prevent damage to the backplane connector pins. Misalignment during installation can lead to intermittent contact or system-wide communication failures.
- Cable Management: Route signal cables away from the rack power distribution bus. Use cable ties and ducts to organize wiring, ensuring that the bending radius of cables does not exceed manufacturer-specified limits.
- Environment Protection: Although the assembly is resistant to dust and moisture, ensure the enclosure environment meets industrial standards to prevent corrosion on the backplane connectors and module contact points.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
