Product Details
Overview

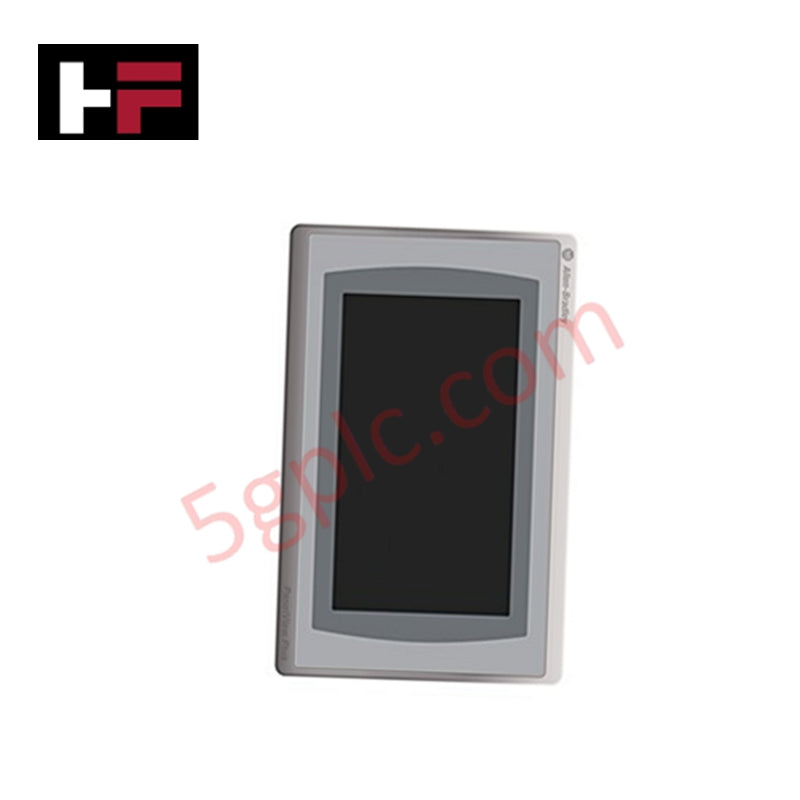

The 2711P-T9W22D8S is a 9-inch operator terminal from Allen-Bradley’s PanelView Plus 7 Standard series. It features a widescreen WVGA TFT color display that provides clear, high-resolution process visualization. Designed for user-friendly interaction, it enables efficient control and monitoring of automation systems through an intuitive touchscreen interface. Compact and durable, this model is ideal for a wide range of industrial HMI applications.
Key Features
-
Model Number: 2711P-T9W22D8S
-
Manufacturer: Allen-Bradley (Rockwell Automation)
-
Product Series: PanelView Plus 7 Standard
-
Display Size: 9.0-inch diagonal display
-
Display Type: WVGA TFT color screen
-
Aspect Ratio: 5:3 widescreen format
-
Resolution: 800 × 480 pixels (WVGA)
-
Memory: 512 MB nonvolatile memory (approximately 80 MB available for user applications)
-
Operating System: Windows CE-based runtime environment
-
Touchscreen Type: Analog resistive, designed for gloved or stylus operation
-
Communication Ports: Ethernet, USB, and serial interfaces (RS-232)
-
Input Voltage: 24 V DC nominal supply
-
Mounting: Panel-mounted enclosure
-
Operating Temperature: 0°C to 55°C
-
Storage Temperature: -25°C to 70°C
-
Dimensions: Compact housing suitable for standard control panels
Applications
The 2711P-T9W22D8S is designed for:
-
Machine interface and supervisory control in industrial automation
-
Real-time visualization of process parameters and system diagnostics
-
Integration with Allen-Bradley CompactLogix and ControlLogix PLC systems
-
Manufacturing, packaging, and material handling systems requiring reliable HMI performance
FAQ
-
Q1: What is the display resolution of the 2711P-T9W22D8S?
A1: It features an 800 × 480 pixel WVGA TFT color display. -
Q2: How much user memory is available?
A2: Approximately 80 MB of nonvolatile memory is available for user applications. -
Q3: Which PLC families are compatible with this HMI?
A3: It integrates seamlessly with Allen-Bradley CompactLogix and ControlLogix controllers via Ethernet/IP. -
Q4: What power source does the unit require?
A4: The terminal operates on a 24 V DC supply.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
