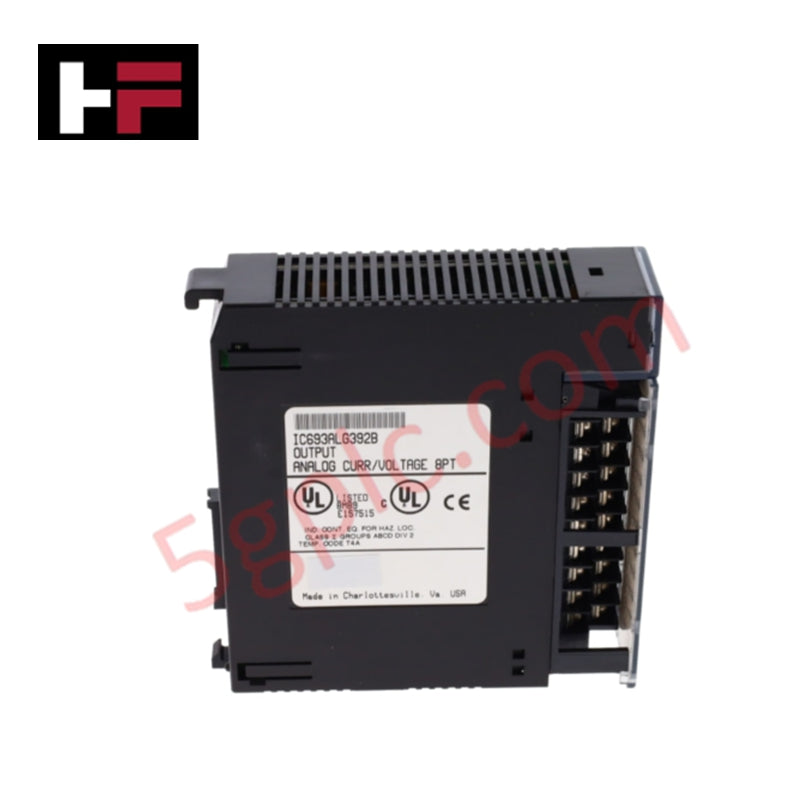

GE IC693ALG392 Series 90-30 Analog Current & Voltage Module

Overview:
The IC693ALG392 from GE Fanuc is an 8-channel analog current/voltage output module designed for Series 90-30 PLCs. It provides precise analog signal control with fast update rates and flexible voltage/current ranges, suitable for process control and measurement applications.

Technical Specifications:

• Manufacturer: GE Fanuc Emerson

• Model Number: IC693ALG392

• Product Type: Analog Current/Voltage Output Module

• Number of Channels: 8

• Current Output Range: 0–20 mA, 4–20 mA

• Voltage Output Range: 0–10 V, -10 to 10 V

• Resolution: 0.5 μA for 4–20 mA, 0.625 μA for 0–20 mA, 0.312 mV for 0–10 V

• Update Rate: 8 ms for all channels

• Isolation: Internal supply isolated from PLC logic

• Internal Supply Voltage: 5 VDC from backplane

• External Supply Voltage Range: 20–30 VDC user-supplied

• Power Consumption: 110 mA at 5 VDC; 315 mA at 24 VDC user-supplied

• Module Width: Single-slot

• Weight: 0.37 kg

• Lifecycle Status: Discontinued / Obsolete

Features:

• Supports precise analog control for current and voltage signals

• High-resolution outputs enable fine-tuned process regulation

• Compact single-slot design for efficient backplane use

• Compatible with all Series 90-30 PLC analog applications

Applications:

• Process control systems requiring precise analog outputs

• Industrial measurement, flow, and level control

• Integration with 0–10 V or 4–20 mA instrumentation

FAQ:

• Q: Can this module handle both current and voltage outputs?
  A: Yes, it supports 0–20 mA, 4–20 mA, 0–10 V, and -10–10 V signals.

• Q: What is the maximum update rate?
  A: 8 ms for all channels simultaneously.

• Q: Is an external supply required?
  A: Yes, 20–30 VDC user-supplied for current outputs; internal 5 VDC from backplane powers logic.
