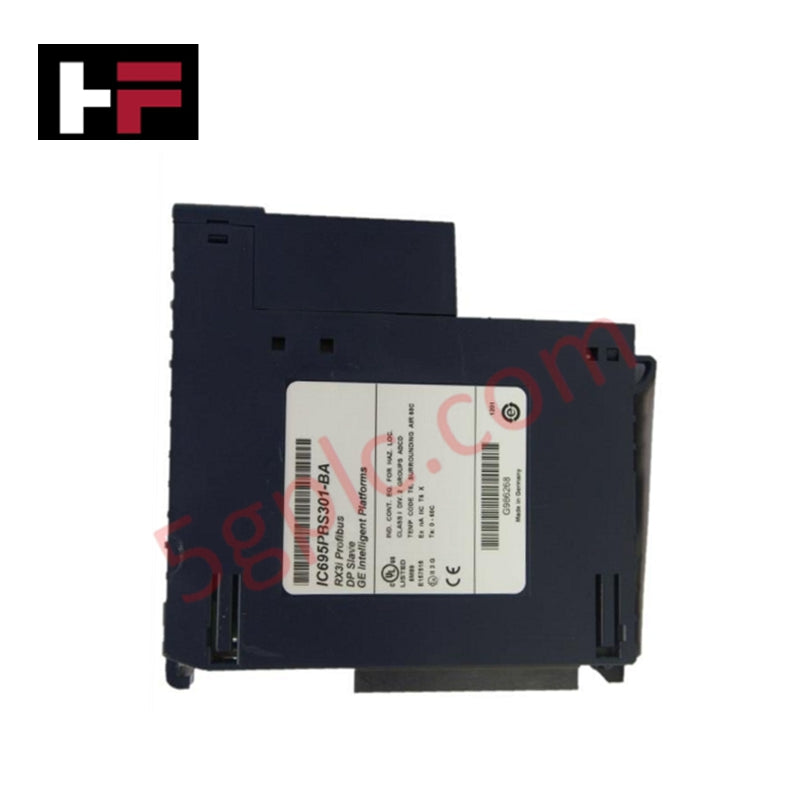

IC695PBS301 | GE Fanuc RX3i PROFIBUS Interface Module

Overview

The IC695PBS301 is a PROFIBUS DP Slave Communication Module developed by GE Fanuc (Emerson) for the PACSystems RX3i platform. This module allows RX3i controllers to operate as slave devices on a PROFIBUS network, providing seamless interoperability with third-party PROFIBUS DP masters. Engineered for distributed control systems, it delivers fast, deterministic data exchange and reliable communication in complex automation environments.

Technical Specifications

• Model Number: IC695PBS301

• Manufacturer: GE Fanuc Emerson

• Product Type: PROFIBUS DP Slave Communication Module

• Supported Protocols: PROFIBUS DP-V0 and DP-V1

• Data Capacity: Up to 244 bytes input and 244 bytes output

• Baud Rate: 9.6 Kbps to 12 Mbps (automatic detection)

• Connector Type: 9-pin D-sub female (standard PROFIBUS interface)

• Power Consumption: 440 mA @ 3.3 VDC

• Backplane Compatibility: RX3i Universal Backplane

• Slot Requirement: Single-slot module

• Operating Temperature: 0°C to +60°C

• Storage Temperature: -40°C to +85°C

• LED Indicators: PROFIBUS OK, Network, Module Status

• Firmware Updates: Supported via host CPU using WinLoader utility

Key Features

• Full PROFIBUS DP Slave Functionality: Supports cyclic data exchange and DP-V1 messaging for efficient communication.

• High-Speed Performance: Designed for deterministic real-time data handling with minimal latency.

• Automatic Baud Rate Detection: Simplifies setup and integration with existing PROFIBUS networks.

• Diagnostic LED Indicators: Provide immediate status feedback for power, communication, and module health.

• Hot-Swappable Design: Enables module replacement without system shutdown when supported.

• Seamless RX3i Integration: Configured through Machine Edition Logic Developer–PLC software.

• Industrial-Grade Construction: Built for reliable performance in high-vibration and high-temperature environments.

Applications

• Distributed control systems (DCS)

• Industrial automation and process control

• Machine-to-machine communication

• PROFIBUS-based networked I/O systems

FAQ

• Q: What PROFIBUS versions does the IC695PBS301 support?
  A: It supports both DP-V0 and DP-V1 protocols for cyclic and acyclic data communication.

• Q: Can this module auto-detect network speed?
  A: Yes, it automatically detects baud rates from 9.6 Kbps to 12 Mbps.

• Q: Is the IC695PBS301 hot-swappable?
  A: Yes, it can be replaced while the system remains operational under supported conditions.

• Q: What is the maximum data exchange capacity?
  A: It supports 244 bytes of input and 244 bytes of output data.
