Product Details
Overview

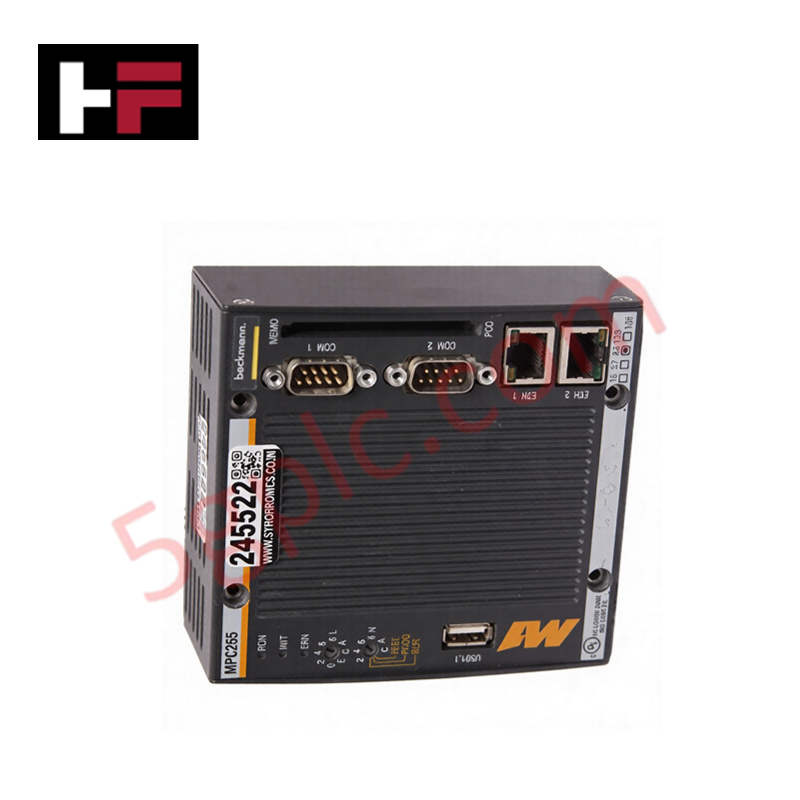

The Bachmann MPC265 is a high-capacity processor module designed for industrial automation applications. Featuring advanced CPU architecture, extensive memory, and multiple communication interfaces, the MPC265 ensures reliable and high-speed processing for complex control and data acquisition tasks. Its robust design supports operation in challenging industrial environments, making it a dependable core component for automation systems.
Specifications
Processor & Memory
-
CPU: High-performance industrial processor (Celeron/Pentium compatible)
-
SRAM: 512 kB for critical system operations
-
nvRAM: 64 kB non-volatile memory for secure data retention
-
FLASH (Program Memory): 8 MB, with part reserved for system software
-
DRAM (Working Memory): Up to 128 MB
Interfaces
-
Serial Ports: 1x RS232 + 1x RS232/422/485 for flexible device communication
-
Ethernet: 2x 10/100 Base-TX
-
USB: 1x USB 1.1 for peripheral connectivity
-
Expansion Slots: PCC slot and CF slot for module expansion
Power & Protection
-
External Supply: 5 V and ±15 V via backplane
-
Fanless Design: Ensures silent operation and minimal maintenance
Environmental Conditions
-
Operating Temperature: −30 to +60 °C
-
Relative Humidity (Operation): 5–95% without condensation
-
Storage Temperature: −40 to +85 °C
-
Relative Humidity (Storage): 5–95% without condensation
Features
-
High-Speed CPU: Handles demanding automation applications with reliable processing
-
Flexible Memory Configuration: SRAM, nvRAM, FLASH, and DRAM support large programs and data storage
-
Versatile Communication Options: Ethernet, serial, USB, and expansion slots provide integration flexibility
-
Fanless Industrial Design: Low-noise and maintenance-free operation suitable for harsh environments
-
Expandable Architecture: PCC and CF slots allow additional modules or storage upgrades
-
Robust Operation: Wide temperature and humidity tolerance ensure stable performance
Applications
The MPC265 is ideal for distributed control systems, factory automation, process monitoring, and other industrial applications requiring a reliable and high-performance processor as the central control unit.
FAQ
Q: What type of CPU does the MPC265 use?
A: The MPC265 features a high-performance industrial processor compatible with Celeron/Pentium III architecture.
Q: How much memory is available?
A: The module provides 512 kB SRAM, 64 kB nvRAM, 8 MB FLASH, and up to 128 MB DRAM.
Q: Which communication interfaces are included?
A: 2x Ethernet 10/100 Base-TX, 1x RS232, 1x RS232/422/485, 1x USB 1.1, plus PCC and CF expansion slots.
Q: Can it operate in harsh environments?
A: Yes, the module supports −30 to +60 °C operation and 5–95% humidity without condensation, with a fanless design.
