Product Details
Product Description

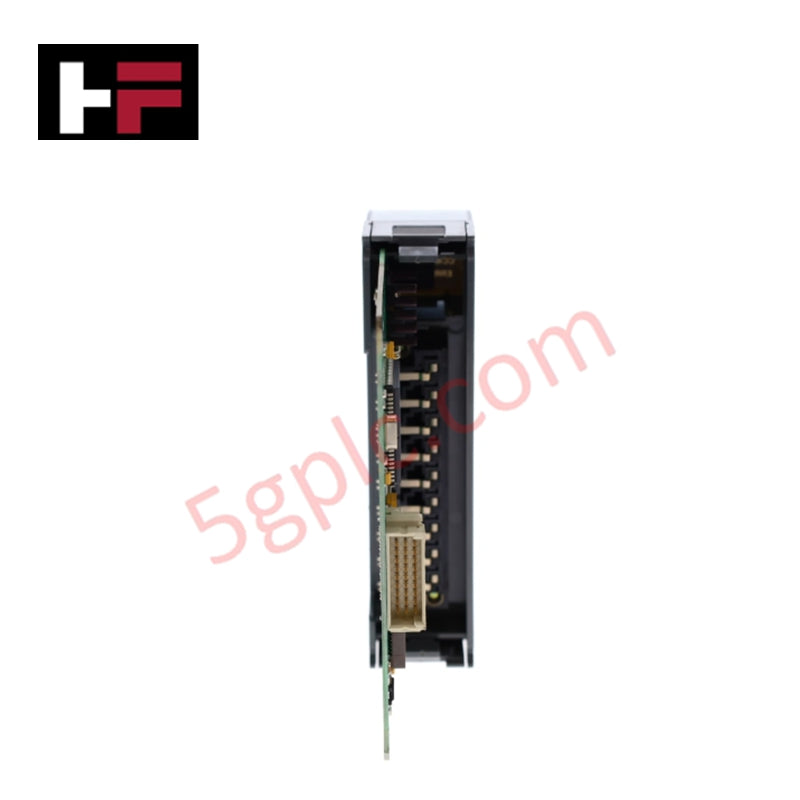

The Allen-Bradley 1746-HSTP1 is a single-axis stepper controller module for the SLC 500 series. It is designed to interface directly with stepper motor drivers, providing precise pulse control for motion applications. With high-speed pulse generation, trapezoidal velocity profiles, and differential input capability, it ensures accurate positioning and smooth acceleration in industrial automation systems.
Technical Specifications
-
Manufacturer Allen-Bradley
-
Category PLCs
-
Product Line SLC 500
-
Part Number 1746-HSTP1
-
Weight 0.50 lbs (0.23 kg)
-
Module Type Stepper controller module
-
Number of Axes 1
-
Compatible Interfaces Stepper motor driver
-
Speed Range 1–250,000 pulses per second
-
Acceleration Range 1–2000 pulses per second (trapezoidal velocity profile)
-
Acceleration Step Rate ≤ 4 ms
-
Inputs Differential inputs
-
Outputs Digital outputs
-
Input Frequency Up to 250 kHz
-
Backplane Current (5 VDC) 200 mA
-
Backplane Current (24 VDC) 90 mA
-
I/O Connections 1746-HT and 1746-HCA
-
Step Response 100 ms input, 2.5 ms output
-
Mounting Rack mount (fits any SLC 500 chassis slot)
Application Scenarios
-
Precision stepper motor control in automation systems
-
Single-axis positioning applications requiring high-speed pulse generation
-
Industrial machinery needing trapezoidal velocity profiles for smooth acceleration
-
Integration into SLC 500 racks for motion control solutions
FAQ
Q: How many axes does the 1746-HSTP1 support? A: It supports one axis per module.
Q: What is the maximum pulse rate? A: The module can generate up to 250,000 pulses per second.
Q: Which accessories are required for I/O connections? A: The 1746-HT and 1746-HCA connection accessories are required.
Comparison with Similar Models
-
1746-HSCE: High-speed counter module for encoder feedback applications.
-
1746-HSRV: Servo control module for closed-loop motion systems.
-
1746-HSTP1: Stepper controller module optimized for single-axis stepper motor control.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
