Product Description

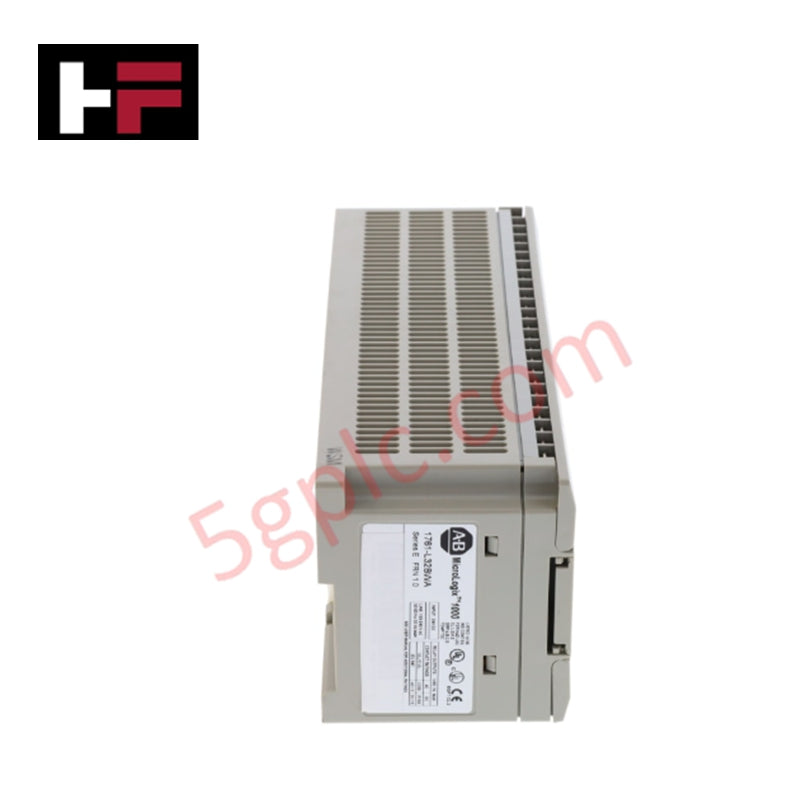

The Allen Bradley 1761-L32BWA is a MicroLogix 1000 series programmable logic controller (PLC) designed for compact automation systems requiring reliable digital input and relay output control. With 32 I/O points, integrated EEPROM memory, and RS-232 communication, this controller provides dependable performance for small-scale industrial applications.
Technical Specifications
-
Manufacturer: Allen Bradley
-
Product Line: MicroLogix 1000
-
Category: Programmable Logic Controllers
-
Model / Part Number: 1761-L32BWA
-
Weight: 2 lbs (0.91 kg)
-
I/O Count: 32 points total
-
Inputs: 20 DC inputs (sinking/sourcing, 14–30 VDC)
-
Outputs: 12 relay contact outputs
-
Memory: 1K EEPROM (approx. 737 instruction words, 437 data words)
-
Communication Port: RS-232, DF1 protocol
-
Safety Feature: Master Control Relay (MCR)
-
Isolation Voltage: 1500 VDC
-
Power Supply: 120/240 VAC
-
Input Power Consumption: 16 VA @ 120 VAC; 22 VA @ 240 VAC
-
Inrush Current: 30 A for 4 ms
-
Operating Frequency: 47–63 Hz
-
Mechanical Endurance: 50,000 cycles minimum
-
Shock Resistance: 10 G operating, 20 G non-operating
-
Mounting Options: DIN rail or panel screws
-
Dimensions: 7.87 × 2.87 × 3.15 in.
-
Lifecycle Status: Discontinued / Obsolete
Application Scenarios
The 1761-L32BWA is suitable for small machine control, packaging systems, and basic automation tasks. Its relay outputs make it ideal for switching AC and DC loads, while the RS-232 port ensures straightforward integration with legacy communication networks.
FAQ
Q: How many inputs and outputs does this controller support? A: It provides 20 DC inputs and 12 relay outputs, totaling 32 I/O points.
Q: What type of communication protocol is used? A: The controller supports RS-232 communication using the DF1 protocol.
Q: Is this model still in production? A: No, the 1761-L32BWA is discontinued/obsolete but remains widely used in legacy systems.
Q: What is the isolation voltage rating? A: The module is rated at 1500 VDC isolation.
