Product Description

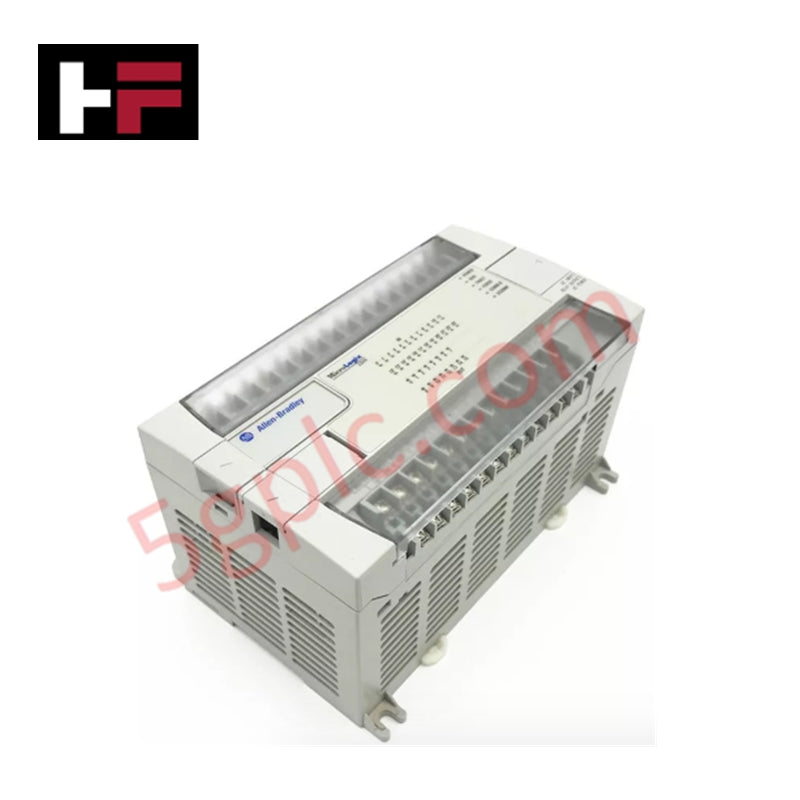

The Allen-Bradley 1762-L40BXBR MicroLogix 1200 is a 40-point programmable logic controller combining digital inputs and outputs for flexible machine control. It includes 24 standard 24V DC inputs, 4 high-speed DC inputs, 8 relay outputs, 7 standard 24V DC FET outputs, and 1 high-speed 24V DC FET output. The controller supports DF1, DH-485, ASCII, and MODBUS communication protocols via serial and programming ports. Designed for reliable operation, it functions in 0–55°C ambient temperatures, withstands 30G shock and 5G vibration, and operates on a 24V DC power supply with 40W typical consumption and 27.9W heat dissipation. Its relay outputs handle 24–125V DC or 120–240V AC with a 10A load, while FET outputs deliver 500–600mA per channel. The 1762-L40BXBR is ideal for small- to medium-scale automation systems requiring precise input/output management and robust communication.
Technical Specifications
-
Model Number: 1762-L40BXBR
-
Manufacturer: Allen-Bradley (Rockwell Automation)
-
Series: MicroLogix 1200
-
Product Type: 40-Point Programmable Controller
-
Inputs: 24 standard 24V DC; 4 high-speed 24V DC
-
Outputs: 8 relay; 7 24V DC FET; 1 high-speed 24V DC FET
-
Relay Ratings: 24–125V DC, 120–240V AC, 10A load
-
FET Output Current: 500mA at 24V DC, 600mA at 5V DC
-
Power Supply: 24V DC, 82 VA
-
Power Consumption: 40 W typical
-
Heat Dissipation: 27.9 W
-
Communication Ports: 1 8-pin mini-DIN serial port, 1 programming port
-
Supported Protocols: DF1, DH-485, ASCII, MODBUS
-
Operating Temperature: 0–55°C (32–131°F)
-
Operating Shock: 30G
-
Vibration: 5G, 10–500 Hz
-
Mechanical Relay Life: 20,000,000 cycles
-
Weight: 0.91 kg (2.00 lbs)
Application Scenarios
The 1762-L40BXBR is suited for small to medium-scale automation applications such as:
-
Machine control panels
-
Material handling systems
-
Packaging machinery
-
Equipment requiring mixed relay and FET outputs
FAQ
Q1: Can the 1762-L40BXBR handle high-speed input counting?
A1: Yes, it includes 4 fast 24V DC inputs for high-speed signals.
Q2: Which protocols are supported for communication?
A2: DF1, DH-485, ASCII, and MODBUS protocols are supported.
Q3: What is the maximum relay load?
A3: Each relay can handle up to 10A at 24–125V DC or 120–240V AC.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
