Product Details
Overview

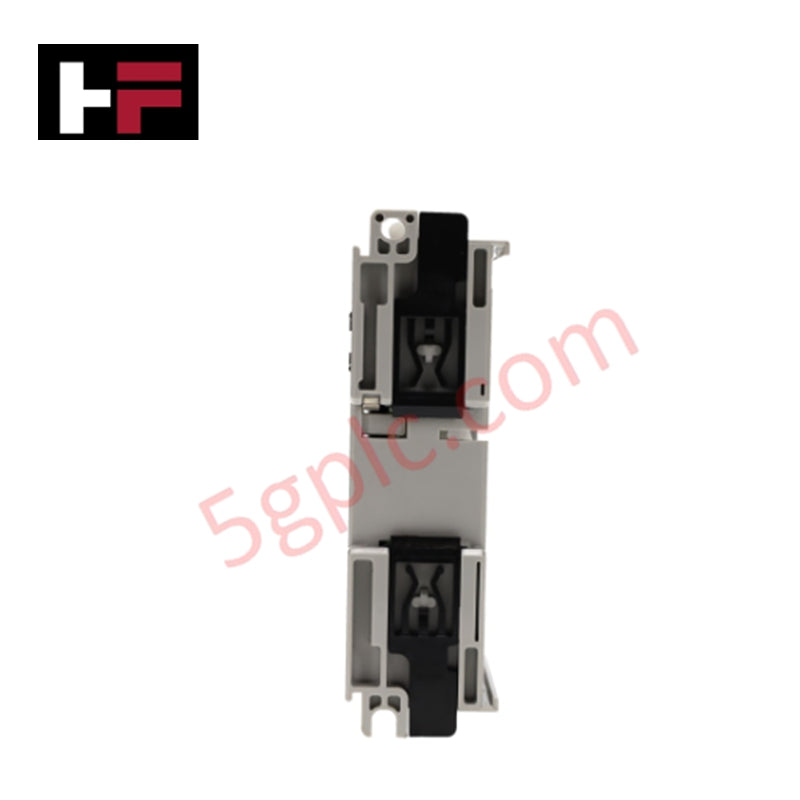

The Allen-Bradley 1769-OF2 is a compact analog output module engineered for the 1769 Compact I/O series. Designed for high-precision control, this module provides 2 single-ended outputs with Delta-Sigma conversion, supporting both unipolar (14-bit) and bipolar (14-bit plus sign) resolutions. It ensures reliable analog output performance in DIN rail or panel-mounted industrial applications, while maintaining reinforced insulation and robust electrical isolation.
Key Features
-
Provides 2 single-ended analog outputs
-
Delta-Sigma converter for accurate signal generation
-
Resolution: 14-bit unipolar, 14-bit plus sign bipolar
-
Maximum heat dissipation: 2.63 W
-
Current draw: 120 mA @ 5.1 V DC
-
Conversion rate: up to 2.5 ms for all channels
-
Rated working voltage: 30 V AC / 30 V DC
-
Reinforced isolation voltage: 500 V AC or 710 V DC for 1 minute (output group to bus)
-
Compact footprint suitable for DIN rail or panel mount
-
Module width: 1 slot
-
Compatible power supplies: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
-
Maximum distance from power supply: 8 modules
Technical Specifications
-
Manufacturer: Allen-Bradley / Rockwell Automation
-
Model Number: 1769-OF2
-
Product Type: Compact Analog Output Module
-
Number of Outputs: 2 single-ended
-
Converter Type: Delta-Sigma
-
Resolution: 14-bit unipolar / 14-bit plus sign bipolar
-
Heat Dissipation (max): 2.63 W
-
Current Draw @ 5.1 V DC: 120 mA
-
Conversion Rate (all channels): 2.5 ms
-
Rated Voltage: 30 V AC / 30 V DC
-
Isolation Voltage: 500 V AC / 710 V DC for 1 min, IEC Class 2 reinforced
-
Mounting: DIN rail or panel
-
Dimensions (HxWxD): 11.8 × 3.5 × 8.7 cm
-
Module Slot Width: 1 slot
-
Power Supply Compatibility: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
-
Power Supply Distance Rating: 8 modules
Applications
-
Precision analog output for Compact I/O control systems
-
Integration with 1769 CompactLogix controllers for industrial automation
-
Systems requiring high-resolution analog signal generation
-
Replacement or expansion of existing Compact I/O analog modules
FAQ
Q1: How many outputs does 1769-OF2 support?
A1: The module provides 2 single-ended analog outputs.
Q2: What is the resolution of the outputs?
A2: Unipolar outputs are 14-bit; bipolar outputs are 14-bit plus sign.
Q3: What is the module’s maximum heat dissipation?
A3: Maximum heat dissipation is 2.63 W.
Q4: Which power supplies are compatible with 1769-OF2?
A4: Compatible with 1769-PA2, 1769-PB2, 1769-PA4, and 1769-PB4.
