Product Details
Product Overview

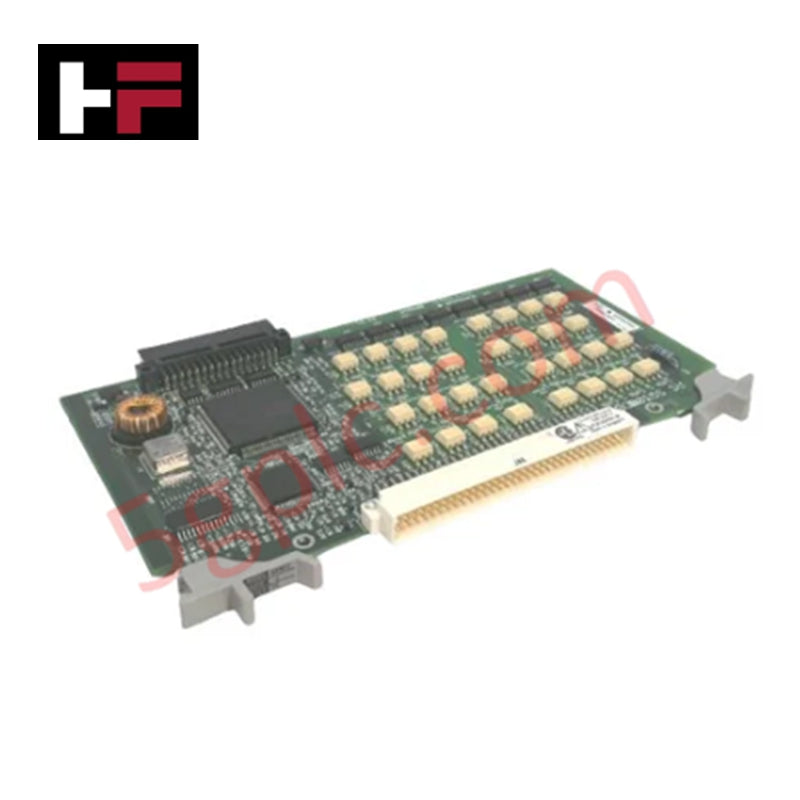

The Yokogawa ADM52-2 serves as a high-density relay output interface for the CENTUM Distributed Control System (DCS). This module manages 32 independent channels, allowing the system to switch external power circuits for heavy-duty actuators, large solenoid valves, and motor starters. By providing physical dry-contact isolation, the ADM52-2 bridges the gap between sensitive digital control logic and high-voltage field equipment.
Technical Specifications
The ADM52-2 delivers robust switching capabilities within a compact form factor:
| Parameter | Specification |
| Manufacturer | Yokogawa |
| Model | ADM52-2 |
| Output Type | Relay (Dry Contact) |
| Number of Channels | 32 Channels |
| Contact Rating (DC) | 2 A at 24 V DC |
| Contact Rating (AC) | 2 A at 240 V AC |
| Power Consumption | 3 W |
| Weight | 0.4 kg |
| Condition | 100% Brand New and Original |
Engineering Advantages
-
High-Capacity Load Switching: Unlike standard transistor outputs, the ADM52-2 utilizes mechanical relays rated for 2 A at 240 V AC. This allows the module to drive industrial loads directly without requiring interposing external relays, significantly reducing cabinet wiring complexity and hardware costs.
-
Galvanic Signal Isolation: The relay architecture provides superior electrical isolation between the DCS backplane and field-side transients. This protects the Field Control Station (FCS) from voltage surges and electromagnetic interference (EMI) originating from large motors or inductive loads.
-
Optimized Thermal Performance: Even while managing 32 active channels, the module consumes only 3 W of internal power. This low thermal signature prevents heat buildup in high-density I/O nests, ensuring stable operation in enclosed cabinets without supplemental cooling.
-
Universal Voltage Compatibility: The dry-contact outputs handle both DC and AC voltages. This versatility enables engineers to mix different voltage levels across the 32 channels, provided they stay within the 2 A current limit.
FAQs
-
Is the Yokogawa ADM52-2 supplied as a new or refurbished part?
We guarantee this unit is 100% Brand New and Original. Every ADM52-2 arrives in its original Yokogawa factory packaging, ensuring zero previous usage and the full mechanical life of the internal relays.
-
What are the key differences between the ADM52-2 and standard digital output modules?
The ADM52-2 features physical relay contacts rather than solid-state transistors. This allows for higher current ratings (2A) and the ability to switch AC voltages up to 240V, which standard DC output modules cannot accommodate.
-
Does this module support hot-swapping in a live DCS environment?
Yes, provided your Yokogawa I/O nest and system software configuration support online module replacement. Always ensure you have disconnected the high-voltage field-side power before removing the module to prevent arcing at the backplane connectors.
-
How should I protect the relays when switching inductive loads?
When switching solenoid valves or motor contactors, we recommend installing external surge suppressors (diodes for DC or varistors for AC) across the load. This prevents back-EMF from prematurely wearing out the ADM52-2 relay contacts.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
