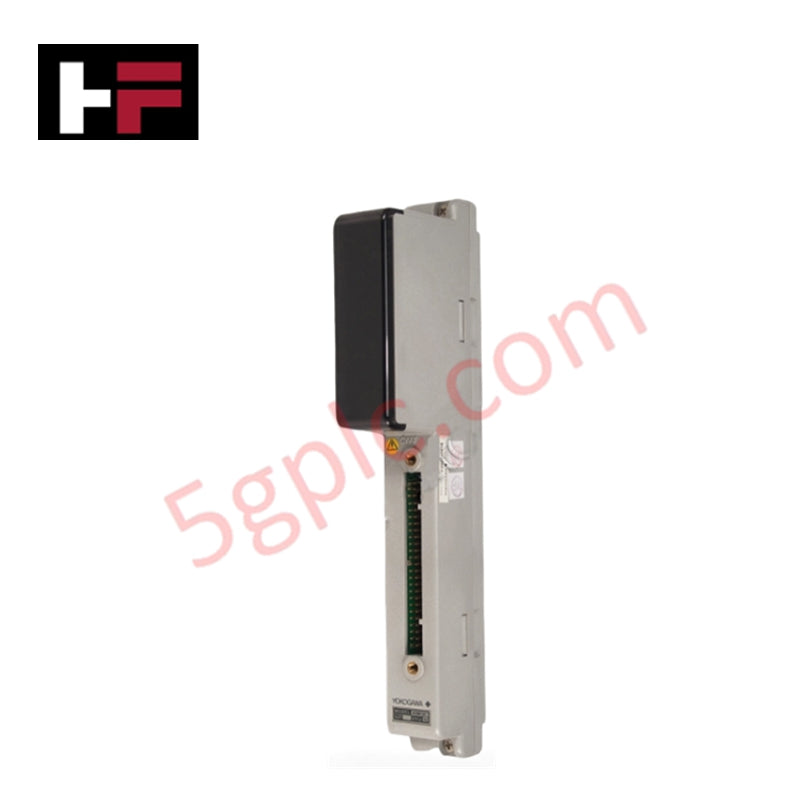

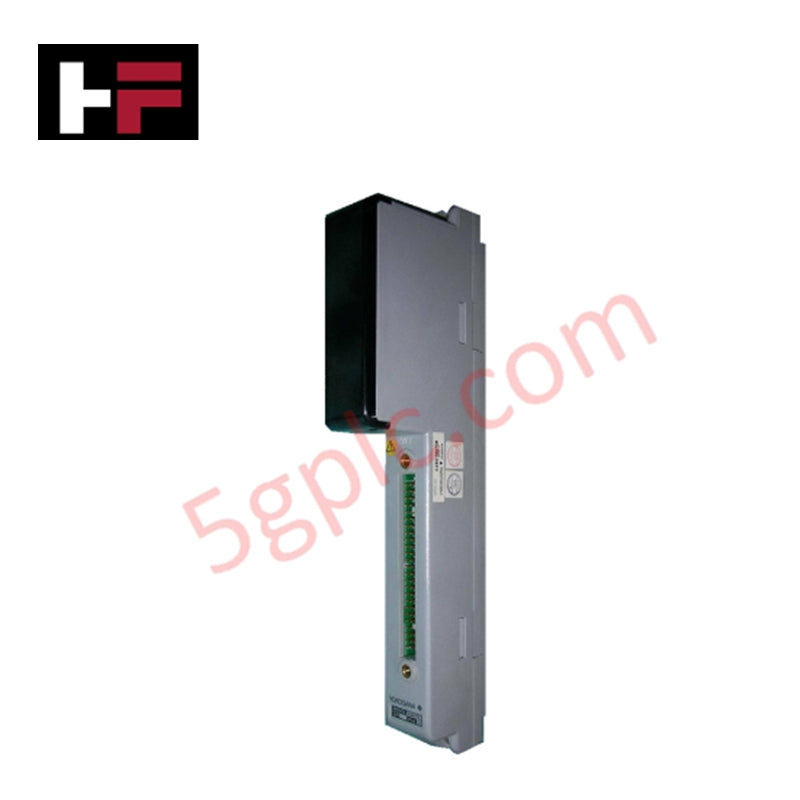

Yokogawa ADM51-2 CENTUM CS/VP Contact Output Card

Product Overview

The Yokogawa ADM51-2 operates as a high-precision discrete output interface within the CENTUM CS and CENTUM VP Distributed Control System (DCS) architectures. This circuit board manages 16 independent contact output points, allowing the control system to actuate field devices such as intermediate relays, indicators, and small solenoid valves. It ensures high-integrity signal switching by integrating directly into the system backplane while providing an RS-485 communication interface for diagnostic data exchange.

Technical Specifications

The ADM51T delivers specialized switching capabilities for DC-powered control loops:

Engineering Advantages

• Secure Industrial Terminations: The ADM51-2 utilizes M4 screw terminals, which provide superior mechanical locking for field wiring. This design prevents terminal loosening in high-vibration environments, ensuring continuous electrical contact compared to standard tension-clamp connectors.

• Rapid Signal Response: A 10ms response time ensures the output card executes control commands almost instantaneously. This high-speed switching proves critical for safety interlocks and synchronized process sequences where timing precision directly impacts product quality.

• Integrated RS-485 Diagnostics: The inclusion of an RS-485 interface allows the module to transmit status data and diagnostic information. Engineers monitor the health of the output card remotely, facilitating predictive maintenance and reducing the need for manual cabinet inspections.

• Compact Slot Utilization: The slim 1.0-inch width allows for maximum I/O density within the nest. This compact form factor enables the integration of more output points without requiring additional cabinet expansion, directly reducing hardware costs and space requirements.

FAQs

• Is the Yokogawa ADM51-2 supplied as a new or refurbished unit?

  We supply the ADM51-2 strictly as 100% Brand New and Original equipment. Every unit arrives in its original manufacturer packaging with factory seals intact, ensuring zero previous usage and peak reliability for your DCS.

• Can I use the ADM51-2 in both CENTUM CS and CENTUM VP systems?

  Yes. The ADM51-2 maintains full compatibility across both CENTUM CS and CENTUM VP platforms. It integrates seamlessly into existing RIO/FIO nests without requiring firmware modifications in most standard configurations.

• What is the maximum current capacity for the output points?

  Each of the 16 channels supports a maximum current of 0.5 A. If your field device (such as a large motor contactor) requires higher current, you must use an interposing relay to protect the ADM51-2 circuitry from overload.

• Does the card support outdoor installation?

  The ADM51-2 carries a 0°C to 50°C operating temperature rating. For outdoor applications, you must install the card inside a temperature-controlled, IP-rated enclosure to prevent condensation and protect the 5-90% RH humidity limits.
