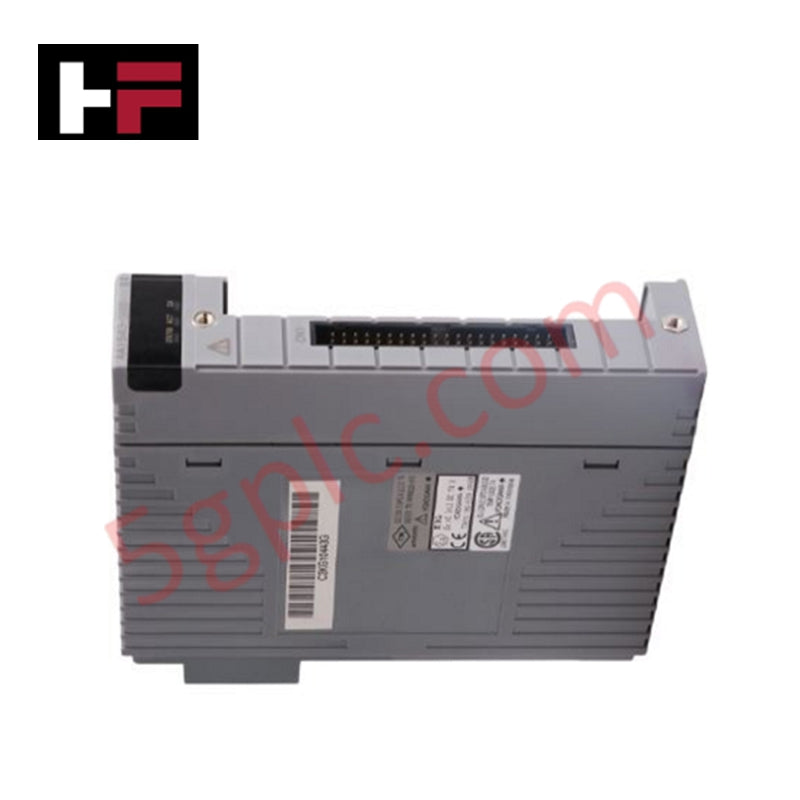

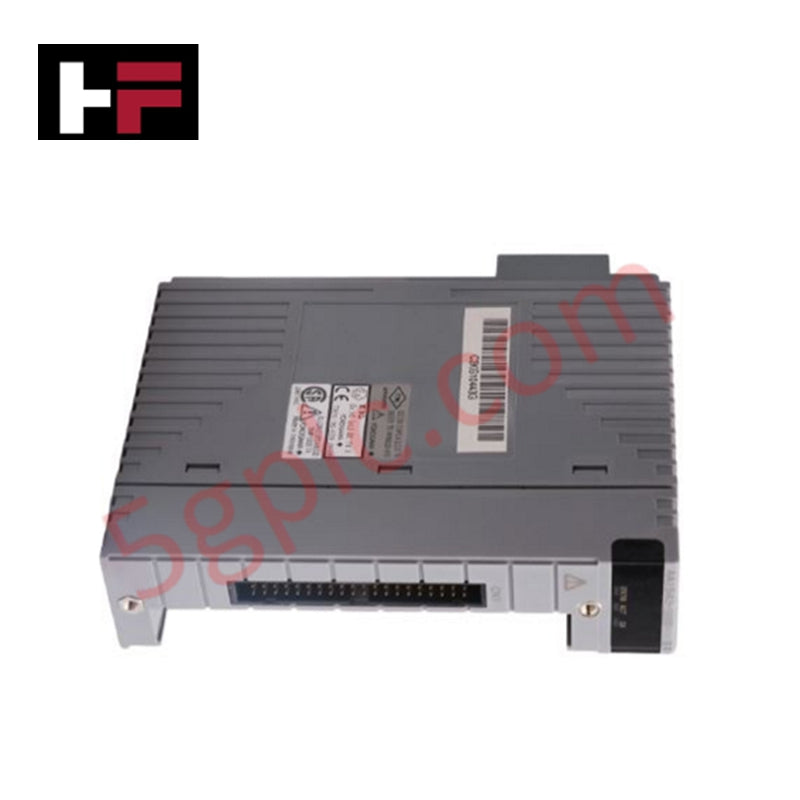

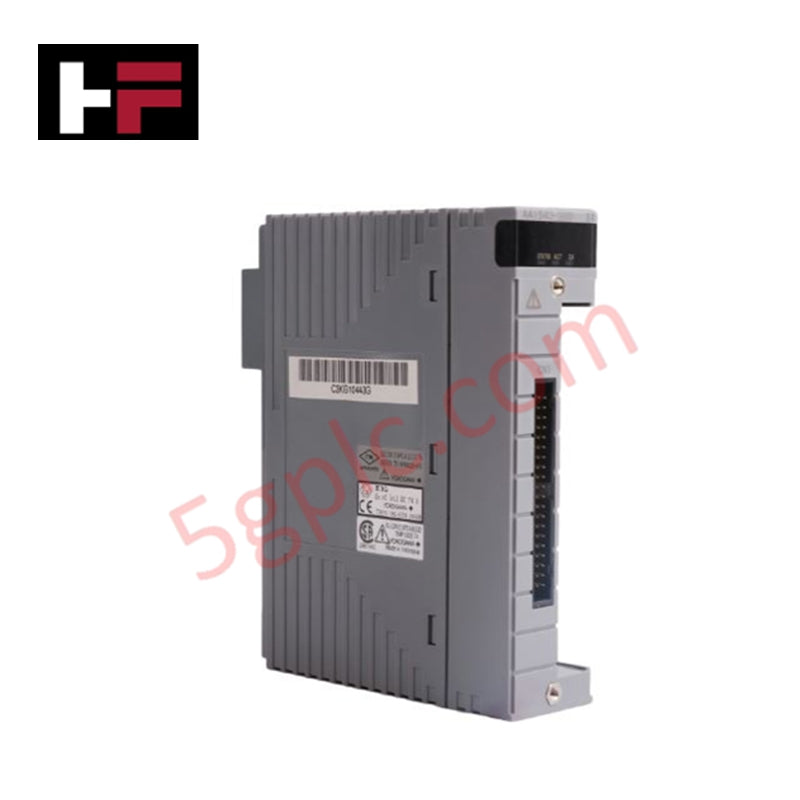

Yokogawa AAR181-S00 CENTUM VP/FIO Analog Input Module

Product Overview

The Yokogawa AAR181-S00 functions as a high-density analog input interface for the CENTUM VP and CS 3000 FIO (Field network I/O) systems. This module provides 16 isolated channels to capture standard 4 to 20 mA signals from field transmitters, including pressure, flow, and level sensors. It converts these analog currents into high-resolution digital data for the distributed control system (DCS) to process. We supply this module as 100% brand new, original factory equipment to ensure maximum measurement accuracy and system stability for your industrial processes.

Part Number Breakdown: AAR181-S00

• AAR181: Analog Input Module (4 to 20 mA, 16-channel, Isolated).

• -S: Standard type for general industrial applications.

• 0: Always 0 (Standard configuration).

• 0: Basic type without specialized conformal coating.

Technical Specifications

• Manufacturer: Yokogawa

• Input Signal: 4 to 20 mA DC

• Number of Channels: 16 (Isolated)

• Input Impedance: 250 Ω

• Signal Resolution: High-precision A/D conversion for process variables

• Isolation: Channel-to-system and channel-to-channel isolation

• Power Consumption: Optimized for dense FIO rack configurations

• Shipping Weight: 1.5 kg

• Condition: 100% Brand New Original

Engineering Advantages

The AAR181-S00 solves complex signal acquisition challenges through superior hardware engineering and high-density integration:

• Total Signal Isolation: This module employs comprehensive isolation between every channel and the system backplane. This architecture prevents ground loops and blocks electrical surges from the field, ensuring that a single faulty transmitter does not affect the remaining 15 channels or damage the core DCS hardware.

• High-Density Cabinet Utilization: The 16-channel design maximizes the I/O capacity of each FIO nest. This allows engineers to consolidate field wiring into fewer cabinets, significantly reducing the hardware footprint and the total cost of installation.

• Robust EMI Mitigation: Yokogawa utilizes an industrial-grade, EMI-resistant housing. This hardware design blocks electromagnetic interference from nearby variable frequency drives (VFDs) and heavy machinery, ensuring your 4-20 mA process data remains stable and noise-free.

• Precision Measurement Accuracy: The integrated A/D converters deliver a high signal-to-noise ratio. This allows the DCS to detect even the slightest variations in process parameters, enabling tighter control loops and improved product quality.

FAQs

• Does the AAR181-S00 provide power to the transmitters?

  This module typically acts as a sink for 4-20 mA signals. You must ensure the field loop has an appropriate power source, either through a separate distributor or an integrated power supply within the loop, to drive the current signal to the module.

• Can I use this module with Yokogawa Centum CS 3000?

  Yes. The AAR181-S00 remains fully compatible with both Yokogawa Centum CS 3000 and the newer Centum VP platforms that utilize the FIO architecture.

• How does this module handle overcurrent on a specific channel?

  The module includes internal protection circuitry that limits current draw. If a field device fails and tries to pull excessive current, the module protects the system backplane from damage.

• Is this product a genuine Yokogawa component?

  We guarantee that every AAR181-S00 we ship is 100% brand new and original. Each unit arrives in its original factory packaging and includes our standard 1-year warranty.
