Product Details

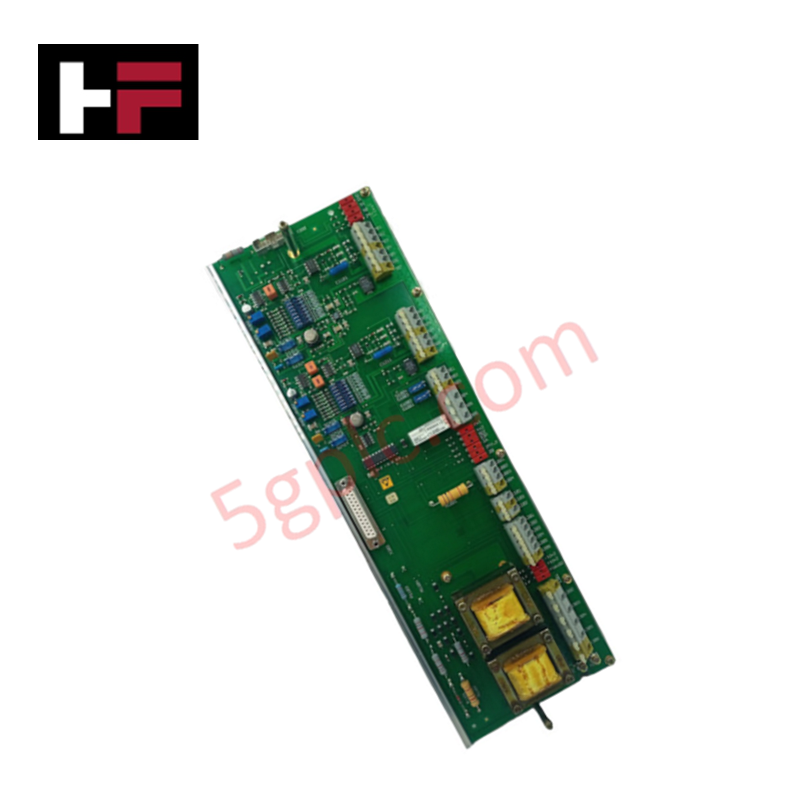

Configured for precision measurement processing and system control execution in ABB high-voltage variable frequency drive platforms, the ABB UA C318 AE HIEE300744R0001 (UA C318 AE Mainboard) provides direct physical/electrical execution. The board functions as a measuring interface within the drive subrack architecture, executing signal acquisition, parameter evaluation, and high-speed data transfer to central processing units. It condition voltage, current, and feedback signals from high-power conversion circuits to maintain deterministic motor control loops.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | UA C318 AE HIEE300744R0001 |
| Brand | ABB |
| Origin | Switzerland |
| Weight | 1.90 kg (4.19 lbs) net |
| Dimensions | Standard subrack slot board dimensions |
| Operating Temp | 0 to +60 deg C (Storage: -40 to +70 deg C) |
| Power Consumption | Supplied via drive chassis internal backplane |
| Module Type | Measuring Interface / Drive Mainboard |
| System Platform | ABB High Voltage Variable Frequency Drive Systems |
| Degree of Protection | IP00 (installed inside IP20 subrack enclosure) |
Backplane Bus Communication Velocity and Firmware Flash Compatibility
The UA C318 AE mainboard communicates across the drive backplane bus, maintaining high backplane bus communication velocity to ensure real-time synchronization between measurement channels and control logic. Integrated firmware flash compatibility supports onboard non-volatile memory retention of operational code and parameter tables across drive restart cycles. High-throughput bus interface circuits prevent signal propagation delays during high-frequency pulse-width modulation (PWM) switching sequences.
Frequently Asked Questions
Q: Can the UA C318 AE mainboard be hot-swapped while the high-voltage drive rack is energized?
A: No. All main power supplies and DC bus voltages must be completely isolated and discharged before removing or installing the board to prevent electrical arc damage to edge contacts and logic circuits.
Q: How does the board handle signal noise from high-voltage drive components?
A: The circuit board incorporates internal ground planes, optocouplers, and signal suppression filters to isolate sensitive measurement channels from electromagnetic interference (EMI) generated by power switches.
Q: What is the primary role of this board within the drive subrack assembly?
A: The card functions as a primary measuring interface, acquiring analog feedback from field sensors and converting physical values into digital signals for backplane transmission.
Field Installation Guidelines
- Ensure the high-voltage drive cabinet is fully powered down, isolated, and that DC link capacitors are completely discharged prior to installation.
- Align the board edges accurately with the card guides in the designated chassis slot.
- Push the mainboard firmly and evenly into the slot until the rear multi-pin connector fully mates with the backplane header.
- Secure the front panel mounting fasteners to 0.4 Nm to maintain mechanical retention and ensure continuous electrical grounding to the frame.
- Terminate all external measurement and feedback wiring using shielded twisted-pair cables, bonding shields directly to the panel earth bar near the enclosure entry.
