Product Details

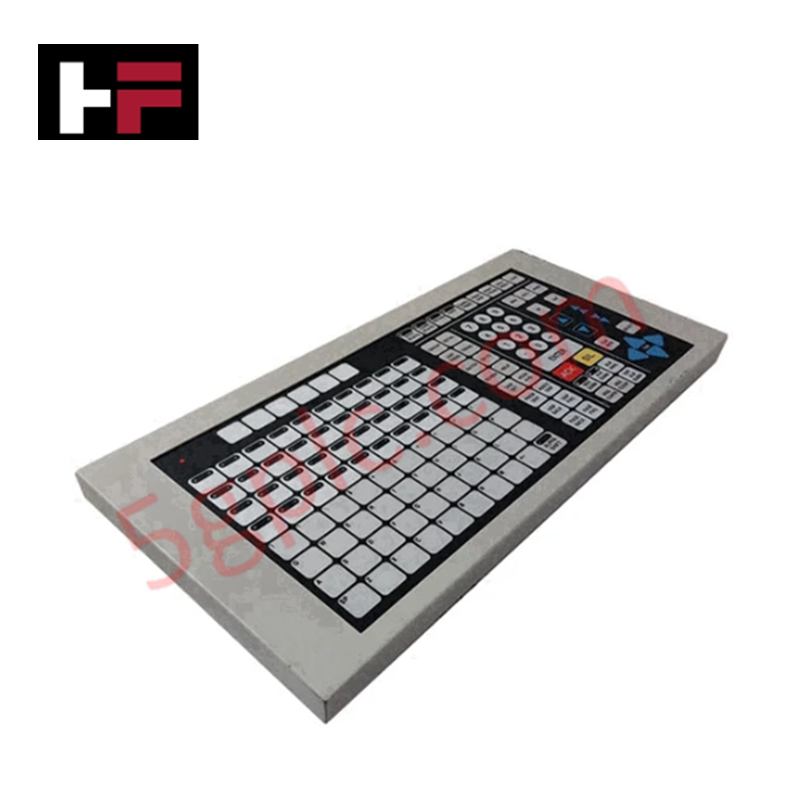

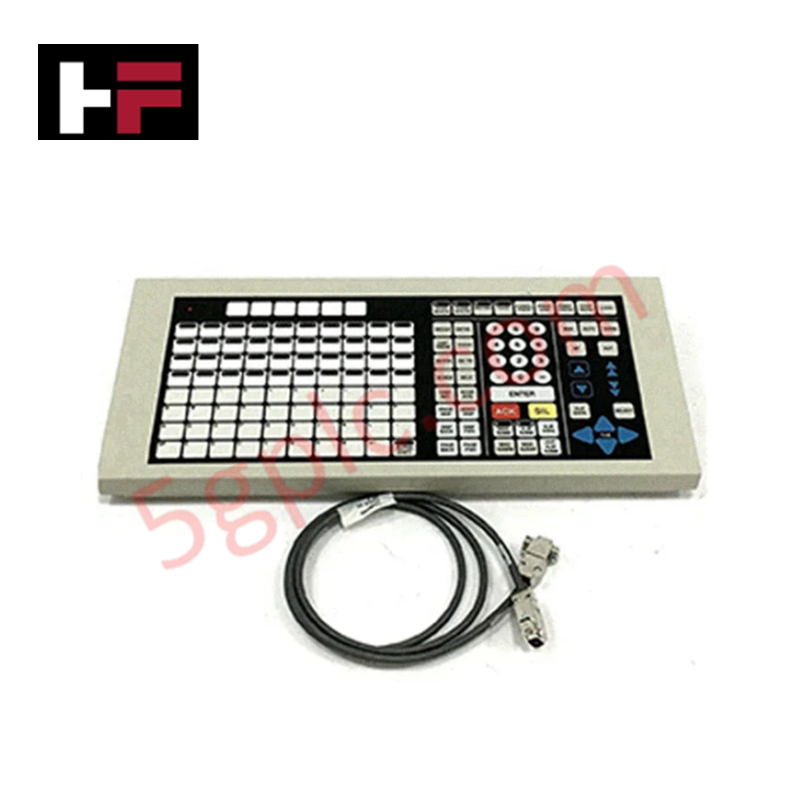

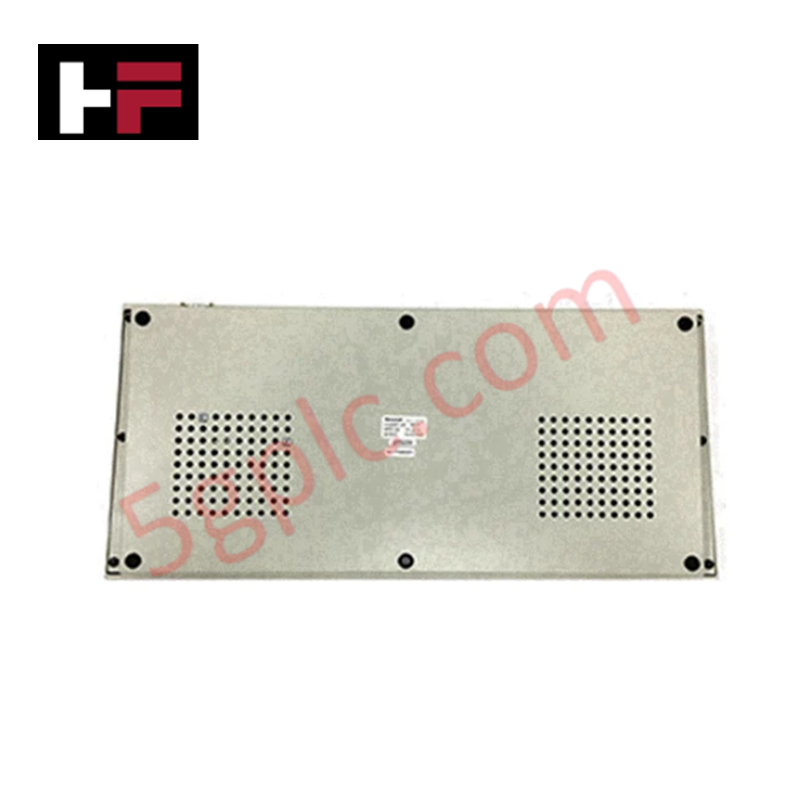

The Honeywell TP-OPADP1-200, also cataloged as the TP-OPADP1 Operator Enhanced Panel Adapter, operates as a dedicated hardware component for power step-down conversion and signal interface bridging within Honeywell T7000, T5000, and PX series control panel architectures. It provides a stabilized 24 VDC output from a 240 VAC mains supply, encased in an IK10-rated enclosure for deskside mounting configurations.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TP-OPADP1-200 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 0.5 kg (1.1 lbs) |
| Dimensions | 142 mm x 86 mm x 55 mm |
| Operating Temp | -10 deg C to 50 deg C |
| Storage Temp | -20 deg C to 70 deg C |
| Humidity | 0% to 95% RH (non-condensing) |
| Input Voltage | 240 VAC |
| Output Voltage | 24 VDC |
| Output Current | 2 A |
| Impact Rating | IK10 |
| Mounting | Deskside Mount |
| Power Consumption | 48 W (Nominal Output Load) |
Channel Isolation and Power Distribution Architecture
The Honeywell TP-OPADP1-200 integrates dedicated galvanic channel isolation between the high-voltage AC mains input and downstream low-voltage DC control electronics. By maintaining strict electrical separation, the unit suppresses potential common-mode ground loops and line-transient propagation across the T7000, T5000, and PX operator interface networks. The power supply stage utilizes active regulated loop filtering to maintain stabilized 24 VDC bus voltage under fluctuating load conditions, preventing ripple-induced interference in sensitive DCS communication circuits.
Frequently Asked Questions
Q: What is the impact protection rating and physical envelope tolerance for this adapter?
A: The adapter features an IK10 impact resistance rating, providing mechanical protection against external shock up to 20 Joules. The unit measures 142 mm x 86 mm x 55 mm and weighs 0.5 kg.
Q: Can the output power stage accommodate higher voltage DC inputs or varying AC supply ranges?
A: No. The internal converter circuit is rated specifically for a 240 VAC nominal input to supply continuous 24 VDC at up to 2 A continuous load. Operating outside this voltage threshold may result in thermal shutdown or power stage destabilization.
Field Installation Guidelines
- Mount the unit onto a flat deskside surface using approved mechanical fasteners through the provided mounting slots.
- Verify that line voltage is fully de-energized before connecting the 240 VAC primary power leads to the input terminal block.
- Ensure the protective earth (PE) ground wire is connected directly to the panel chassis ground stud with low impedance (< 1 Ohm) to minimize electrical noise.
- Route 24 VDC output wiring away from high-voltage AC cables to reduce inductive electromagnetic interference.
- Inspect all physical wire terminations for tight engagement before energizing the 240 VAC supply line.
