Product Details
Overview

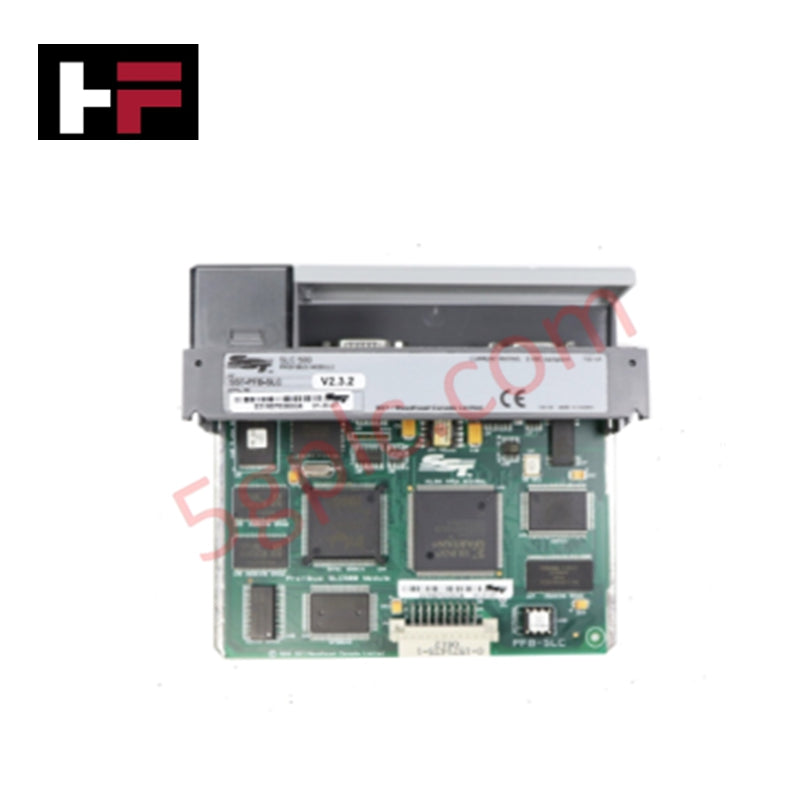

The Allen-Bradley SST-PFB-SLC is a PROFIBUS DP remote I/O scanner module designed for seamless integration into SLC and CompactLogix systems. It enables fast, reliable communication between the controller and distributed I/O devices over PROFIBUS DP networks.
Engineered for high-availability industrial control systems, this scanner module supports multiple remote I/O configurations, providing real-time monitoring and control. The module ensures precise data exchange with minimal latency, allowing optimized distributed automation architectures.
Technical Specifications
-
Manufacturer: Allen-Bradley / Rockwell Automation
-
Model Number: SST-PFB-SLC
-
Product Type: PROFIBUS DP Remote I/O Scanner Module
-
Communication Protocol: PROFIBUS DP
-
Supported Controllers: SLC Series, CompactLogix systems
-
Power Supply: Backplane powered via SLC rack
-
Maximum I/O Nodes: Depends on network configuration, up to PROFIBUS specification limits
-
Input Voltage: 5 V DC via backplane
-
Power Dissipation: Typical 5 W, maximum 8 W
-
Network Connection: Shielded PROFIBUS DP cable via standard 9-pin D-sub
-
Data Transfer Rate: Up to 12 Mbps (PROFIBUS DP standard)
-
Isolation: Field-side to system reinforced isolation for safe operation
-
Operating Temperature Range: 0–60°C (32–140°F)
-
Humidity: 5–95% RH, non-condensing
-
Dimensions (L×W×H): 120 × 45 × 30 mm (approx.)
-
Weight: 0.25 kg (0.55 lbs)
Applications
-
Integration of remote I/O devices over PROFIBUS DP networks
-
Distributed control systems requiring high-speed communication
-
SLC and CompactLogix automation architectures
-
Replacement or expansion of existing Allen-Bradley PROFIBUS DP networks
FAQ
Q1: Which controllers are compatible with SST-PFB-SLC?
A1: Compatible with SLC series and CompactLogix controllers.
Q2: What is the maximum network speed?
A2: Supports up to 12 Mbps as per PROFIBUS DP standards.
Q3: How many remote I/O modules can be connected?
A3: Depends on the PROFIBUS network configuration and standard limits.
Q4: What is the operating temperature range?
A4: Safe operation between 0–60°C (32–140°F).
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
