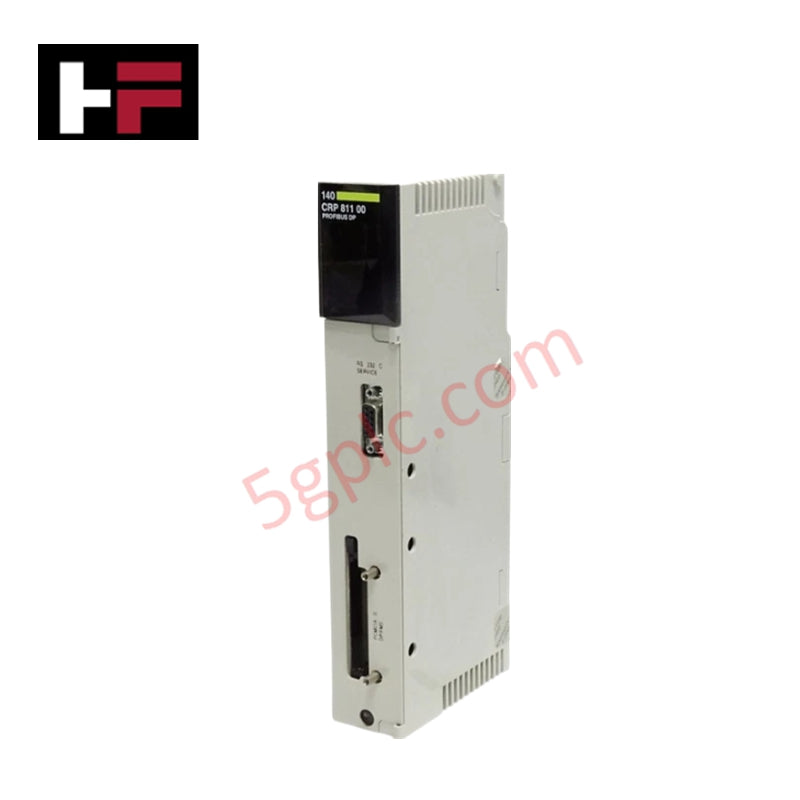

Schneider Electric Modicon Quantum 140CRP81100 PROFIBUS DP Interface Module

Product Description

The 140CRP81100 from Schneider Electric is a high-performance PROFIBUS DP interface module designed for the Modicon Quantum series. It enables reliable and efficient communication between Quantum PLCs and PROFIBUS DP networks, providing robust integration for complex industrial control systems.

Technical Specifications

• Model + Part Number: 140CRP81100

• Manufacturer: Schneider Electric

• Product Series: Modicon Quantum

• Product Type: PROFIBUS DP Interface Module

• Communication Protocol: PROFIBUS DP

• Number of Ports: 1

• Maximum Baud Rate: 12 Mbps

• Bus Current Requirement: 350 mA

• Power Dissipation: 1.85 W

• Operating Temperature Range: 0°C to 60°C

• Storage Temperature Range: -40°C to 85°C

• Dimensions: 9.0 cm H × 32.0 cm W × 33.0 cm L

• Weight: 0.99 lbs

Applications
The 140CRP81100 module is suitable for connecting Modicon Quantum PLCs to PROFIBUS DP networks in automation systems, enabling high-speed data exchange and network integration for manufacturing, process control, and industrial monitoring applications.

FAQ
Q: How many communication ports does this module have?
A: 1 PROFIBUS DP port.
Q: What is the maximum supported baud rate?
A: Up to 12 Mbps.
Q: What are the operating temperature limits?
A: 0°C to 60°C for operation and -40°C to 85°C for storage.
