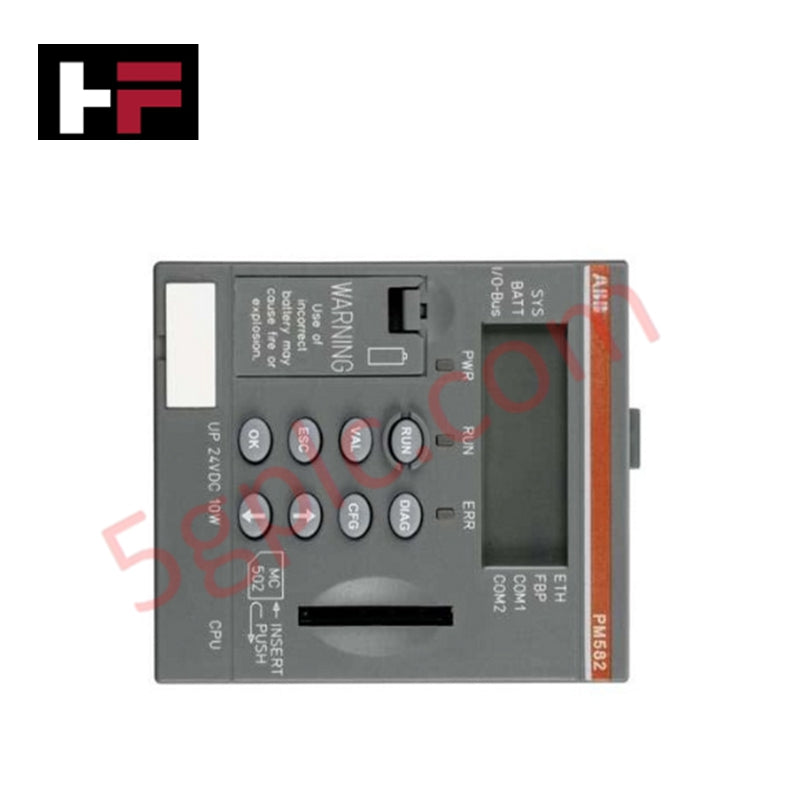

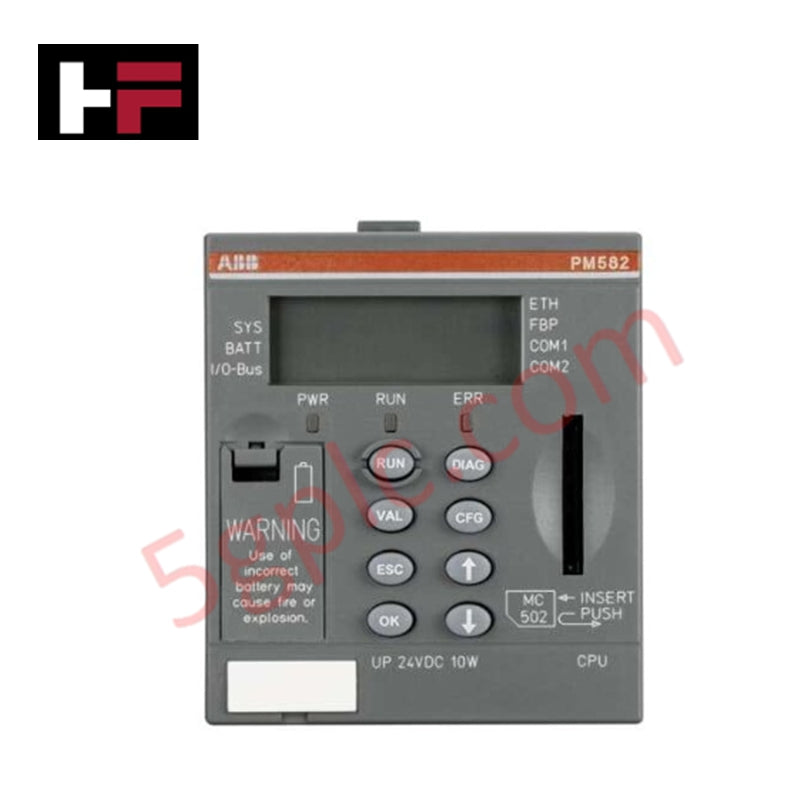

PM582-XC 1SAP340200R0201 | ABB AC500 eXtreme Conditions PLC Processor

Product Overview

The ABB PM582-XC (1SAP340200R0201) serves as the ruggedized core for the AC500 eXtreme Conditions (XC) platform. Engineered specifically for harsh environments where standard electronics fail, this "XC" variant delivers a wide operating temperature range and enhanced resistance to vibration and corrosive gases. It features 512kB of user program memory and provides dual configurable serial interfaces (RS232/485) plus an FBP interface for fieldbus versatility. We supply this unit as 100% Brand New and Original, ensuring your critical infrastructure in outdoor, maritime, or extreme industrial settings operates with factory-certified reliability.

Technical Specifications

The PM582-XC combines high-speed computational power with a reinforced hardware architecture:

• Processor Type: AC500-XC (Extreme Conditions) Modular CPU

• User Program Memory: 512 kB

• Total Memory Size: 928 kB (including RAM for user data)

• Processing Time: 0.05 µs (0.00005 ms) per instruction

• Operating Temperature: -30 °C to +70 °C

• Storage Temperature: -40 °C to +85 °C

• Communication Interfaces: 2x RS232/RS485 (Configurable), 1x FieldBusPlug (FBP)

• Display: Integrated Monochrome LCD for local diagnostics

• Supply Voltage: 24 V DC (Range: 20.4 ... 28.8 V DC)

• Protection Rating: IP20

• Net Weight: 0.137 kg

Engineering Advantages

• Extended Thermal Range Performance: The PM582-XC maintains full operational stability from -30 °C to +70 °C. This hardware eliminates the need for expensive cabinet heating or cooling systems in wind turbines, oil rigs, and high-altitude installations.

• Rapid Cycle Execution: A deterministic processing time of 0.05 µs ensures the CPU handles complex mathematical algorithms and high-speed logic sequences without jitter. This precision supports time-critical processes in remote or mobile machinery.

• Integrated Local Diagnostics: The monochrome LCD screen allows field technicians to view system status, firmware versions, and error codes directly at the mounting rail. This visibility speeds up troubleshooting in remote sites where laptop access is restricted.

• Universal Fieldbus Integration: The on-board FieldBusPlug (FBP) interface enables the CPU to adapt to PROFIBUS DP, CANopen, or DeviceNet simply by switching the external connector. This flexibility simplifies the spare parts inventory for global fleet management.

• Vibration and Corrosion Resistance: As part of the XC range, this module includes specialized coatings and mechanical reinforcement. It withstands higher shock levels and salt mist environments, significantly extending the Mean Time Between Failures (MTBF) compared to standard PLC components.

FAQs

• What does the "-XC" suffix specifically mean?

  The "-XC" stands for "eXtreme Conditions." These modules undergo specialized manufacturing processes to handle extreme temperatures, high humidity, corrosive gases (like H2S), and increased mechanical vibration beyond the capabilities of the standard PM582.

• Is the PM582-XC software-compatible with the standard PM582?

  Yes. You use the same ABB Automation Builder software and IEC 61131-3 programming languages. The hardware footprint remains identical, allowing you to upgrade a standard system to an XC system without rewiring.

• Does the PM582-XC require a special Terminal Base?

  While it fits standard S500 terminal bases, we strongly recommend using "XC" version terminal bases (e.g., TU516-XC) to ensure the entire assembly meets the extended temperature and environmental specifications.

• Can I expand the I/O of this processor?

  The PM582-XC supports the full range of S500 and S500-XC expansion modules. You attach these modules to the local bus of the terminal base to add digital, analog, or specialty I/O functions as needed.
