Product Details
Overview

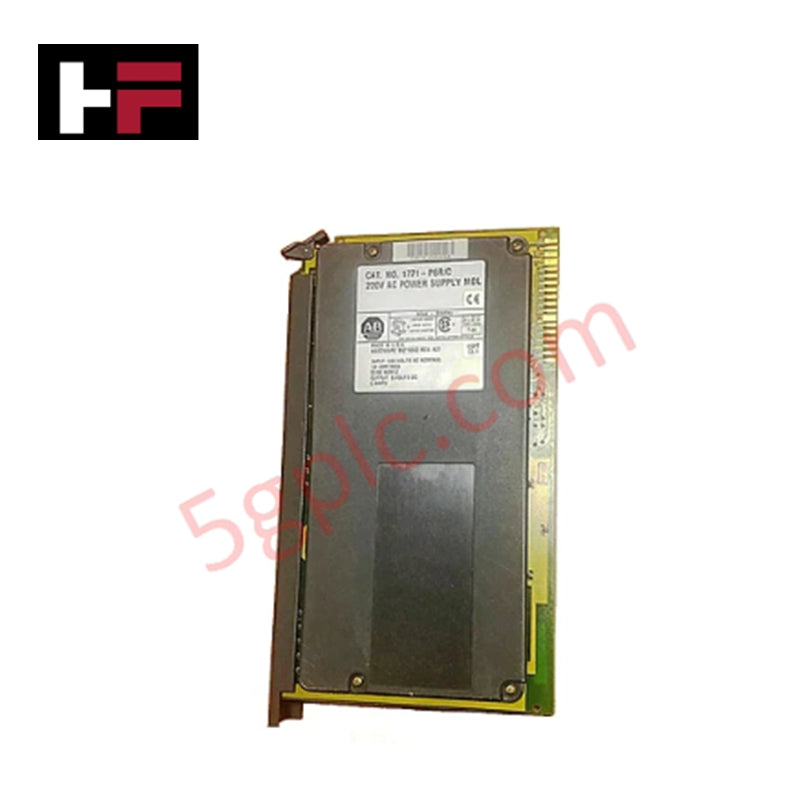

The Allen-Bradley 1771-P6R C is a redundant power supply module from the PLC-5 series, designed to provide stable 5V DC output at 8A for industrial control systems. Its redundant design ensures continuous operation, making it ideal for critical PLC5 applications where uptime and reliability are essential.
Technical Specifications
-
Manufacturer: Allen-Bradley
-
Model & Part Number: 1771-P6R C
-
Input Voltage: 220V AC (operating range 194–264V AC)
-
Maximum Input Power: 59 W (real), 92 VA (apparent), 148 VA (transformer load)
-
Output Voltage & Current: 5V DC at 8A
-
Frequency: 47–63 Hz
-
Fuse: 1.5A, 250V, slow-blow
-
Cabling: Redundant cable included
-
Chassis Location: Occupies 1 slot in a 1771 chassis
Features
-
Configurable Jumpers: Supports remote or local voltage sensing
-
Indicators: Yellow "NO-REDUNDANT" and Green "P/S ACTIVE" for operational status
-
ID Switches: Assign unique module ID for redundancy configuration
-
Terminal Blocks: Includes 3-position and 5-position terminal blocks for flexible wiring
Applications
-
Providing reliable 5V DC power for PLC-5 systems
-
Redundant power solutions for critical industrial control operations
-
Systems requiring uninterrupted operation under high-demand conditions
FAQ
Q: What is the output capacity of the 1771-P6R C?
A: The module delivers 5V DC at a maximum of 8A to the connected PLC system.
Q: Can it operate under redundant configurations?
A: Yes, the 1771-P6R C is designed for redundant setups with ID switches for unique identification.
Q: What indicators show module status?
A: A yellow "NO-REDUNDANT" LED indicates redundancy absence, and a green "P/S ACTIVE" LED shows active power output.
Q: What type of cabling is included?
A: The module comes with a redundant cable for easy connection to other power supply units.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
