Product Details

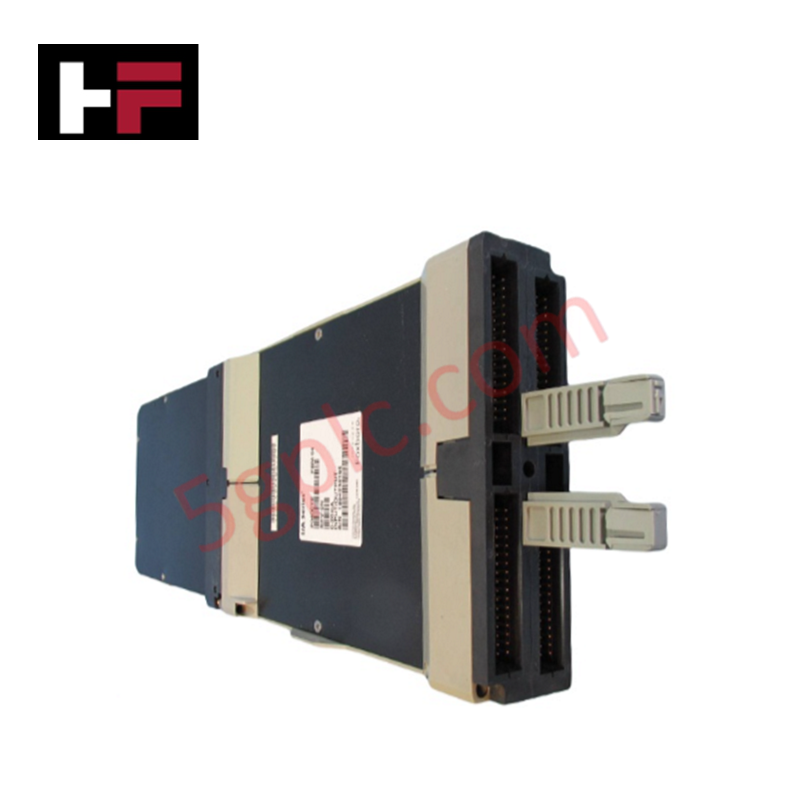

The Foxboro P0400YE, also cataloged as the P0400YE 0-20mA I/O Interface Module, operates as a dedicated hardware component for analog signal processing and control loop execution within Foxboro I/A Series DCS networks. Powered by a 24 VDC (+/-10%) supply, the module provides 4 analog input channels (0-20 mA) and 4 analog output channels (0-20 mA) with 16-bit resolution and response times under 100 ms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | P0400YE |
| Brand | Foxboro |
| Origin | USA |
| Weight | 1.5 kg |
| Dimensions | 4.0 x 8.0 x 6.0 inches |
| Operating Temp | 0 deg C to +60 deg C |
| Power Consumption | 24 VDC (+/-10%) operating supply |
| Module Type | FBM4 0-20mA Input/Output Interface Module |
| Analog Inputs | 4 channels (0-20 mA, 16-bit resolution) |
| Analog Outputs | 4 channels (0-20 mA, 16-bit resolution) |
| Signal Accuracy | +/-0.1% of full scale |
| Electrical Isolation | 1500 V channel-to-system galvanic isolation |
| System Compatibility | Foxboro I/A Series System |
Channel-to-Channel Isolation and Loop Protocol Connectivity
The Foxboro P0400YE FBM4 module relies on 1500 V galvanic isolation between field input/output channels and internal system logic circuits to eliminate ground potential loops and surge voltages. Designed for high-integrity loop execution, the module maintains strict analog linearity across 0-20 mA current signals, integrating with 4-20 mA HART loop protocol devices without introducing signal drift or cold junction compensation (CJC) offsets at field termination blocks.
Frequently Asked Questions
Q: What is the isolation rating between the field signals and the system backplane on the P0400YE module?
A: The module provides 1500 V galvanic isolation to isolate field input/output channels from internal system electronics and backplane circuitry.
Q: Can the P0400YE module handle both signal acquisition and control output concurrently?
A: Yes, the unit contains 4 independent 0-20 mA analog input channels and 4 independent 0-20 mA analog output channels operating simultaneously with a response time under 100 ms.
Field Installation Guidelines
Mount the P0400YE module into its assigned baseplate slot within the Foxboro I/A Series enclosure, ensuring the module connector seats fully before securing the latching mechanism. Verify that the 24 VDC power source is stabilized within the +/-10% voltage allowance before energizing the module.
All field signal cables must be routed using individually shielded twisted-pair wiring separated from high-voltage AC power lines. Connect cable drain shields directly to the main cabinet ground bar, and ensure all conduit entry points retain a minimum of 5 full threads of engagement on NPT fittings.
