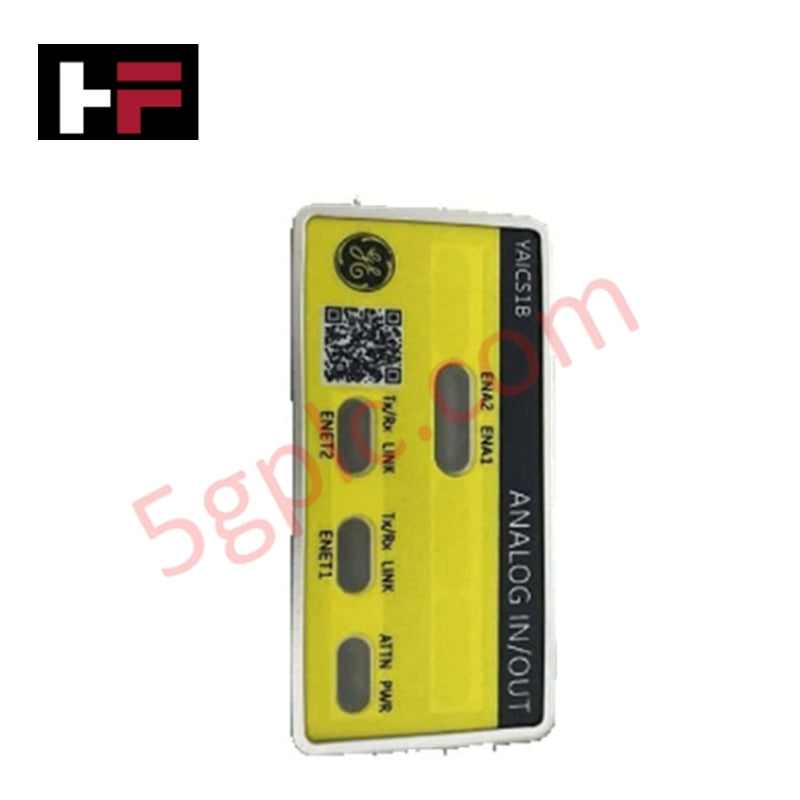

IS420YAICS1B | General Electric Mark VIe Analog I/O Pack

Product Overview

The IS420YAICS1B functions as a high-precision Analog I/O Pack within the General Electric Mark VIe Turbine Control System. This Brand New original module digitizes critical field data for the management of wind, gas, and steam turbine assemblies. By converting analog sensor signals into high-resolution digital data, the IS420YAICS1B ensures the Mark VIe controller receives accurate feedback for governor control, temperature monitoring, and pressure regulation.

Technical Specifications

The IS420YAICS1B utilizes high-speed conversion circuitry to maintain signal integrity in demanding power generation environments.

Engineering Advantages

• Superior Signal Granularity: The integrated 16-bit Analog-to-Digital Converter (ADC) provides exceptional resolution for sensitive turbine parameters. This high-bit depth allows the control system to detect minute fluctuations in pressure or flow, preventing oscillations and improving overall heat rate efficiency.

• Low Thermal Footprint: The module operates with a typical power draw of only 5.3 Watts. This low consumption reduces heat buildup within the control cabinet, extending the lifespan of adjacent electronic components and eliminating the need for specialized forced-air cooling.

• Ruggedized Wide-Range Operation: GE engineered the IS420YAICS1B to withstand extreme industrial climates. It maintains full operational accuracy from -40°C to +70°C, making it suitable for unconditioned control rooms in both arctic and desert environments.

• Streamlined Form Factor: The narrow 1.65-inch width allows for high-density mounting on the terminal board. This compact design solves the challenge of limited cabinet space, enabling engineers to maximize I/O count without expanding the physical footprint of the control suite.

FAQs

• Is this IS420YAICS1B module a factory-new original?

  Yes. We supply only 100% Brand New original GE equipment. Each unit arrives in original factory packaging, ensuring the hardware meets the latest revision standards and functional safety requirements.

• How does the 16-bit resolution impact turbine performance?

  The 16-bit ADC delivers 65,536 discrete levels of signal interpretation. Compared to lower-resolution modules, the IS420YAICS1B provides the fine-tuned data necessary for the Mark VIe algorithms to maintain stable turbine speeds and precise fuel-to-air ratios.

• Can the IS420YAICS1B operate in high-humidity environments?

  While the module supports a wide temperature range, you must install it in an enclosure that prevents direct condensation. The ruggedized surface-mount technology resists common industrial contaminants, but maintaining a clean, dry environment ensures maximum MTBF (Mean Time Between Failures).

• Does this pack support hot-swapping within the Mark VIe system?

  The Mark VIe architecture generally supports the replacement of I/O packs while the system is powered. However, you must follow the specific procedures in the GEH-6721 manual to ensure the control loop remains stable during the transition.
