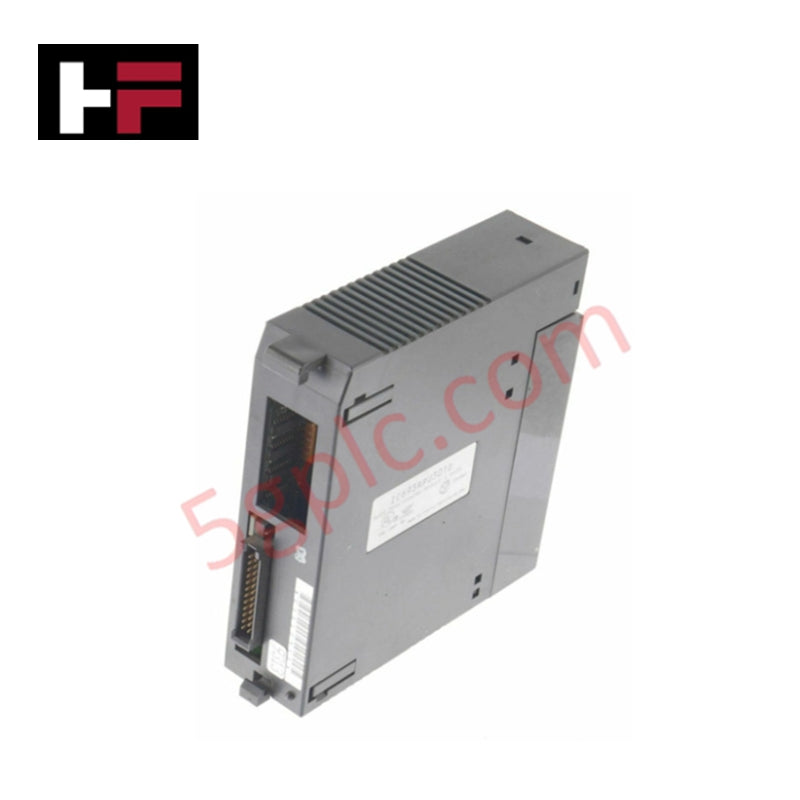

IC693APU301 | GE Fanuc | Series 90-30 Single Axis Positioning Module

Overview

The IC693APU301 is a single-axis positioning module engineered for Series 90-30 PLC systems, providing precise servo control with fast loop updates and flexible operational modes, suitable for demanding motion control applications.

Technical Specifications

• Manufacturer: GE Fanuc Emerson

• Model / Part Number: IC693APU301

• Product Type: Single Axis Positioning Module

• Series: Series 90-30

• Supported Axes: 1 axis per module

• Servo Loop Update: 1 millisecond

• Operating Modes: Standard mode and Follower mode

• Communication Ports: 1 axis connection, 25-pin servo interface

• LED Indicators: EN1, EN2, STST, OK, CFG

• Connector Types: 24-pin high-density, 25-pin D-type

• Slot Width: Single slot

• Compatible CPUs: CPU 311, CPU 313, CPU 323, CPU 331 and higher

• Compatibility: Fully compatible with Series 90-30 PLC racks

• Weight: 1.0 lb (0.45 kg)

• Lifecycle Status: Discontinued / Obsolete

Applications

• Single-axis motion control in automated machinery

• Servo positioning for conveyor, robotics, or precision tooling

• Integration into Series 90-30 PLC systems for modular expansion

FAQ

Q: How fast is the servo loop update on IC693APU301?
A: The module supports a 1 millisecond servo loop update for responsive axis control.

Q: Which CPUs are compatible with this axis module?
A: Compatible with CPU 311, 313, 323, 331 and higher models within the Series 90-30 lineup.
