IC200CHS025 | GE Fanuc VersaMax Compact Spring-Style Vertical I/O Carrier

Product Description

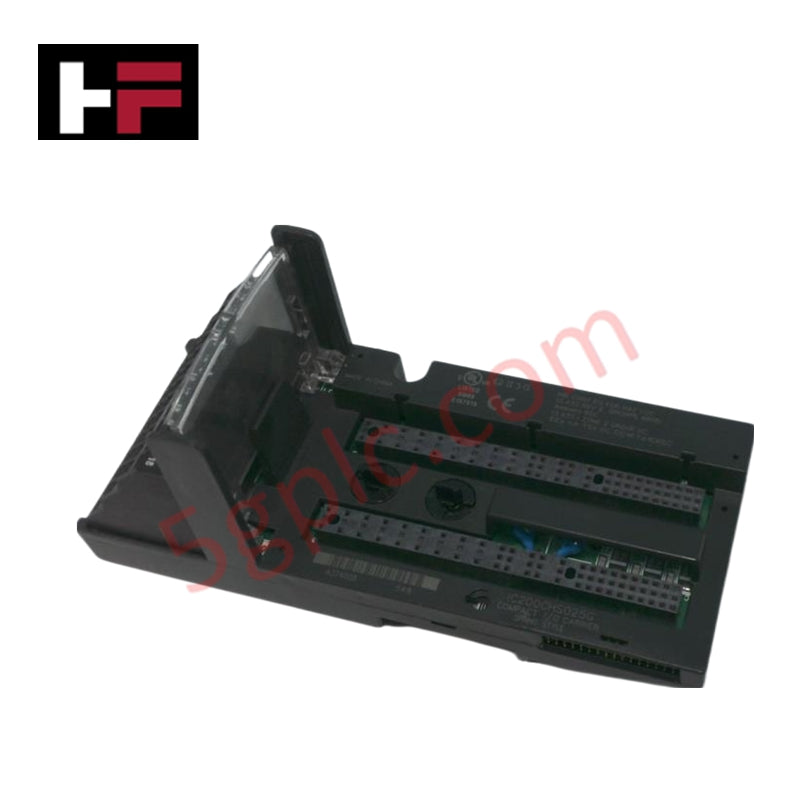

The GE Fanuc VersaMax IC200CHS025 Compact Spring-Style I/O Carrier is designed for efficient vertical mounting of VersaMax I/O modules. This carrier provides secure wiring connections, reliable backplane communication, and robust mechanical support, making it an essential component for modular automation systems.

Technical Specifications

• Model / Part Number IC200CHS025

• Manufacturer GE Fanuc Emerson

• Product Line VersaMax

• Product Type Compact Spring-Style I/O Carrier

• I/O Mounting Vertical orientation

• Terminals IEC box-style, 36 connections

• Single Wire Gauge AWG 14–22

• Dual Wire Gauge AWG 18

• Maximum Voltage 264 VAC

• Transient Tolerance 300 VAC

• Dimensions Length 163.5 mm, Width 66.8 mm, Depth 70 mm

• Spacing Vertical spacing 2 inches, horizontal spacing 1 inch

• Latch Hole Provides secure fastening of modules

• Keying Dials Ensure correct module installation

• Operating Temperature Range –40°C to 60°C

Application Scenarios

• Compact control panels requiring vertical I/O module installation

• Systems where efficient wiring and reliable backplane communication are critical

• Industrial environments needing secure fastening and proper module alignment

FAQ

Q: What type of mounting does the IC200CHS025 support?  A: It supports vertical mounting of VersaMax I/O modules.

Q: What is the maximum voltage rating?  A: The carrier supports up to 264 VAC with transient tolerance up to 300 VAC.

Q: How does the carrier ensure proper installation?  A: Keying dials and latch holes provide secure and accurate module alignment.

Q: What wire gauges are supported?  A: Single wires from AWG 14–22 and dual wires at AWG 18.

Comparison with Similar Models

• IC200CHS002: Standard I/O carrier with horizontal mounting

• IC200CHS006: Communication carrier with DIN rail mounting

• IC200CHS025: Compact spring-style carrier with vertical mounting and secure wiring
