Product Details

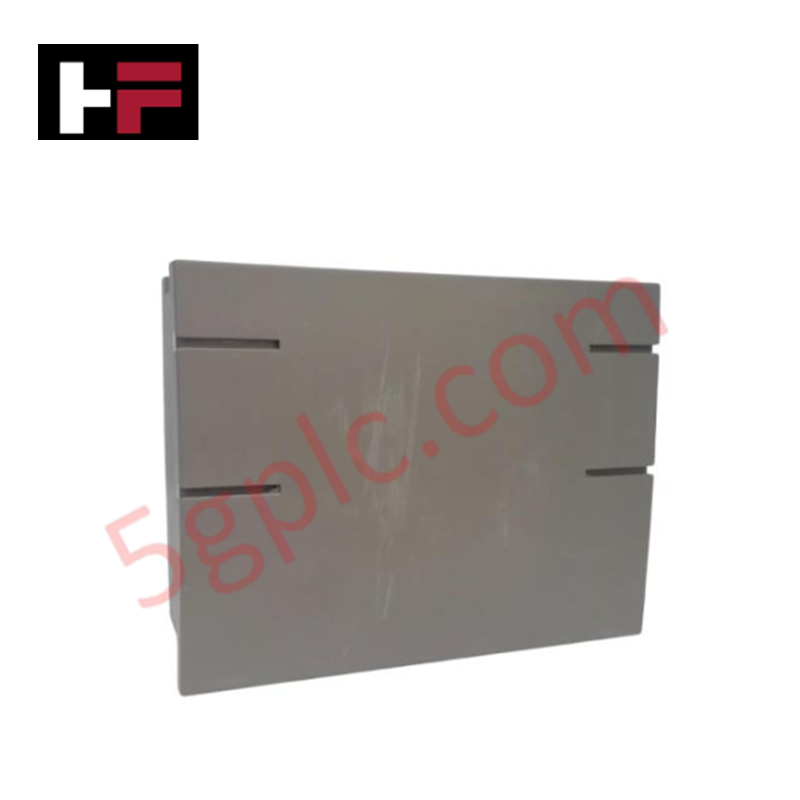

The Honeywell XCL5010, also cataloged as the XCL5010 Excell 500/600 Controll System (DDC EXCEL-500 Controller), operates as a dedicated hardware component for freely programmable direct digital control logic execution within building automation and machine control networks. This controller manages real-time point processing and loop control algorithms without intermediary signal degradation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | XCL5010 |
| Brand | Honeywell |
| Origin | Standard Industrial Manufacturing |
| Weight | 1.26 lbs (0.57 kg) |
| Dimensions | Standard Excel 500/600 Module Housing |
| Operating Temp | Standard Industrial Rating |
| Power Consumption | 24 VAC Supply Input |
| Controller Type | Freely Programmable DDC Controller |
| System Platform | Excel 500/600 Series |
Channel-to-Channel Isolation and Loop Protocol
The architecture of the Honeywell XCL5010 incorporates robust channel-to-channel isolation and supports 4-20 mA HART loop protocol integration pathways where applicable for field sensors and actuators. By maintaining strict galvanic separation between low-level analog inputs, control outputs, and the 24 VAC power supply circuitry, the controller prevents common-mode noise propagation and ground loops. Furthermore, cold junction compensation and internal bus buffering ensure precise signal scaling across complex building management networks.
Frequently Asked Questions
Q: What is the primary operational voltage required for the Honeywell XCL5010 controller?
A: The controller is engineered to operate on a 24 VAC power supply input within standard control panel enclosures.
Q: Can this controller module be hot-swapped while the system rack is energized?
A: Live extraction or insertion of DDC controller modules risks electrical transients, memory corruption, and loss of control loops. Power must be isolated prior to physical hardware maintenance.
Q: How does the controller interface with field input and output devices?
A: It executes freely programmable DDC logic, interfacing directly with field sensors and actuators through dedicated onboard or rack-mounted I/O termination channels.
Field Installation Guidelines
- Enclosure Mounting: Secure the controller module firmly onto standard DIN rails or backplate mounting studs inside a rated industrial or HVAC control cabinet.
- Power Wiring: Connect the 24 VAC supply lines to the designated input terminals, ensuring proper polarity and grounding compliance to prevent electrical faults.
- Signal Separation: Route low-voltage analog and communication cabling physically apart from high-voltage power lines and motor control circuits to minimize electromagnetic interference.
- Terminal Torquing: Tighten all screw terminal blocks securely to specified torque ratings to maintain low-resistance contact and prevent thermal hotspots.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
