Product Details
Product Overview

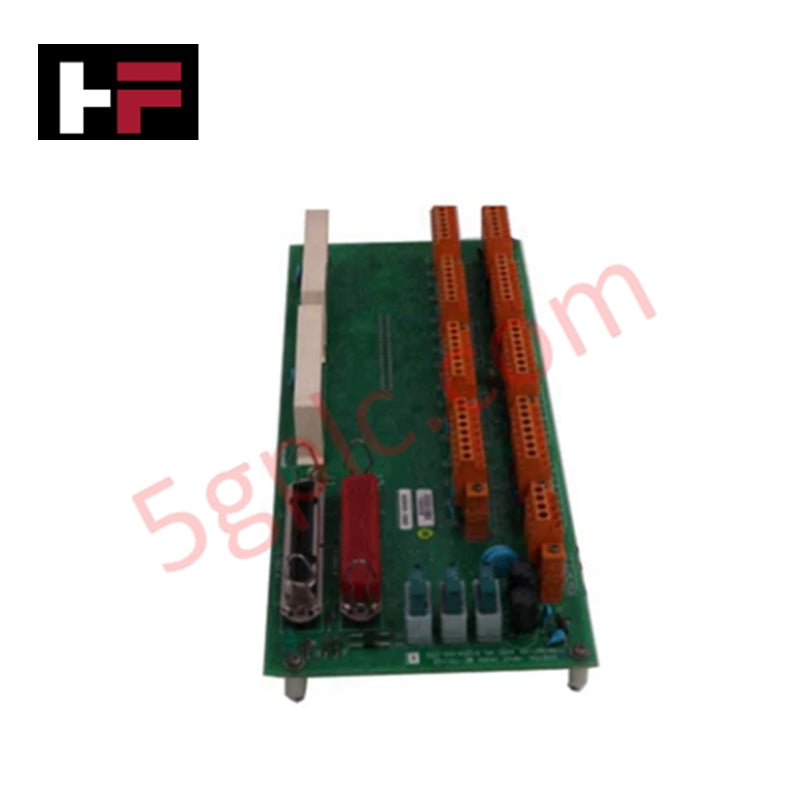

The Honeywell MC-TDIA22 (51304437-150) functions as a high-density, isolated digital input module for the Honeywell Experion PKS and legacy TDC 3000 control systems. This 100% Brand New and original hardware monitors discrete states from field devices such as limit switches, motor starters, and auxiliary contacts. By providing 32 input channels in a compact footprint, it serves as the primary data acquisition layer for binary process states, ensuring high-speed logic synchronization within the Distributed Control System (DCS).
Technical Specifications
| Feature | Specification |
| Manufacturer | Honeywell |
| Model Number | MC-TDIA22 |
| Part Number | 51304431-175 |
| Input Channels | 32 Channels |
| Input Voltage | 24 VDC |
| Isolation | Channel-to-System Galvanic Isolation |
| Operating Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95% (Non-condensing) |
| Dimensions | 140 mm x 100 mm x 35 mm |
| Weight | 200 g (Approx. 0.2 kg) |
Engineering Advantages
-
High-Density Channel Consolidation: This module accommodates 32 digital inputs within a slim 140mm frame. This architecture allows engineers to double the I/O capacity of standard 16-channel racks, solving cabinet congestion issues and reducing the total number of required I/O bases in large-scale deployments.
-
Galvanic Isolation Protection: Integrated isolation circuitry shields the internal system logic from field-side electrical transients. This barrier prevents ground loops and ensures that localized field faults do not propagate to the central controller, maintaining system uptime during electrical disturbances.
-
Extreme Climate Performance: The MC-TDIA22 operates across a broad thermal range from -40°C to 70°C. This resilience permits installation in remote instrument houses and non-climate-controlled environments, eliminating the need for specialized enclosure heating or cooling.
-
Ultra-Lightweight Profile: Weighing only 200g, the module minimizes mechanical stress on the backplane connectors. This design prevents connector fatigue and signal intermittent issues in high-vibration applications like marine vessels or heavy machinery decks.
-
Low Power Logic Interface: Optimized for 24 VDC industrial standards, the module draws minimal current per point. This efficiency reduces the thermal footprint of the I/O rack, allowing for passive cooling and higher component density in restricted spaces.
FAQs
-
Can the MC-TDIA22 replace older 16-channel DI modules?
The MC-TDIA22 (51304431-175) provides higher density but requires a compatible 32-channel I/O base or Field Termination Assembly (FTA). Verify your current backplane part number to ensure the physical pins and software configuration support the 32-channel addressing.
-
How does this module handle field-side noise?
The module utilizes onboard filtering to debounce input signals and reject electromagnetic interference (EMI). This ensures that only legitimate state changes reach the controller, preventing false alarms caused by noisy electrical environments.
-
What is the recommended installation procedure for high-vibration areas?
Ensure the module seats firmly into the I/O base and engage all locking tabs. For high-vibration environments, we recommend utilizing a vibration-dampened marshalling cabinet and periodic inspections of the terminal connections on the associated FTA.
-
Is this a factory-original Honeywell component?
Yes. We supply this product as 100% Brand New original stock. Each unit arrives in its factory-sealed packaging with original serial numbers, ensuring full traceability and compliance with Honeywell’s high-performance reliability standards.
