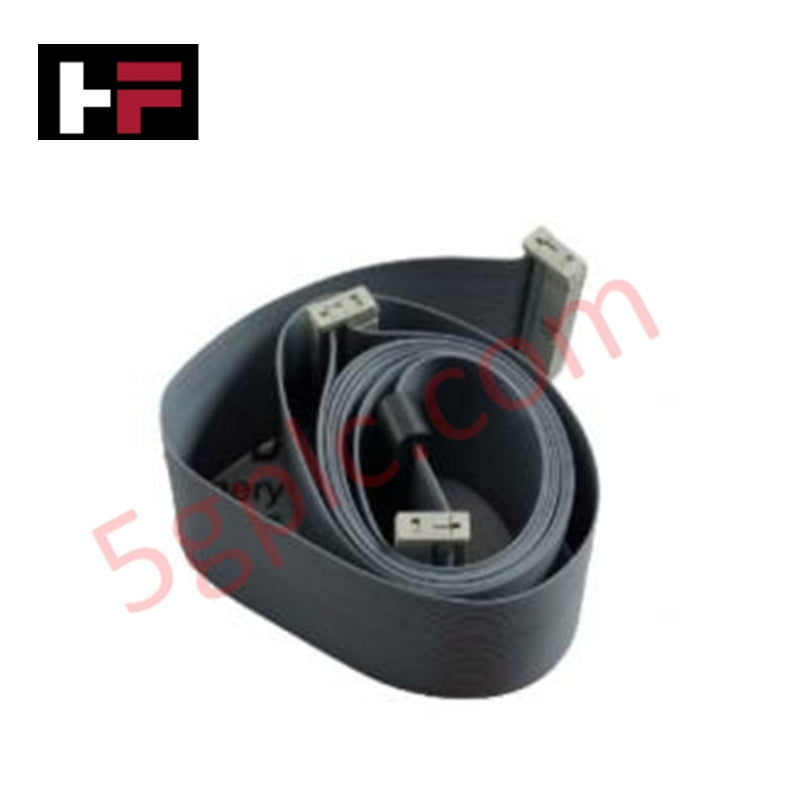

Honeywell FC-IOBUS-CPIO2 I/O Bus Extension Interface Module

Product Description

The FC-IOBUS-CPIO2 (Part No. FC-IOBUS-CPIO2) functions as a critical communication bridge within the Honeywell Safety Manager architecture. This I/O Bus Extension Module is engineered to extend the reach of the proprietary safety bus, allowing for the integration of remote I/O chassis while maintaining high-speed, deterministic data exchange. It facilitates the transparent flow of data between the central controller and distributed field modules, ensuring that safety-critical timing requirements are met across extended distances.

Designed with industrial-grade EMI/RFI shielding, the FC-IOBUS-CPIO2 utilizes ferrite-enhanced signal processing to maintain communication integrity in environments with high electrical noise. It supports flexible mounting configurations and wide-range temperature operation, making it suitable for both control room and remote cabinet installations.

Technical Specifications

• Function: I/O Bus Extension and Signal Bridging

• Supply Voltage: 24V DC (±10% tolerance)

• Channel Configuration: 2 Configurable channels for versatile signal handling

• Supported Inputs: Analog (4-20mA), Digital, and Thermocouple via interface

• Analog Output Range: 0 to 21 mA (supporting over-range diagnostics)

• Communication Interface: RS485 physical layer; supports I/O Bus-CX

• Protocol Support: Modbus and Ethernet/IP (utilizing external converters)

• Sampling Rate: 100 kHz high-speed data acquisition capability

• Power Dissipation: 3.5 W maximum

• Thermal Range: -40°C to +85°C

• Mechanical Construction: 120 mm x 100 mm x 60 mm

• Weight: 3.7 kg

• Installation: Support for standard 35mm DIN rail or direct panel mounting

Typical Application Scenarios

The FC-IOBUS-CPIO2 is primarily utilized in large-scale Distributed Control Systems (DCS) and Safety Instrumented Systems (SIS). It is the preferred solution for interconnecting safety cabinets located in different process areas, such as connecting an Emergency Shutdown (ESD) main controller to remote fire and gas detection racks.

Engineering FAQ

• How does the FC-IOBUS-CPIO2 handle electrical interference?

• The module is equipped with ferrite-core enhanced filtering, which provides superior suppression of high-frequency electromagnetic interference (EMI) and radio frequency interference (RFI) common in heavy industrial switchgear environments.

• Is this module hot-swappable?

• While the I/O bus allows for modularity, it is recommended to follow Honeywell Safety Manager hot-swap procedures to ensure the safety loop remains intact during maintenance.
