Product Details
Product Overview

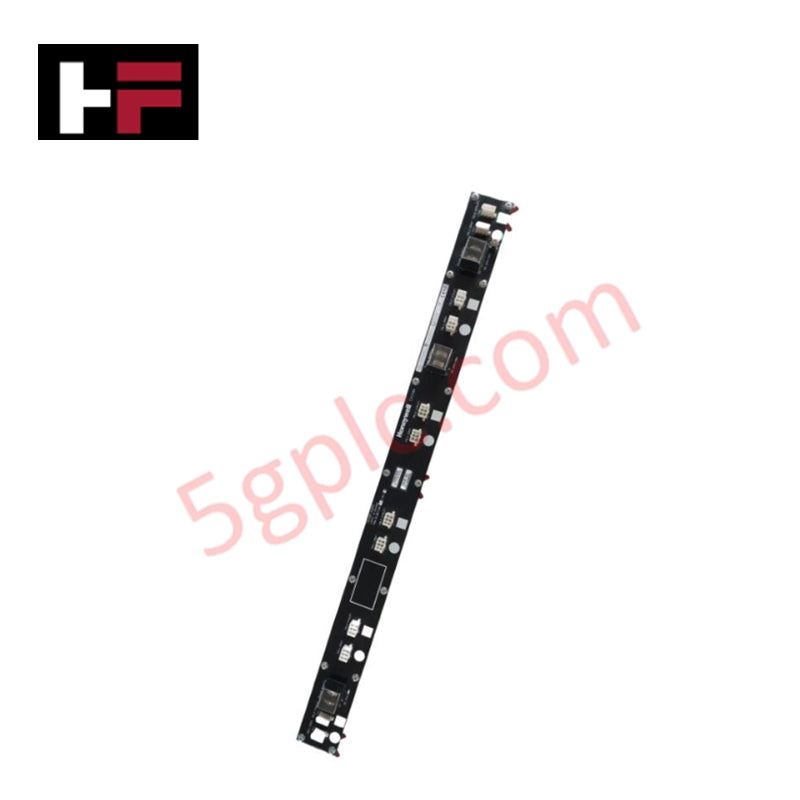

The 8C-SHEDA1 (P/N 51307186-175) serves as a critical interface component within the Honeywell Experion PKS (Process Knowledge System) C300 infrastructure. This Series 8 Header Board is engineered to facilitate high-speed, reliable data routing and connectivity between I/O modules and the system backplane. Designed for industrial environments demanding high availability, it minimizes signal interference and ensures consistent communication across the automation network.
Technical Specifications
The following data represents the electrical and physical parameters for the 8C-SHEDA1 (51307186-175).
-
Input Voltage: 24V DC (nominal system power)
-
Power Dissipation: 5W
-
Interface Protocol: Ethernet-based proprietary Series 8 communication
-
Form Factor: Compact Series 8 module footprint
-
Physical Dimensions: 120mm x 60mm x 15mm
-
Net Weight: 0.03kg
-
Operating Temperature: -20°C to +70°C
-
Storage Temperature: -40°C to +85°C
-
Relative Humidity: 5% to 95% non-condensing
-
Coating: Conformal coating options available for harsh environment protection
Hardware Compatibility and Application
The 8C-SHEDA1 (51307186-175) is predominantly utilized in Honeywell C300 Controller configurations. It acts as the physical and electrical bridge, ensuring that the Series 8 I/O blocks maintain integrity during high-density data transmission. Its architecture is optimized for:
-
Distributed Control Systems (DCS) integration
-
High-speed process logic execution
-
Real-time data acquisition in oil, gas, and chemical processing
Frequently Asked Questions
Does the 8C-SHEDA1 support redundant configurations?Yes, when installed within the appropriate Experion PKS chassis, this header board supports the redundancy protocols required for mission-critical industrial applications to prevent single points of failure.
What is the primary function of the 51307186-175 in a Series 8 environment?It provides the necessary termination and connection points for the I/O modules to communicate with the C300 controller via the Ethernet-enabled backplane, ensuring low-latency signal processing.
