Product Details

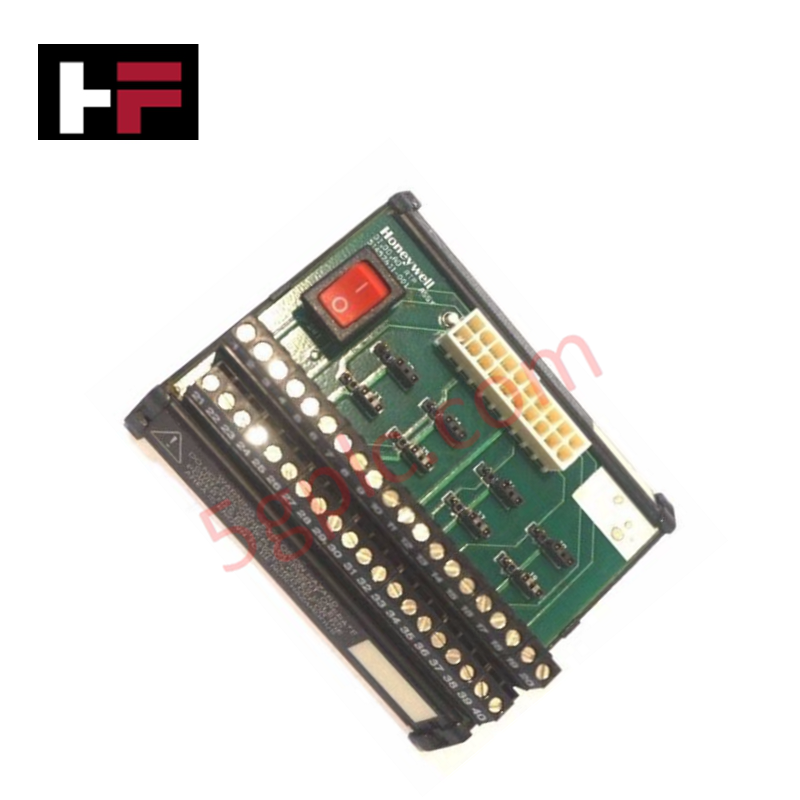

Configured for field signal termination and switching loop isolation in Honeywell HC900 networks, the Honeywell 900RTS-0001 (900RTS-0001 Remote Terminal Panel Module) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 900RTS-0001 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 0.18 kg (0.40 lbs) |
| Dimensions | Standard DIN-rail / Panel Mount Assembly |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Passive field termination interface |
| Maximum Voltage Rating | 250 VAC |
| Supported Signal Types | DO, DI, AO |
| System Compatibility | Honeywell HC900 Controller Platform |
Channel-to-Channel Isolation and DCS Field Interface
The 900RTS-0001 remote terminal panel module handles field wiring connections for discrete inputs (DI), discrete outputs (DO), and analog outputs (AO). Designed to operate at voltage levels up to 250 VAC, the panel assembly maintains robust channel-to-channel isolation between individual field circuits and controller backplane hardware. This galvanic isolation prevents common-mode noise transfer, protects sensitive 4-20 mA HART loop protocol lines, and suppresses inductive kickback transients originating from field-side switching devices.
Frequently Asked Questions
Q: What is the maximum AC operating voltage rating for the 900RTS-0001 terminal assembly?
A: The module terminal block assembly is rated for field contact isolation and signal routing up to 250 VAC.
Q: Which input and output signal channels are supported by the 900RTS-0001 panel?
A: The unit supports field wiring terminations for Digital Input (DI), Digital Output (DO), and Analog Output (AO) channels.
Q: Does the 900RTS-0001 module require a direct backplane slot insertion?
A: No, the remote terminal panel is mounted externally on standard DIN rail or panel sub-plates and connects to rack I/O modules via dedicated interconnect cables.
Field Installation Guidelines
- Mount the 900RTS-0001 assembly securely on standard DIN rail inside the control enclosure prior to wiring.
- De-energize all field circuits and power sources before connecting conductors to the terminal screw blocks.
- Ensure high-voltage AC lines (up to 250 VAC) are routed separately from low-voltage analog signal wiring inside wire ducts.
- Tighten all field terminal screws to the manufacturer-recommended torque to maintain low contact resistance.
- Connect cable shield drain wires directly to the primary panel earth ground bus bar to eliminate ground loop noise.
