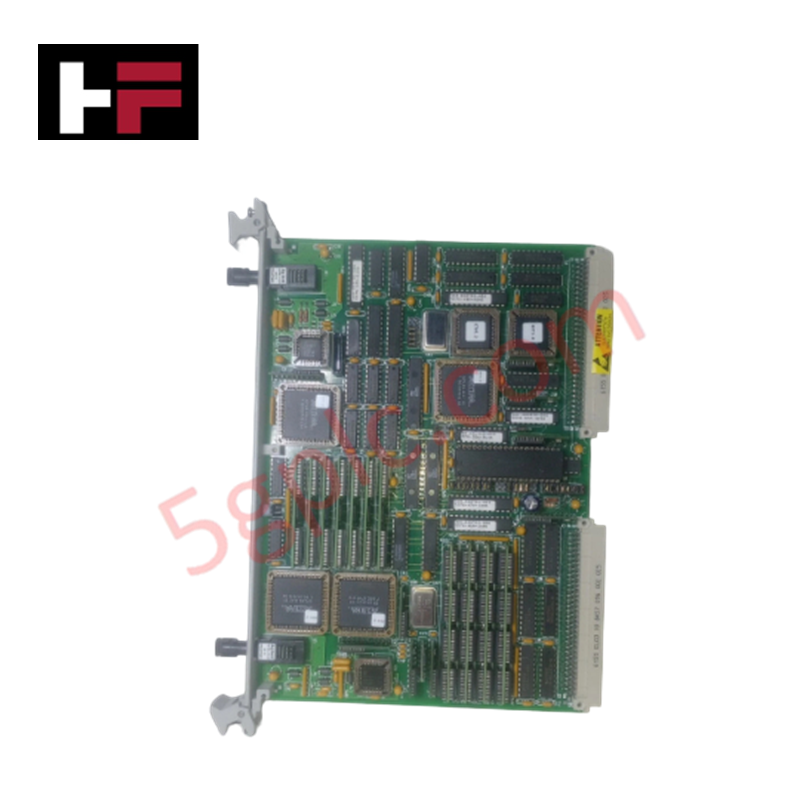

GE VMIVME5576 332-015576-010 Reflective Memory Module

The GE VMIVME5576 332-015576-010 serves as the primary VMIVME5576 Reflective Memory Module utilized to execute high-speed deterministic data replication across multidrop fiberoptic network platforms.

Hardware Specifications

Firmware Flash Compatibility and Deterministic Memory Mapping

The hardware maps internal data structures autonomously via hardware registers, completely eliminating processor overhead during network operation. Data blocks committed to local SRAM are automatically broadcast across the fiber optic ring via a 170 Mbaud link to synchronize all remote nodes. Maintaining uniform system register states relies heavily on exact firmware flash compatibility across the network controllers, which prevents packet alignment failures and mitigates timing anomalies on the parallel bus interface.

Frequently Asked Questions

Q: Does the VMIVME5576 332-015576-010 support hot-swapping or live insertion?

A: No. The parallel backplane interface of this VME card lacks staggered power-pin spacing or specialized pre-charge circuits. Inserting or pulling the card while the rack is energized will introduce critical bus faults and can damage local logical transceivers.

Q: How does the network manage instantaneous peaks in data throughput?

A: The board incorporates integrated Transmit and Receive FIFOs that buffer data peaks. In addition to this layout, the unit provides three-level, user-definable interrupts to secure cross-node timing alignment and data-following sequences.

Field Installation Guidelines

• Chassis Slot Alignment: Insert the VME module into the designated chassis slot using the built-in guide rails. Apply uniform pressure until the backplane connectors seat firmly, then secure the front-panel screws.
• Fiber Optic Connection Constraints: Ensure clean mating surfaces for the ST/PC optical termination. Clean the 62.5 um multimode fiber ends before insertion, and maintain the minimum specified bend radius to avoid optical attenuation.
• Static Charge Management: Always utilize a grounded ESD wrist strap when handling the card assembly to prevent destructive static discharge to the onboard SRAM and FIFO integrated circuits.
