Product Details

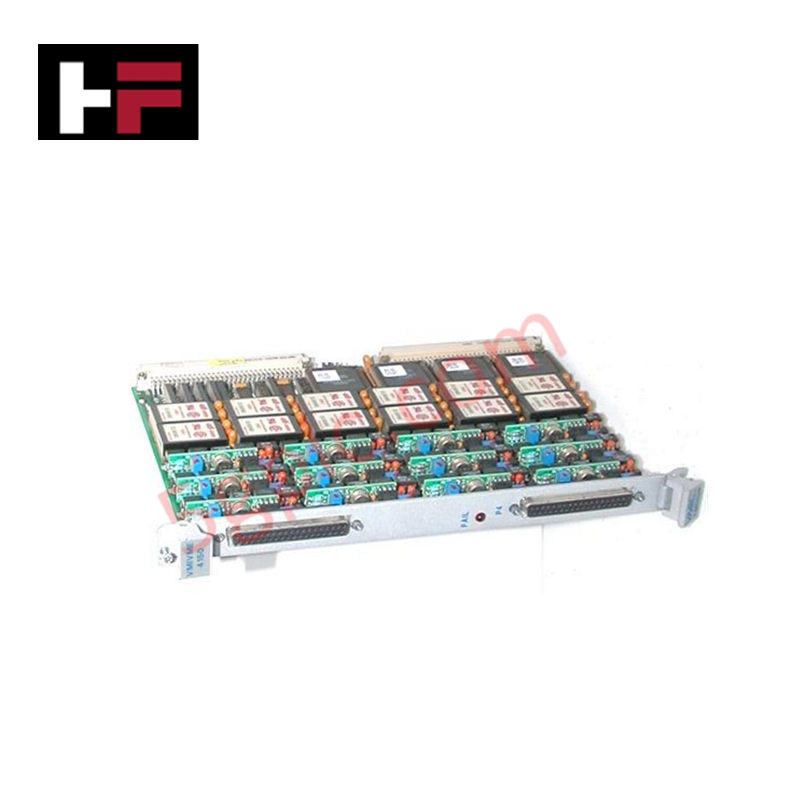

The GE VMIVME-4150 332-004150-201, also cataloged as the VMIVME4150 Analog Output PLC Board, operates as a dedicated hardware component for digital-to-analog signal conversion within VMEbus architecture platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | VMIVME-4150 332-004150-201 |
| Brand | GE Fanuc |
| Origin | United States |
| Weight | Standard Single Eurocard Weight |
| Dimensions | Single Eurocard Form Factor with Front Panel |
| Operating Temp | 0 - 60 deg C |
| Power Consumption | VMEbus Backplane Rails Dependent |
| Channels | 12 |
| Output Voltage Range | -10 V to +10 V |
| Accuracy | +/-0.1% of full scale |
| Isolation | 2 kV continuous isolation |
| Noise | <1 mV rms |
| Output Resolution | 12 bits |
| D/A Converter | Monolithic 12-bit D/A |
| Update Rate | 100 kHz |
I/O Density Scaling and Backplane Bus Communications
The hardware interfaces 12 high-precision analog channels across a single Eurocard slot to optimize I/O density scaling. The onboard architecture utilizes monolithic 12-bit digital-to-analog converters running at a 100 kHz update rate per channel to drive voltage loops with minimal propagation delay. To protect the backplane processing logic against common-mode electrical faults, the output circuitry incorporates 2 kV continuous electrical galvanic isolation, maintaining loop performance even under elevated noise conditions (<1 mV rms).
Frequently Asked Questions
Q: Does the VMIVME4150 board accommodate live insertion or extraction while the chassis is powered?
A: No. The standard parallel mechanical pin arrangement of the VMEbus interface on this module does not integrate staggered grounding lengths required for live swap operations. Removing or inserting the card under power will trigger bus faults or damage local component logic layers.
Q: How are manual trim modifications or hardware potentiometers bypassed during calibration?
A: The module relies on software-selectable output ranges and embedded calibration circuitry. Drift adjustments are addressed programmatically over the backplane bus, completely eliminating the need for component manual trimming.
Field Installation Guidelines
- Chassis Slot Placement: Align the PCB edges with the VME chassis card guides. Push smoothly until the pin headers mesh completely with the backplane connectors, then apply the front panel latching screws.
- Analog Cabling Isolation: Route the -10 V to +10 V signal paths through dedicated, grounded metallic conduits separate from high-current AC motor leads or switching control relays.
- Shield Grounding Framework: Fasten external twisted-pair instrument cable shields to a unified earth grounding point located strictly at the control cabinet entry bulkhead to eliminate circulating ground currents.
