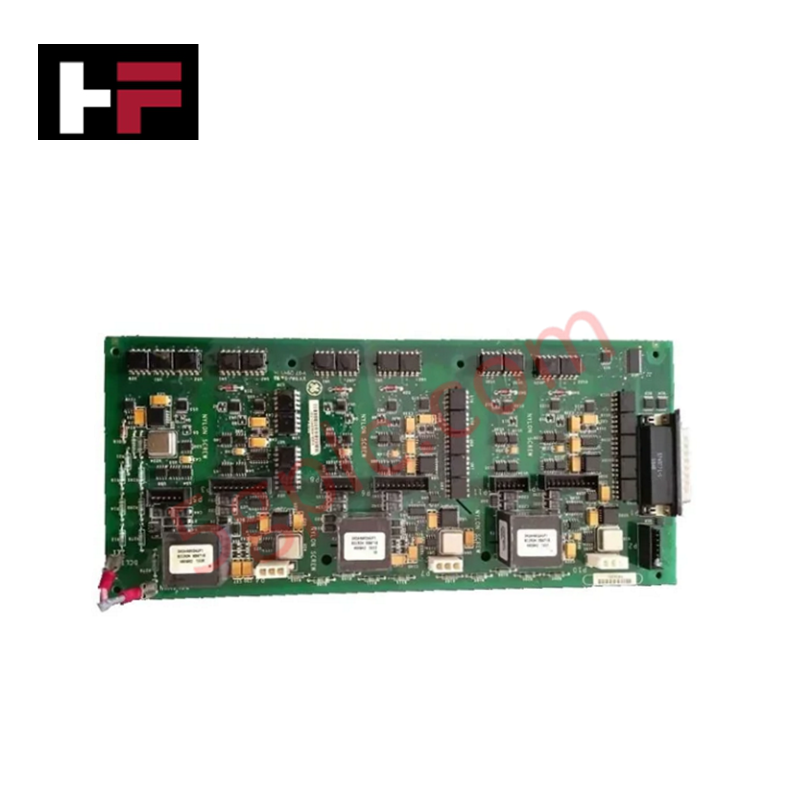

GE IS210AEBIH2BE Mark VI Bridge Interface Board

The GE IS210AEBIH2BE, also cataloged as the IS210AEBIH2 Alternative Energy Bridge Interface PCB, operates as a dedicated hardware component for signal processing and power conversion coordination within Mark VI control platforms.

Hardware Specifications

Backplane Bus Communication & Deterministic Network Integrity

The IS210AEBIH2BE handles high-speed signal routing between power conversion electronics and central control logic across the Mark VI system architecture. Powered by an onboard ARM Cortex-A9 processor, the module maintains determinism during data handling cycles, leveraging 1 GB DDR3 RAM for active memory buffers and 8 GB eMMC flash storage for firmware and parameter retention.

The module supports I/O density scaling by bridging discrete and analog signal paths into backplane frame cycles. Dynamic backplane bus communication velocity allows instantaneous telemetry feedback and command distribution, preventing latency buildup across internal control loops.

Frequently Asked Questions

Q: What processor architecture and memory footprint are integrated into the IS210AEBIH2BE card?

A: The card features an embedded ARM Cortex-A9 processor complemented by 1 GB DDR3 RAM and 8 GB eMMC flash storage for real-time signal processing and firmware execution.

Q: How does the physical construction protect against harsh site conditions?

A: The PCB is manufactured with a factory-applied conformal coating to prevent moisture, dust accumulation, and atmospheric contaminants from causing electrical shorting or signal degradation.

Q: Can the IS210AEBIH2BE board be installed while the system rack is energized?

A: No. System power must be fully isolated before inserting or removing the module. Live insertion risks pin arcing, hardware damage, and signal disruption across connected I/O buses.

Field Installation Guidelines

1. Power Isolation: De-energize all primary AC and DC power supplies feeding the controller enclosure before handling the circuit board.
2. ESD Protection: Wear an ESD wrist strap connected to a verified chassis ground point to avoid static discharge damage to onboard CMOS circuitry.
3. Mechanical Alignment: Slide the PCB into its assigned slot along the card guide tracks until the edge connectors align with the backplane receivers.
4. Connector Fastening: Seat the card firmly into the backplane, then hand-tighten all top and bottom retaining screws to secure mechanical locking and chassis ground connection.
5. Wiring and Cable Shielding: Route digital and analog I/O wiring separately from power lines. Terminate all cable shield drain wires at the designated ground bar to prevent noise coupling.
